Diagnosis Procedure
DIAGNOSIS PROCEDURE CHART
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK RUBBER TUBE
OK or NG |
GO TO 2. | Clean rubber tube using an air blower. |
| 2 | CHECK EVAP CANISTER VENT CONTROL VALVE Refer to [Component Inspection ]. OK or NG |
GO TO 3. | Replace EVAP canister vent control valve. Refer to EVAP CANISTER: REMOVAL AND INSTALLATION . |
| 3 | CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Yes or No |
GO TO 4. | GO TO 6. |

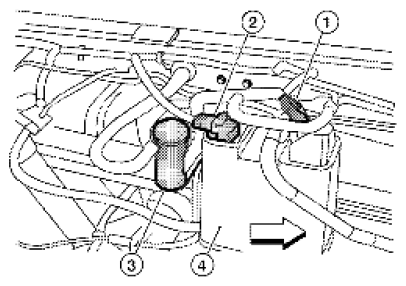

| 4 | CHECK EVAP CANISTER Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached. The weight should be less than 2.0 kg (4.4 lb). OK or NG |
GO TO 6. | GO TO 5. |
| 5 | DETECT MALFUNCTIONING PART Check the following.
|
Repair hose or replace EVAP canister. | |
| 6 | CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
OK or NG |
GO TO 7. | Replace EVAP control system pressure sensor. Refer to EVAP CANISTER: REMOVAL AND INSTALLATION . |
| 7 | CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR Refer to [P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR ]. OK or NG |
GO TO 8. | Replace EVAP control system pressure sensor. Refer to EVAP CANISTER: REMOVAL AND INSTALLATION |
| 8 | CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ] |
INSPECTION END |
