Valve Oil Seal: Removal and Installation: Removal
- Remove fan shroud (lower). Refer to [RADIATOR: EXPLODED VIEW ]
- Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping into cylinder.
- Remove camshaft relating to valve oil seal to be removed. Refer to CAMSHAFT: REMOVAL AND INSTALLATION .
- Remove valve lifters. Refer to CAMSHAFT: REMOVAL AND INSTALLATION .
- Remove valve collet, valve spring retainer and valve spring using Tool.
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:- When working, be careful not to damage valve lifter holes.
- Do not remove valve spring seat from valve spring.
Tool numbers: KV10116200 (J-26336-A)
: KV10115900 (J-26336-20)

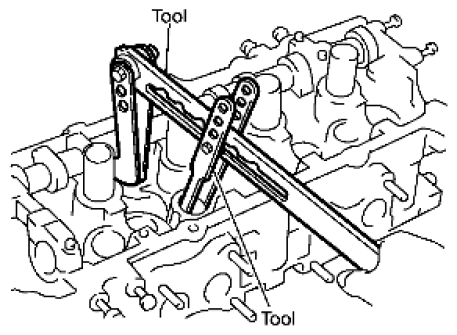

- Compress valve spring using Tool. Remove valve collet with magnetic hand.

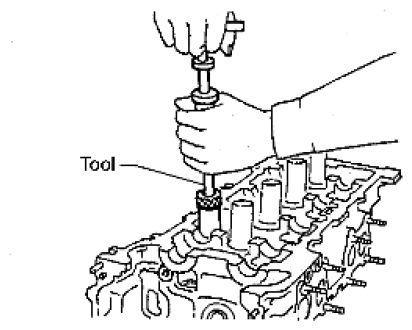

- Remove valve oil seal using Tool.
Tool numbers: KV10107902 (J-38959)
