Valve Lifter Outer Diameter

Measure the outer diameter of valve lifter with a micrometer.

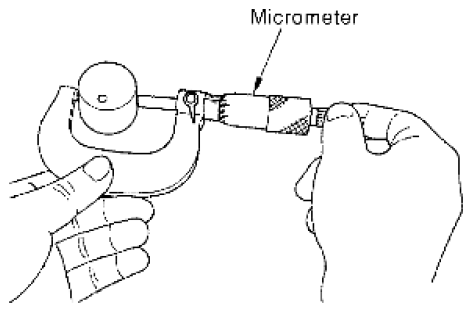

Fig 1: Measuring Outer Diameter Of Valve Lifter Using Micrometer
Courtesy of SUZUKI OF AMERICA CORP.

Standard: 33.965 - 33.980 mm (1.3372 - 1.3378 in)
