Valve Lifter Hole Diameter

Measure the diameter of valve lifter hole of cylinder head with an inside micrometer.

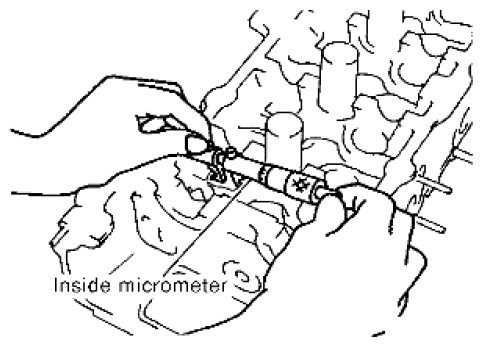

Fig 1: Measuring Diameter Of Valve Lifter Hole Of Cylinder Head Using Inside Micrometer

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 34.000 - 34.021 mm (1.3386 - 1.3394 in)
