Camshaft Bracket Inner Diameter
- Tighten camshaft bracket bolts with the specified torque. Refer to [CAMSHAFT: REMOVAL AND INSTALLATION ].

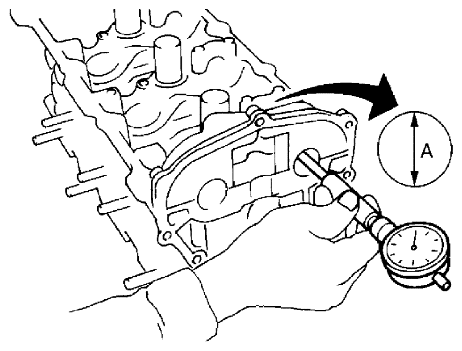

- Measure inner diameter "A" of camshaft bracket with a bore gauge.
Courtesy of SUZUKI OF AMERICA CORP.
Standard:
No. 1: 28.000 - 28.021 mm (1.1024 - 1.1032 in)
No. 2, 3, 4, 5: 23.500 - 23.521 mm (0.9252 - 0.9260 in)
