Camshaft Cam Height

Measure the camshaft cam height with a micrometer.

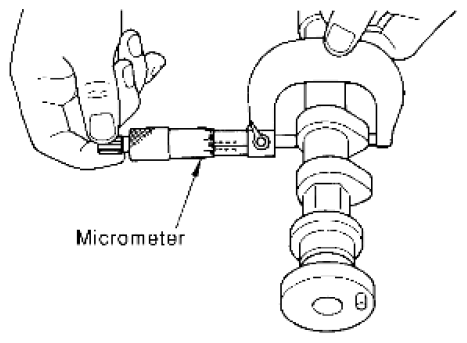

Fig 1: Measuring Camshaft Cam Height Using Micrometer
Courtesy of SUZUKI OF AMERICA CORP.

Standard:

Intake: 45.015 - 45.205 mm (1.7722 - 1.7797 in)

Exhaust: 43.975 - 44.165 mm (1.7313 - 1.7388 in)

Cam wear limit: 0.2 mm (0.008 in)

If wear is beyond the limit, replace camshaft.
