Thermostat Removal and Installation: Installation: Thermostat

Install thermostat by making rubber O-ring (1) groove fit to thermostat flange (A) around the whole circumference.

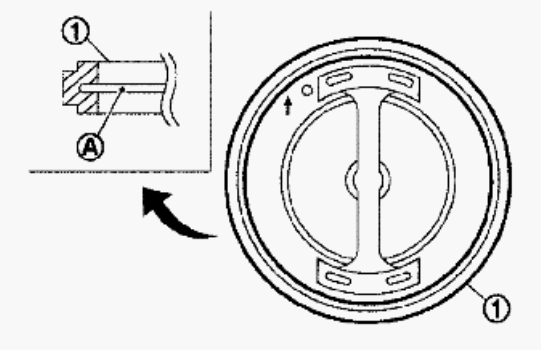

Fig 1: Installing Thermostat With Making Rubber Ring Groove Fit To Thermostat Flange With Whole Circumference
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not reuse O-ring.
Install thermostat with jiggle valve (A) facing upwards. The position deviation may be within the range of 20° (b).

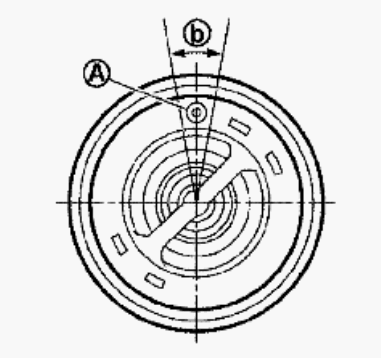

Fig 2: Installing Thermostat With Jiggle Valve Facing Upwards
Courtesy of SUZUKI OF AMERICA CORP.
