EVAP Canister Vent Control Valve: Removal

  1. Disconnect the EVAP control pressure sensor connector.
  2. Disconnect the EVAP canister purge hose.
  3. Remove the EVAP canister retaining bolt.
  4. Disconnect the fuel tank EVAP breather hose.
  5. Disconnect the EVAP vent control valve connector.
  6. Disconnect the EVAP vent control valve hose.
  7. Reposition the EVAP canister.
  8. Turn EVAP canister vent control valve counterclockwise.

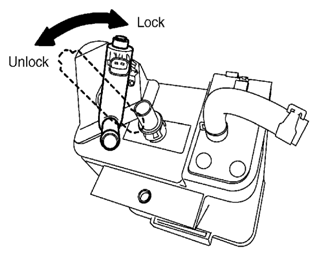

    Fig 1: Turning EVAP Canister Vent Control Valve Counterclockwise
    G06444429Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove the EVAP canister vent control valve and O-ring.
    CAUTION: Do not reuse O-ring.
