Valve Oil Seal: Removal and Installation: Installation

  1. Apply new engine oil to valve oil seal joint surface and seal lip.
  2. Press in valve oil seal to the height (H) as shown using Tool.

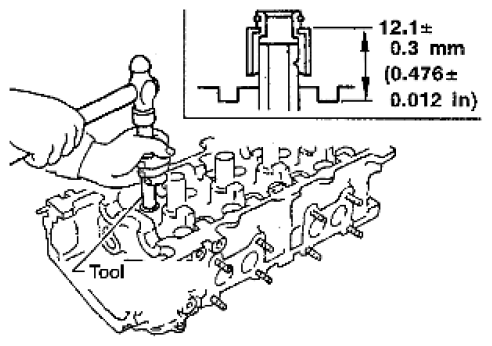

    Fig 1: Pressing In Valve Oil Seal
    G06440751Courtesy of SUZUKI OF AMERICA CORP.

    Tool numbers: KV10115600 (J-38958)

  3. Installation of the remaining components is in the reverse order of removal.
