Main Bearing Selection Table (No. 2 and 4 journals)

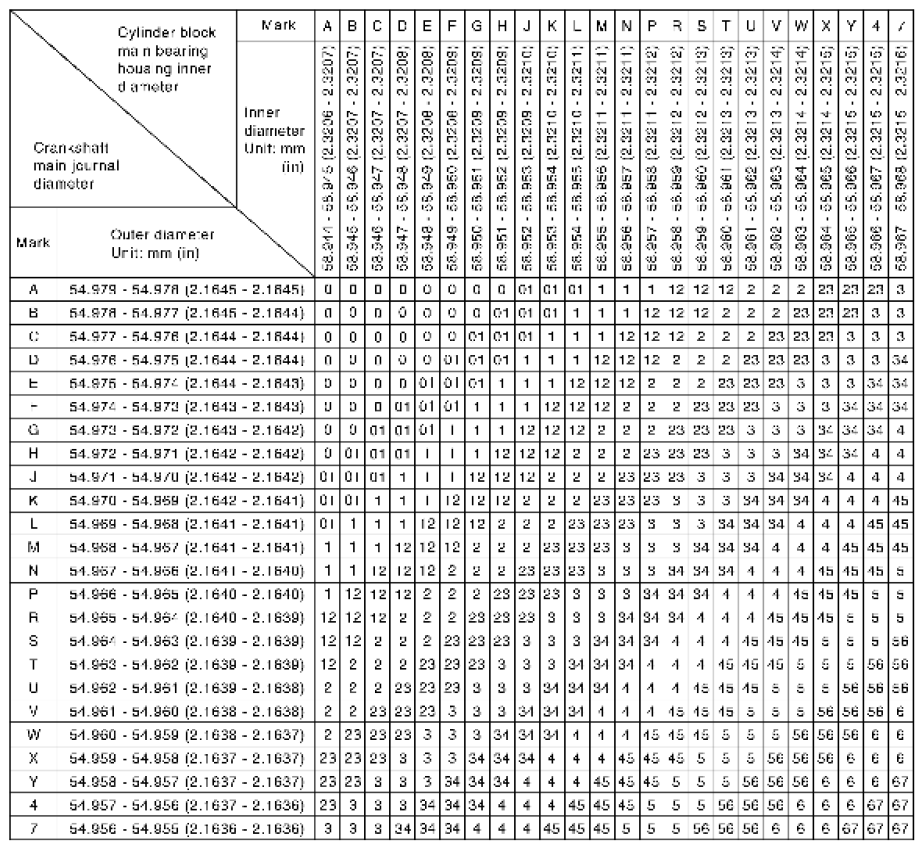

Fig 1: Main Bearing Selection Reference Chart (No. 2 And 4 Journals)

G06440858

Courtesy of SUZUKI OF AMERICA CORP.
