Main Bearing Selection Table (No. 1, 3 and 5 journals)

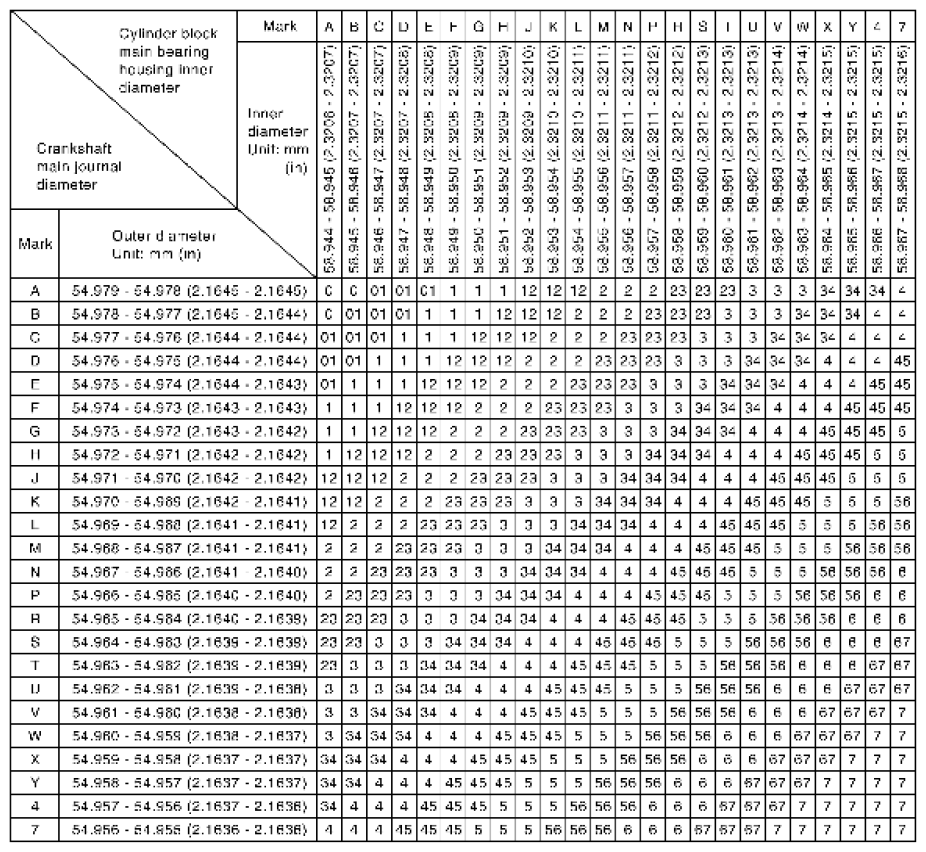

Fig 1: Main Bearing Selection Reference Chart (No. 1, 3 And 5 Journals)

G06440857

Courtesy of SUZUKI OF AMERICA CORP.
