Front Oil Seal: Removal and Installation: Removal

  1. Remove engine under cover. Refer to [FRONT BUMPER: REMOVAL AND INSTALLATION ].
  2. Remove fan shroud (lower). Refer to [RADIATOR: EXPLODED VIEW ]
  3. Remove cooing fan. Refer to [COOLING FAN: REMOVAL AND INSTALLATION (CRANKSHAFT DRIVEN TYPE) ]
  4. Remove drive belt. Refer to [DRIVE BELTS: REMOVAL AND INSTALLATION ].
  5. Remove crankshaft pulley with the following procedure:

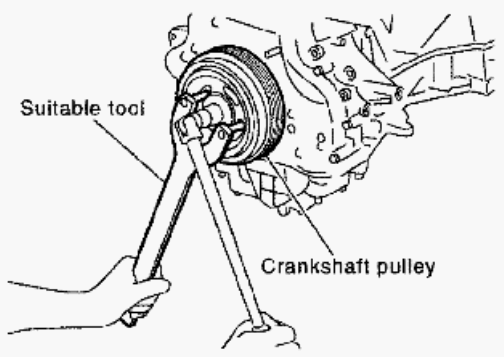

    Fig 1: Removing Crankshaft Pulley
    G00512547Courtesy of SUZUKI OF AMERICA CORP.
    1. Hold the crankshaft pulley with a suitable tool, then loosen the crankshaft pulley bolt, and pull the pulley out about 10 mm (0.39 in). Remove the crankshaft pulley bolt.
    2. Attach a pulley puller in the M6 (0.24 in diameter) thread hole on crankshaft pulley, and remove crankshaft pulley.

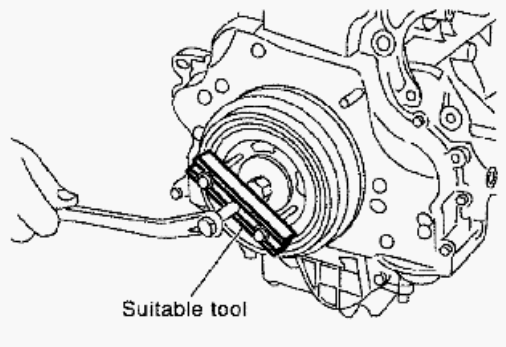

      Fig 2: Removing Crankshaft Pulley Using Pulley Puller
      G00512548Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove front oil seal using a suitable tool.

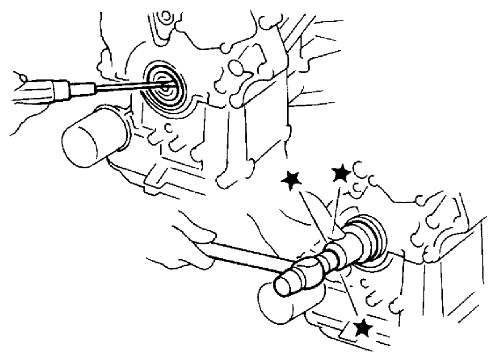

    Fig 3: Removing Front Oil Seal Using Suitable Tool
    G06440752Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Be careful not to damage front cover and crankshaft.
