Front Oil Seal: Removal and Installation: Installation

Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.
Install front oil seal.
- Install front oil seal so that each seal lip is oriented as shown.

  Fig 1: Identifying Seal Lip Orientation For Installing Front Oil Seal
  Courtesy of SUZUKI OF AMERICA CORP.
- Press-fit front oil seal until it is flush with front end surface of front cover using suitable tool.

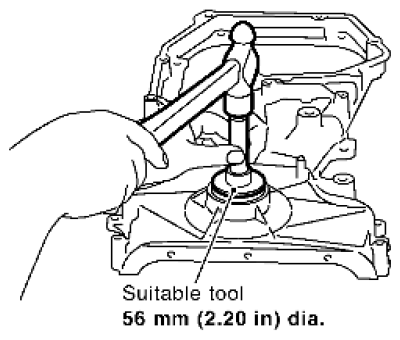

  Fig 2: Installing Front Oil Seal
  Courtesy of SUZUKI OF AMERICA CORP.
  CAUTION:
  - Be careful not to damage front cover and crankshaft.
  - Press-fit straight and avoid causing burrs or tilting oil seal.
Tighten crankshaft pulley bolt.
- Secure crankshaft pulley using suitable tool, and tighten crankshaft pulley bolt.
1. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
2. Tighten crankshaft pulley bolt.
  : 42.1 N.m (4.3 kg-m, 31 ft-lb)
3. Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.

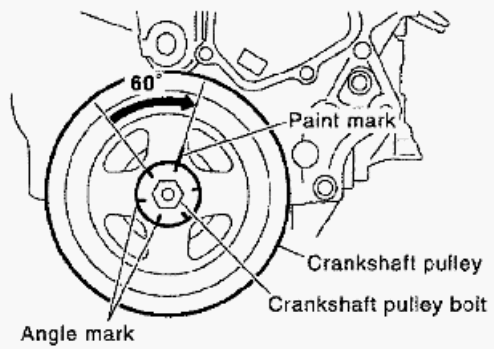

  Fig 3: Identifying Paint Mark On Crankshaft Pulley
  Courtesy of SUZUKI OF AMERICA CORP.
4. Turn another 60° degrees clockwise (angle tightening).
  - Check the tightening angle with movement of one angle mark.
Installation is in the reverse order of removal after this step.
