Piston Skirt Diameter

Measure the outer diameter of piston skirt with a micrometer.

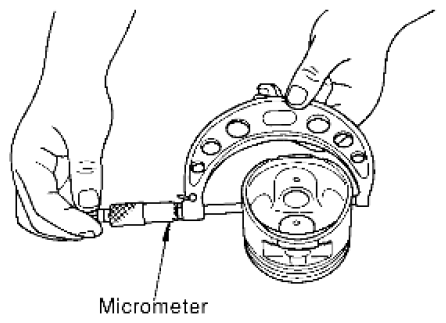

Fig 1: Measuring Outer Diameter Of Piston Skirt
G06440835Courtesy of SUZUKI OF AMERICA CORP.

Measure point

: Distance from the top 42.98 mm (1.692 in)

Standard

: 88.990 - 89.010 mm (3.5035 - 3.5043 in)
