Drive Belts: Removal and Installation: Removal

  1. Install Tool on auto tensioner pulley bolt and move in the direction of arrow (loosening direction of tensioner).

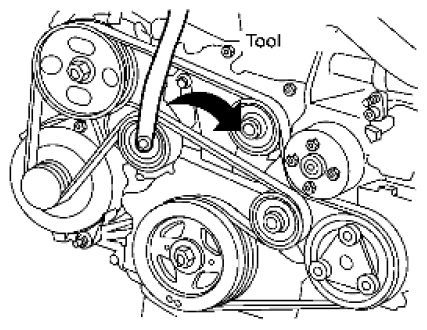

    Fig 1: Moving Tool On Auto Tensioner Pulley Bolt
    G06440673Courtesy of SUZUKI OF AMERICA CORP.

    Tool number: - (J-46535)

    WARNING:
    • Avoid placing hand in a location where pinching may occur if the holding tool accidentally comes off.
    CAUTION:
    • Do not loosen the auto-tensioner pulley bolt. (Do not turn it counterclockwise.) If turned counterclockwise, the complete auto-tensioner must be replaced as a unit, including pulley.
  2. Remove drive belt.
