Removal Of Liquid Gasket Sealing

After removing nuts and bolts, separate the mating surface and remove old liquid gasket sealing using Tool.

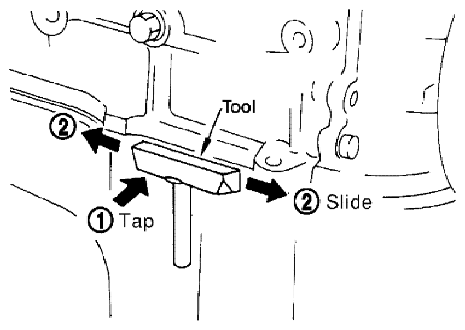

Fig 1: Removing Old Liquid Gasket Sealing Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV10111100 (J-37228)

CAUTION: Be careful not to damage the mating surfaces.
Tap the seal cutter to insert it (1).
In areas where the Tool is difficult to use, lightly tap to slide it (2).
