Illumination: Wiring Diagram [with Power Door Locks]

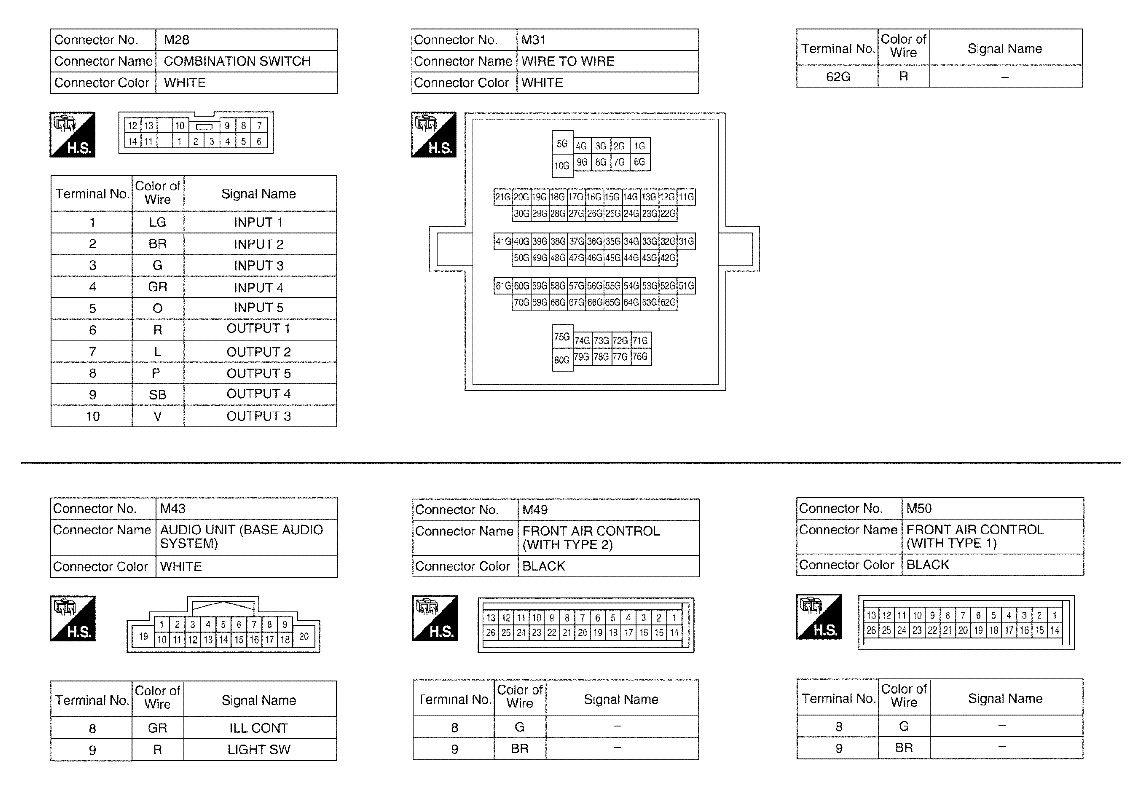

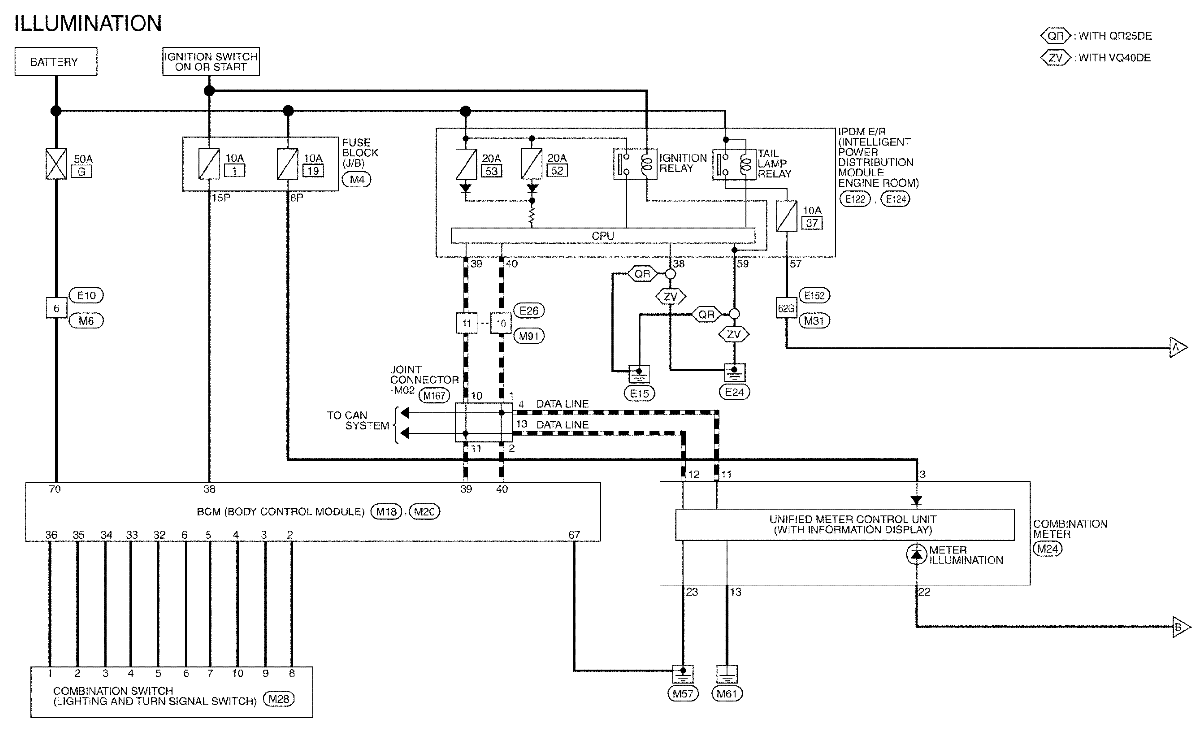

Fig 1: Illumination - Wiring Diagram [With Power Door Locks] (1 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

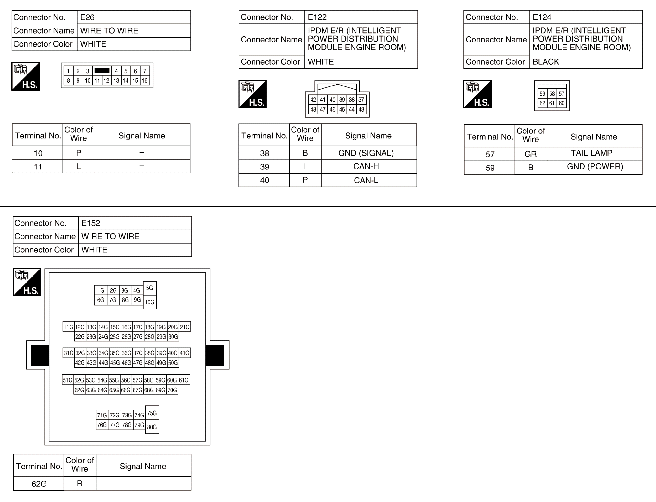

Fig 2: Illumination - Wiring Diagram [With Power Door Locks] (2 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

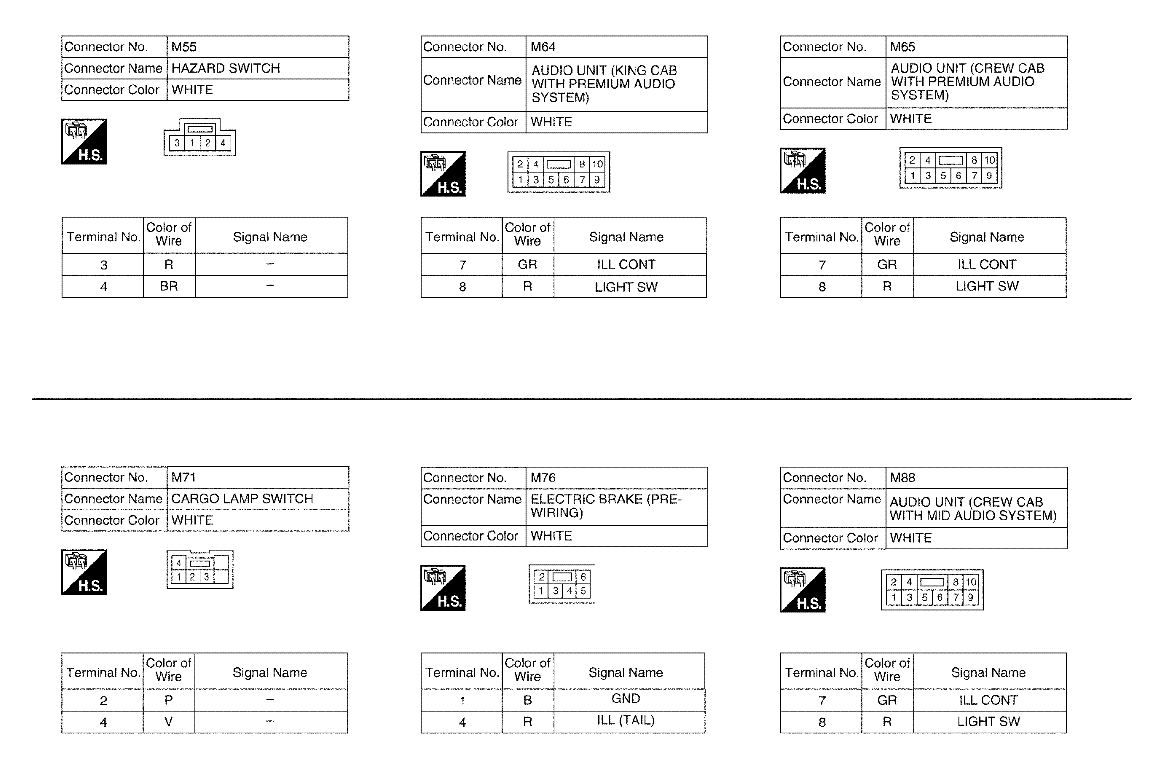

Fig 3: Illumination - Wiring Diagram [With Power Door Locks] (3 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

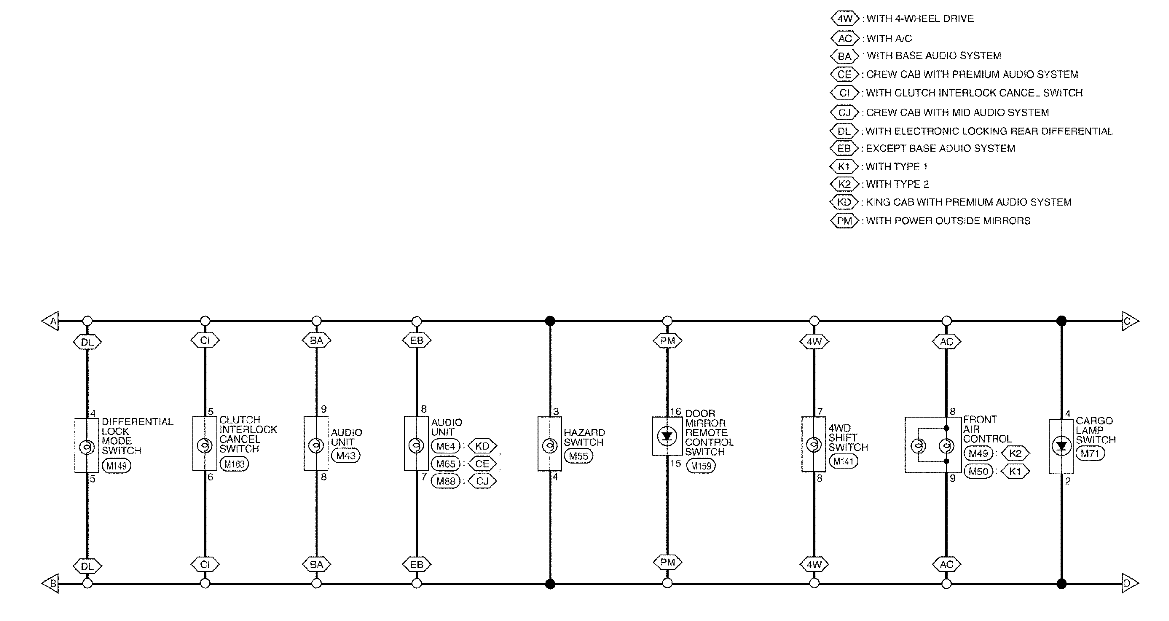

Fig 4: Illumination - Wiring Diagram [With Power Door Locks] (4 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

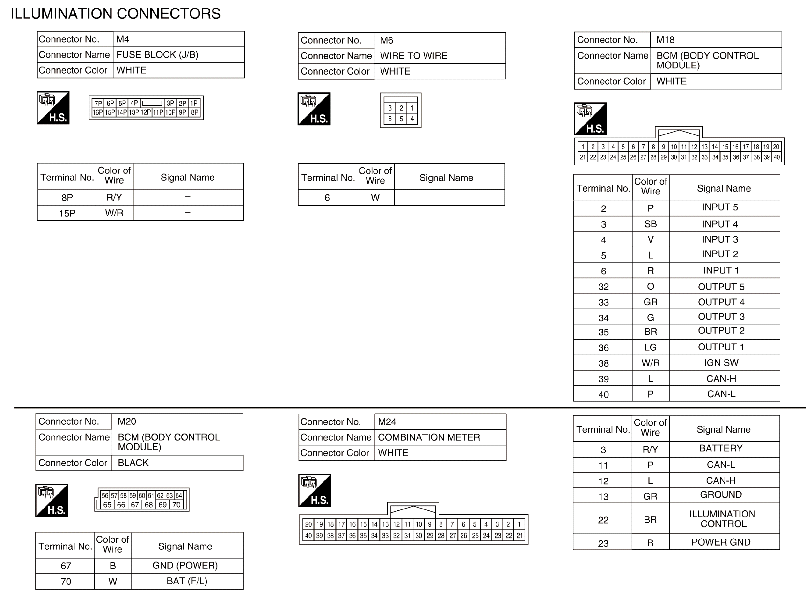

Fig 5: Illumination - Wiring Diagram [With Power Door Locks] (5 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

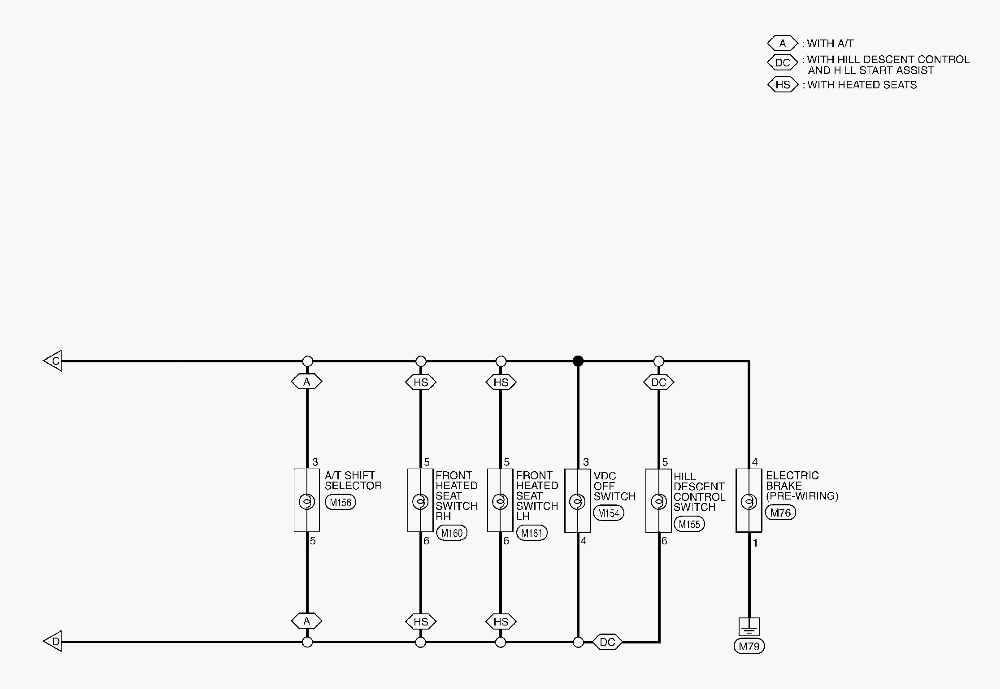

Fig 6: Illumination - Wiring Diagram [With Power Door Locks] (6 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

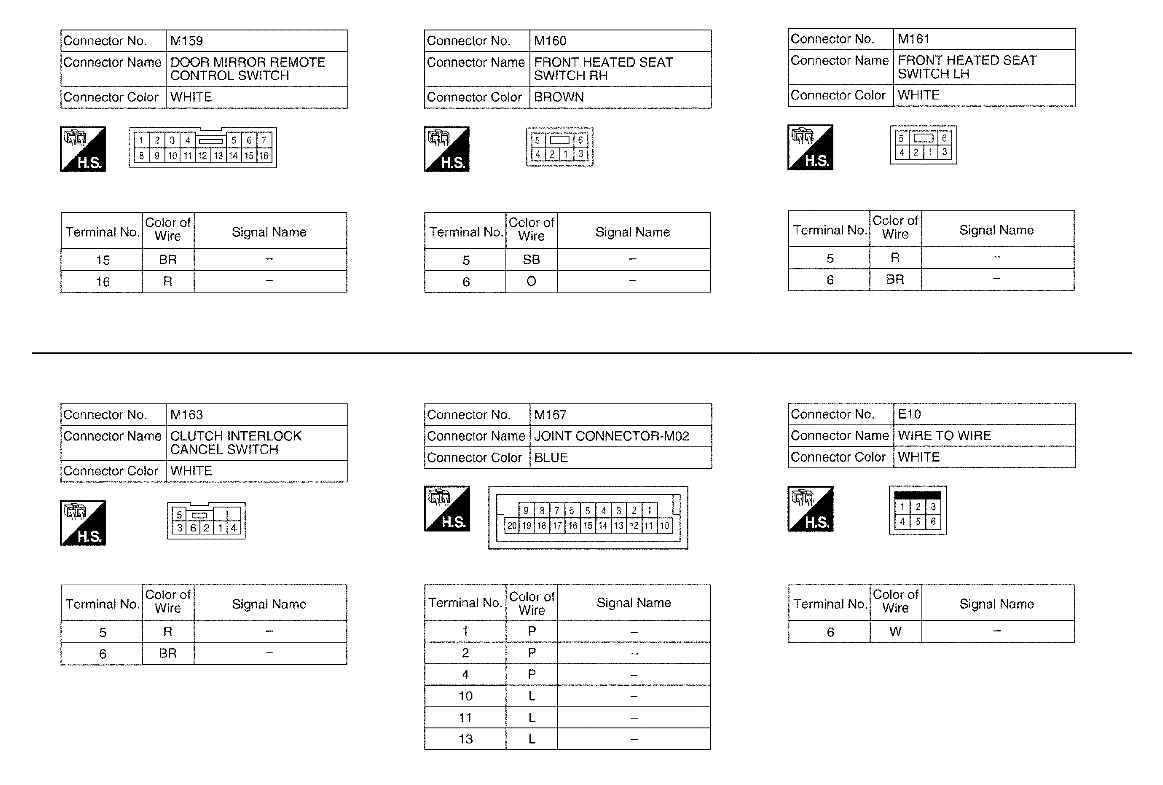

Fig 7: Illumination - Wiring Diagram [With Power Door Locks] (7 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

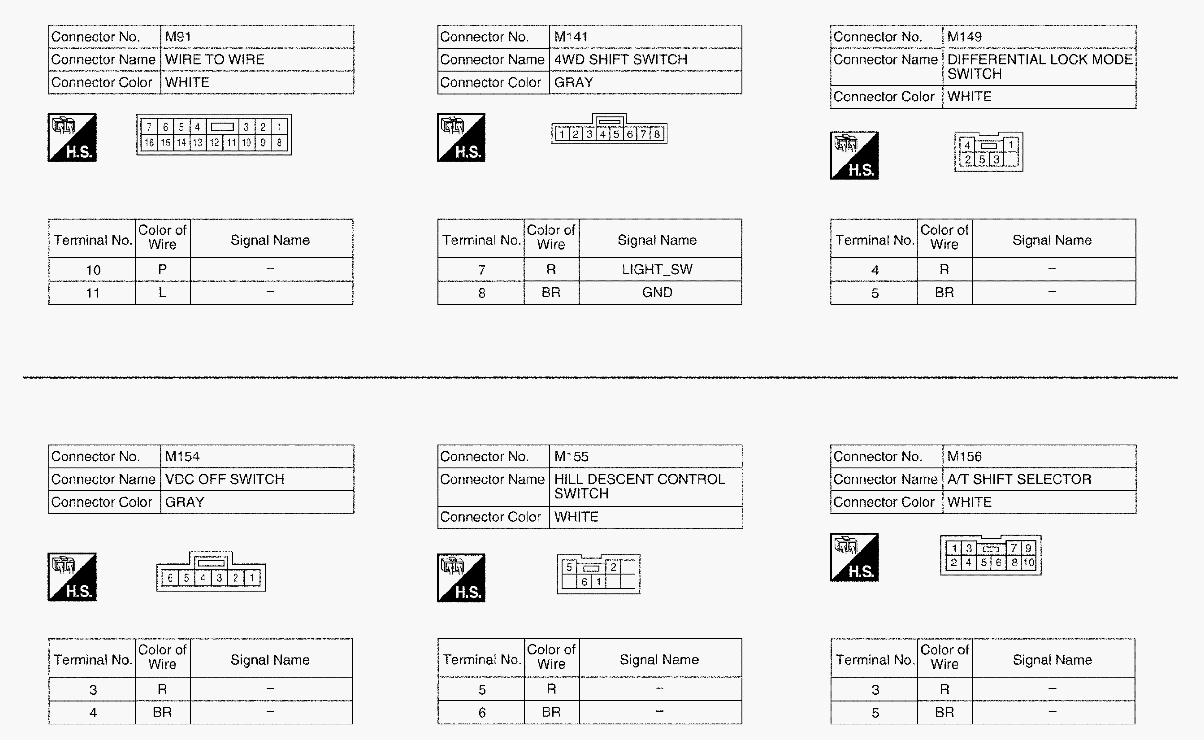

Fig 8: Illumination - Wiring Diagram [With Power Door Locks] (8 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Illumination - Wiring Diagram [With Power Door Locks] (9 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.
