Battery Power Supply: Wiring Diagram

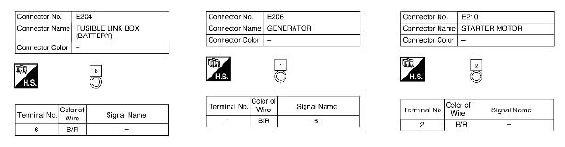

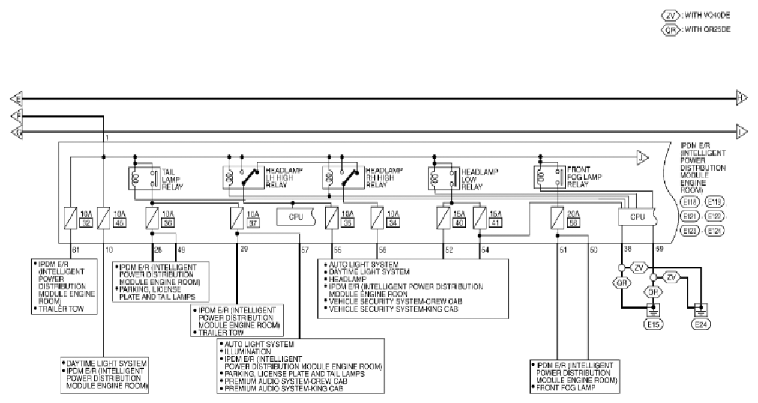

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

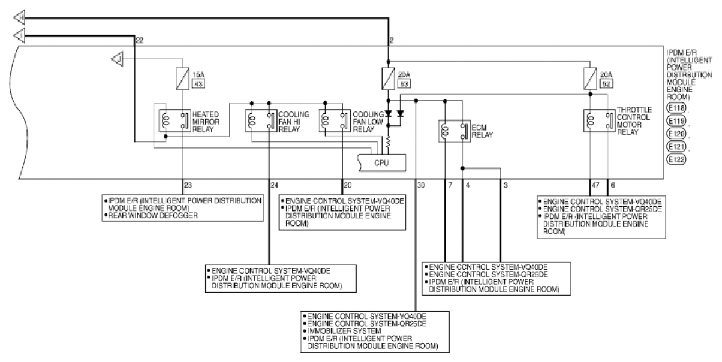

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

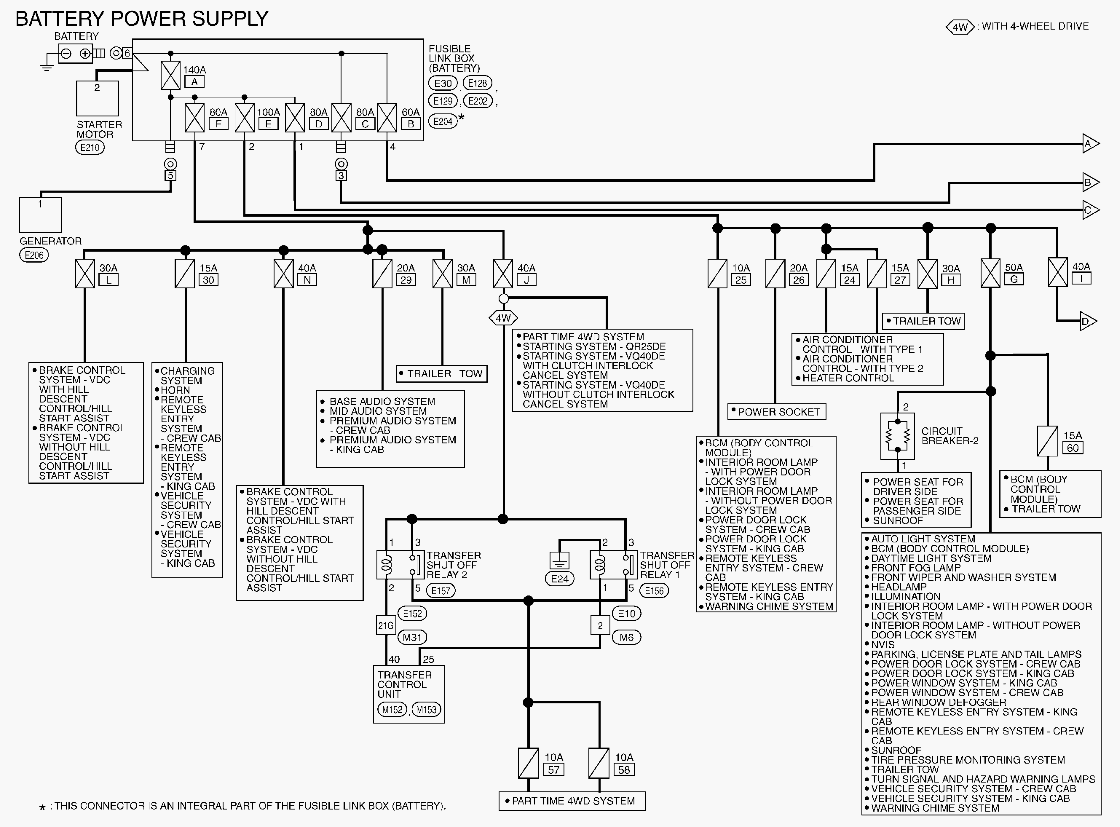

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

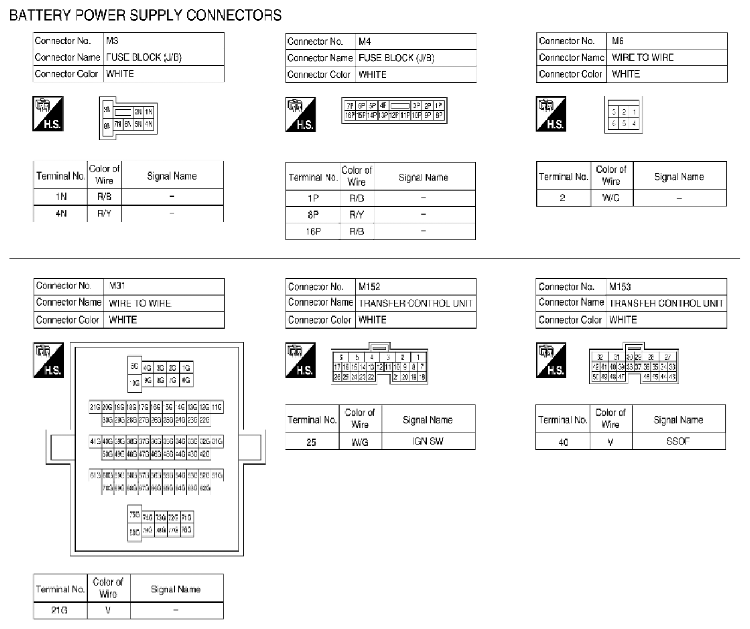

Fig 4: Battery Power Supply - Wiring Diagram (4 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

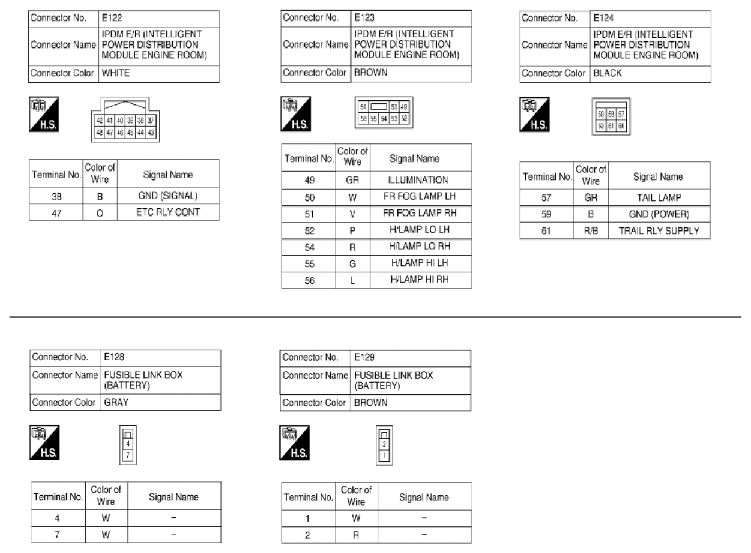

Fig 5: Battery Power Supply - Wiring Diagram (5 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

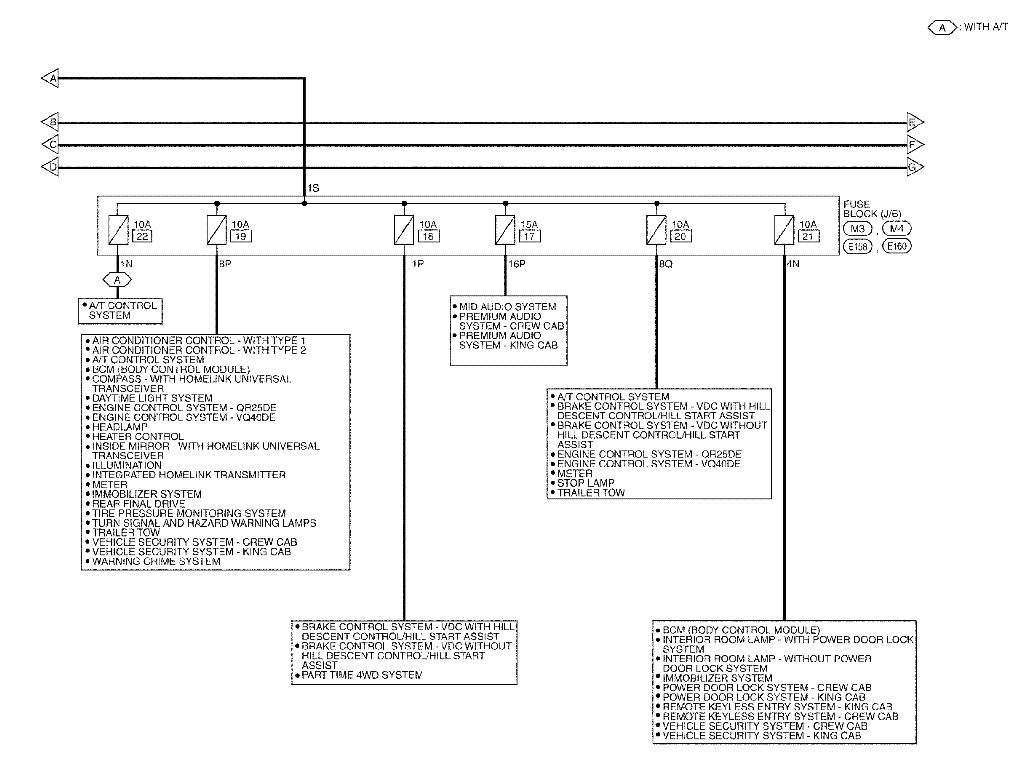

Fig 6: Battery Power Supply - Wiring Diagram (6 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

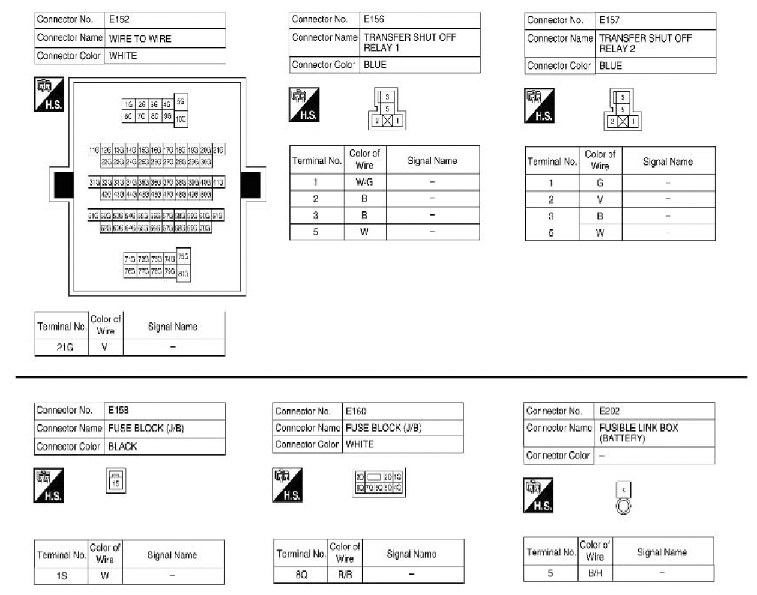

Fig 7: Battery Power Supply - Wiring Diagram (7 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

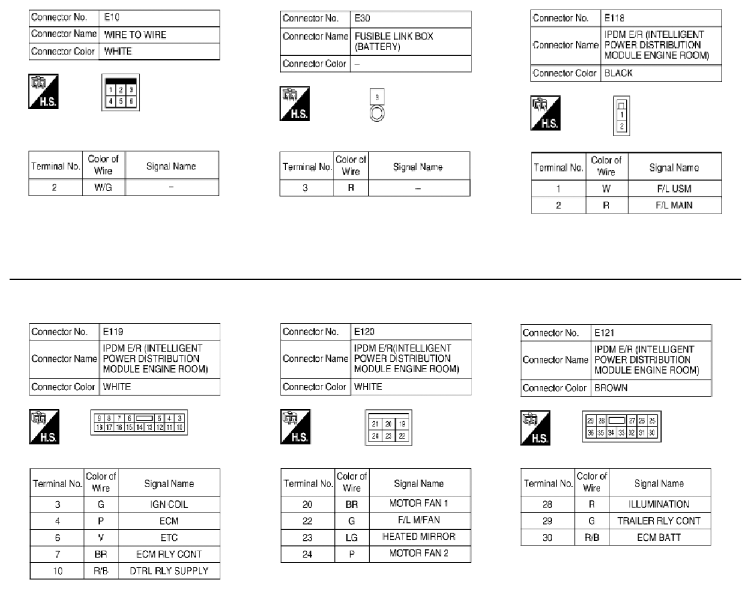

Fig 8: Battery Power Supply - Wiring Diagram (8 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Battery Power Supply - Wiring Diagram (9 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.
