Lining Thickness Inspection

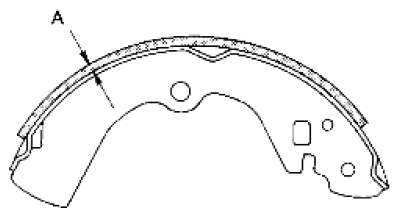

Fig 1: Checking Thickness Of Shoe Lining

Courtesy of SUZUKI OF AMERICA CORP.

Standard thickness (A):  Refer to [SERVICE DATA AND SPECIFICATIONS ].

Wear limit thickness (A):  Refer to [SERVICE DATA AND SPECIFICATIONS ].
