Drum Inner Diameter Inspection

Check visually for cracks, corrosion, or damage inside drum.
Measure drum inner diameter using suitable tool.

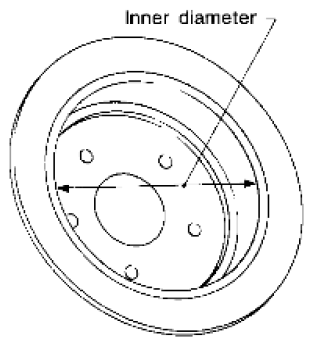

Fig 1: Checking Drum Inner Diameter
Courtesy of SUZUKI OF AMERICA CORP.

Standard inner diameter: Refer to [Service Data and Specifications ].

Wear limit of inner diameter: Refer to [Service Data and Specifications ].
