Rear Brake Pad: Removal and Installation: Installation

Apply Molykote AS-880N grease between the brake pad back plates and shims, then attach the shims to the brake pads.

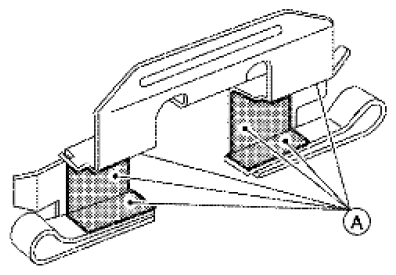

Apply Molykote 7439 grease (A) to the pad retainers as shown

Fig 1: Applying Molykote 7439 Grease To Pad Retainers
Courtesy of SUZUKI OF AMERICA CORP.
Attach pad retainer to torque member, then install brake pad and shim assemblies.

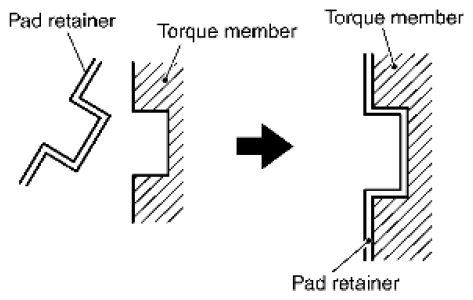

Fig 2: Attaching Pad Retainer To Torque Member
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: When attaching pad retainer, attach it firmly so that it is flush with torque member, as shown.
Using a suitable tool push piston into caliper body.
CAUTION: By pushing in piston, brake fluid returns to master cylinder reservoir tank. Watch the level of the surface of reservoir tank.

NOTE: Use a suitable tool to make it easier to push the piston into the caliper body.
Remove the suitable wire then swing the caliper body down over the brake pad assemblies.
Install the lower sliding pin bolt and tighten to specification. Refer to [REAR BRAKE CALIPER: EXPLODED VIEW [ON-VEHICLE REPAIR] ].
Check the brakes for drag.
Inspect the brake fluid level, then install the master cylinder reservoir cap.
Install the rear wheel and tire. Refer to [TIRE ROTATION ]
