Pad Wear

Check pad thickness from an inspection hole on cylinder body. Check using a scale if necessary.

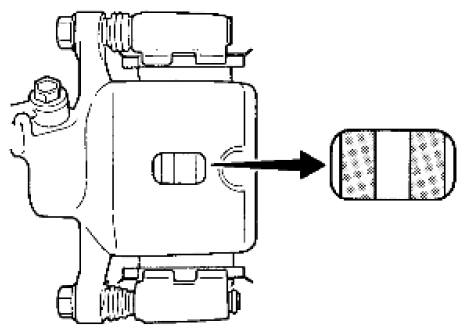

Fig 1: Checking Pad Thickness From Inspection Hole On Cylinder Body

Courtesy of SUZUKI OF AMERICA CORP.

Standard thickness (new):  Refer to [SERVICE DATA AND SPECIFICATIONS ].

Repair limit thickness:  Refer to [SERVICE DATA AND SPECIFICATIONS ].
