Rear Brake Caliper and Disc Rotor: Removal and Installation: Removal

  1. Remove the rear wheel and tire. Refer to [TIRE ROTATION ]
  2. Remove the union bolt (A) then disconnect the brake hose and discard the copper washers.

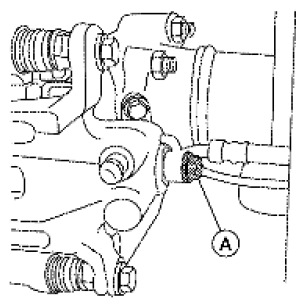

    Fig 1: Identifying Union Bolt
    G06445667Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Discard the copper washers, do not reuse.
  3. Remove the sliding pin bolts (A) and remove the caliper body from torque member.

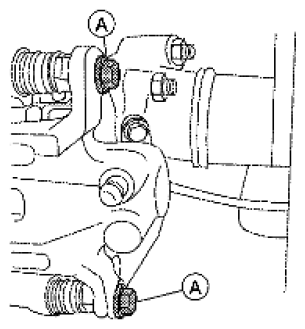

    Fig 2: Identifying Sliding Pin Bolts
    G06445668Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the brake pads, shims and retainers from the torque member.
  5. Remove the torque member bolts and remove the torque member.
  6. Remove the disc rotor. If reusing the disc rotor, apply a matching mark (A) as shown for installation.

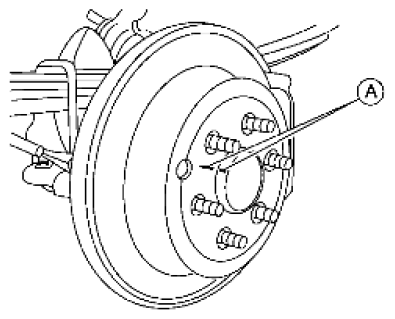

    Fig 3: Identifying Matching Mark
    G06445669Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Put matching marks on the wheel hub assembly and disc rotor, if reusing the disc rotor.
