Rear Brake Piping and Brake Hose: Removal and Installation: Removal

Remove master cylinder reservoir cap.
Remove brake tube from brake hose, using a suitable tool.

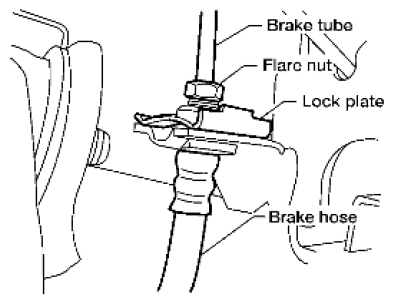

Fig 1: Identifying Brake Tube, Brake Hose, Lock Nut And Flare Nut
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Cap or plug opening(s) to prevent fluid from spilling.
Remove lock plate and brake hose from bracket.
Remove union bolt (A) and copper washers, then remove brake hose from caliper assembly.

Fig 2: Identifying Union Bolt Location
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not reuse copper washers.

NOTE: Cap or plug opening(s) to prevent fluid from spilling.
