Jump Seat (King Cab): Removal

  1. Remove seat base trim panel.
    Fig 1: Removing Seat Base Trim Panel
    G06446533Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the seat cushion bolts and assembly.

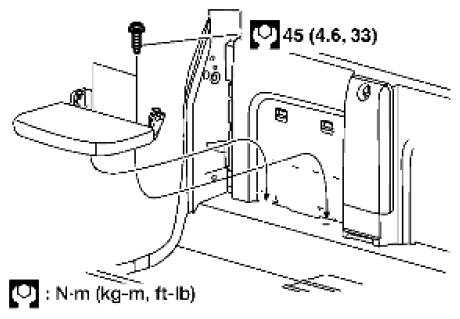

    Fig 2: Seat Cushion Bolts And Assembly With Torque Specifications
    G06446534Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the bolt, lift and remove the seatback assembly.

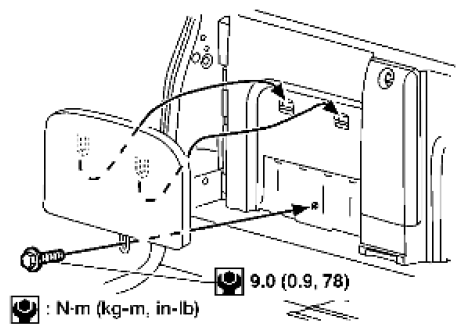

    Fig 3: Seatback Assembly And Bolt With Torque Specifications
    G06446535Courtesy of SUZUKI OF AMERICA CORP.
