Striker Adjustment

Adjust the striker so that it becomes parallel with the lock insertion direction.

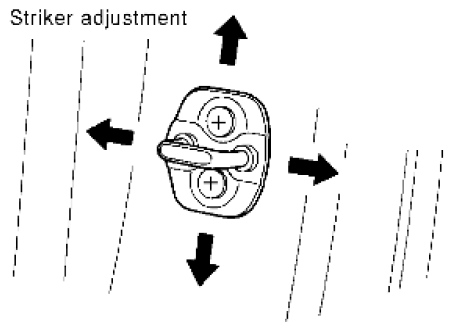

Fig 1: Adjusting Striker
Courtesy of SUZUKI OF AMERICA CORP.

Striker bolts: : 16.7 N.m (1.7 kg-m, 12 ft-lb)
Remove the upper striker covers and adjust the striker so that it becomes parallel with the lock insertion direction.

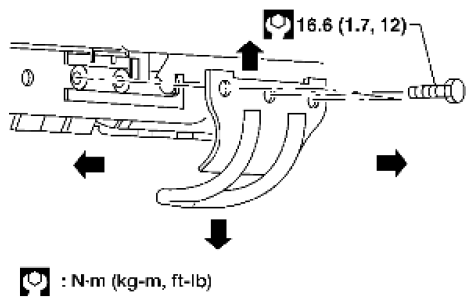

Fig 2: Identifying Upper Striker Covers And Striker Bolts
Courtesy of SUZUKI OF AMERICA CORP.

Striker bolts: 16.7 N.m (1.7 kg-m, 12 ft-lb)
