Power Supply and Ground Circuit Check [Combination Meter]

DIAGNOSIS PROCEDURE CHART

Step	Action	YES	NO
1	CHECK FUSES  Check for blown combination meter fuses. Is the inspection result normal?	GO TO 2	If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

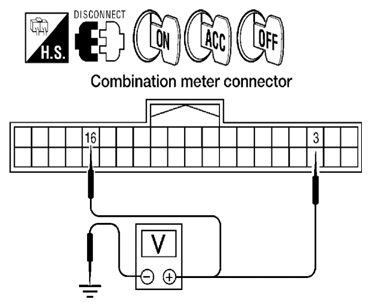

2	POWER SUPPLY CIRCUIT CHECK  Disconnect combination meter connector M24. Courtesy of SUZUKI OF AMERICA CORP. 2. Check voltage between combination meter harness connector M24 terminals 3, 16 and ground. Is the inspection result normal?	GO TO 3	Check harness for open between combination meter and fuse.

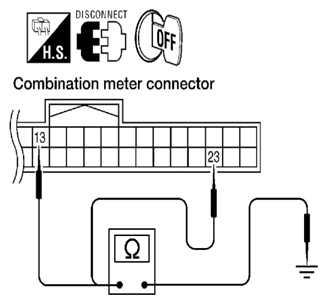

3	GROUND CIRCUIT CHECK  Turn ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP. 2. Check continuity between combination meter harness connector M24 terminals 13, 23 and ground. Is the inspection result normal?	Inspection End.	Check ground harness.
