Seatback Board - Hard Seatback: Removal

Remove the seatback assembly. Refer to [Front Seat: Removal and Installation ].
The seatback board is attached to the seat frame with the following:

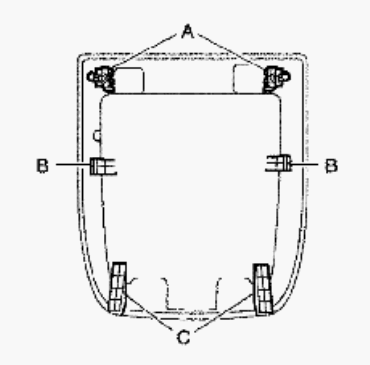

Fig 1: Identifying Seatback Board Tabs & Clips
Courtesy of SUZUKI OF AMERICA CORP.
- 2 top tabs (A)
- 2 side tabs (B)
- 2 bottom clips (C) (must be replaced)
Move seat to forward position.
Hold the seatback board as shown in illustration and pull the bottom of the seatback board away from the seat back frame.

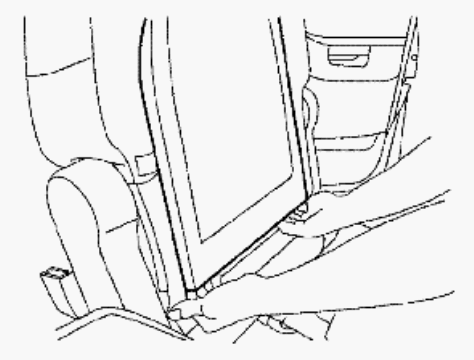

Fig 2: Pulling Seatback Bottom Away From Frame
Courtesy of SUZUKI OF AMERICA CORP.
Pull the middle part of the seatback board up and away to disengage the side tabs from the seatback frame.

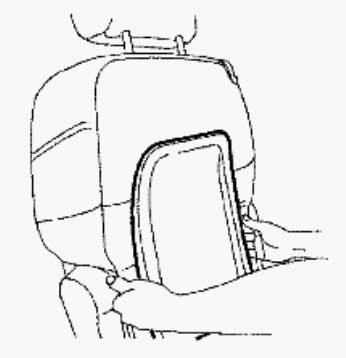

Fig 3: Pulling Middle Seatback Board Up
Courtesy of SUZUKI OF AMERICA CORP.
Lift the upper part of the seatback board to disengage the top tabs from the seatback frame.
