Removal and Installation

Clutch Master Cylinder: Removal and Installation

CAUTION:

Do not spill brake fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area with water.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Removal

1) Remove the snap pin and clevis pin from the clevis, and separate it from the clutch pedal.
2) Remove the hose clamp and hose from the clutch master cylinder.
3) Remove the clutch tube using suitable tool.
4) Remove the clutch master cylinder nuts, and remove the clutch master cylinder from the vehicle.

Installation

Installation is in the reverse order of removal.

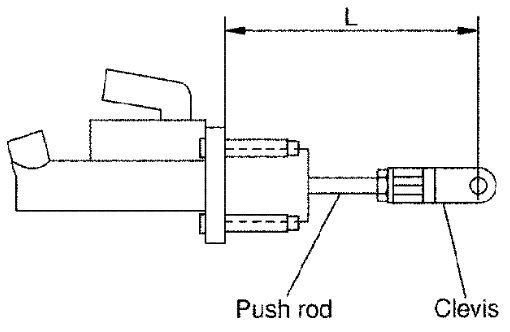

- Before installation, check the position of the clevis and push rod. If (L) is outside standard length, adjust the position of the clevis and push rod.











- After installation, inspect and adjust the clutch pedal as necessary, then bleed the clutch hydraulic system. Refer to [Clutch Pedal: On-Vehicle Inspection and Adjustment] Testing and Inspection and [Clutch Fluid: Bleeding] Service and Repair.
