Secondary Timing Chain Tensioner Shoe Removal and Installation

Secondary Timing Chain Tensioner Shoe Removal and Installation

Removal

1) Remove the timing chains (secondary). Refer to [Secondary Timing Chain Tensioner Removal and Installation] Secondary Timing Chain Tensioner Removal and Installation.

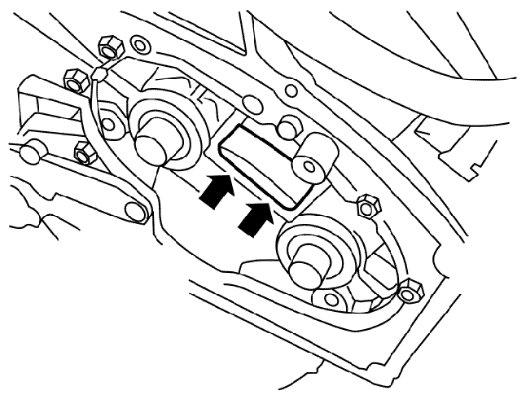

2) Remove the secondary timing chain tensioner shoe by evenly prying at base of shoe with suitable tool as shown.





Installation

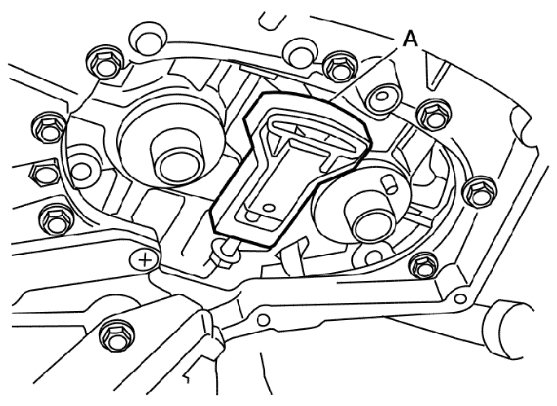

1) Install new secondary timing chain tensioner shoe using Tool (A) as shown.





- Tighten the bolt until the secondary timing chain tensioner shoe is fully seated on the secondary timing chain tensioner.

CAUTION:
Do not overtighten bolt.





2) Installation of the remaining components is in the reverse order of removal.
