Drive Belt Tensioner: Service and Repair

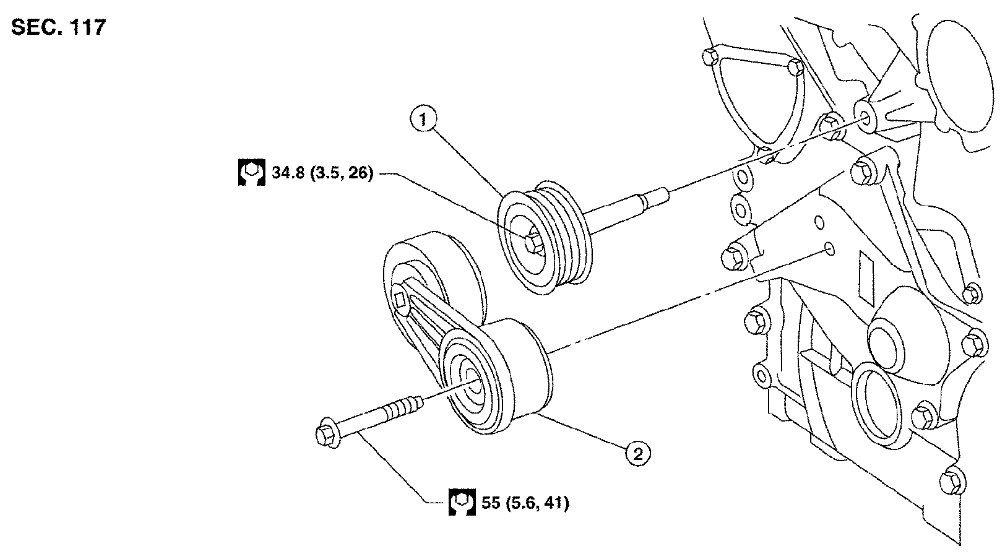

Drive Belt Auto-Tensioner and Idler Pulley: Removal and Installation










Removal

1) Remove air duct and resonator assembly. Refer to [Air Cleaner and Air Duct: Removal and Installation] Removal and Installation.
2) Remove drive belt. Refer to [Drive Belts: Removal and Installation] Removal and Installation.
3) Remove drive belt auto-tensioner and idler pulley.

Installation

Installation is in the reverse order of removal.

CAUTION:

If there is damage greater than peeled paint, replace drive belt auto-tensioner.
