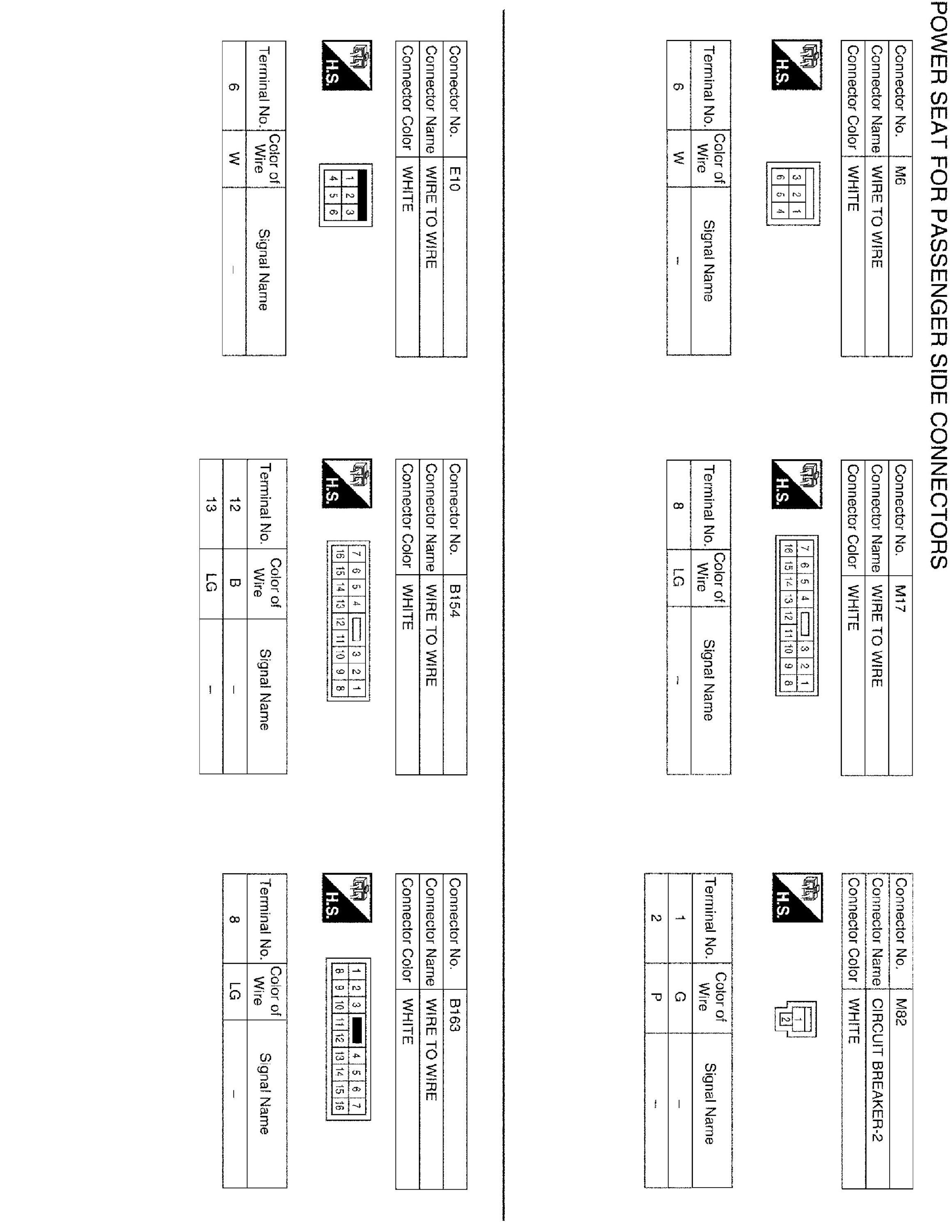

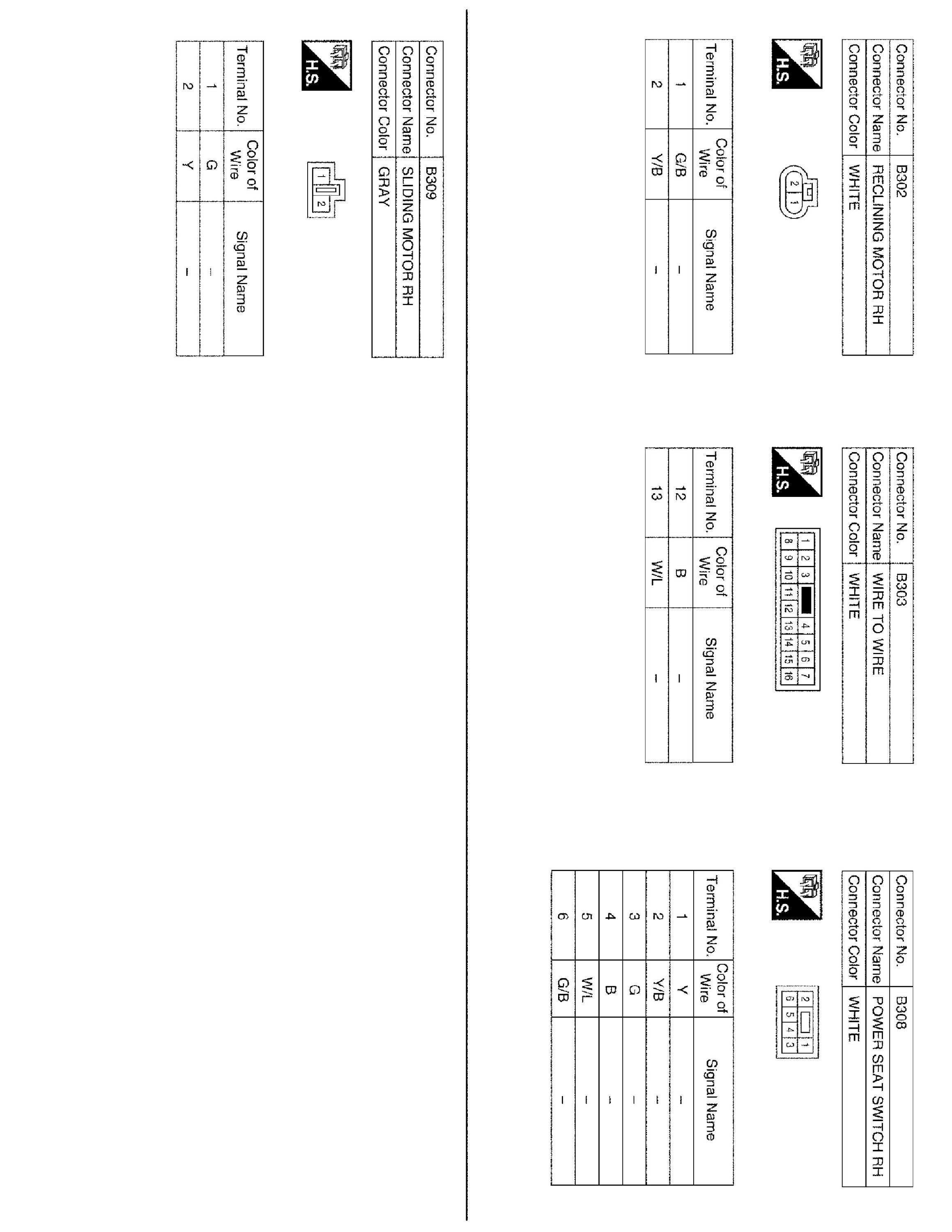

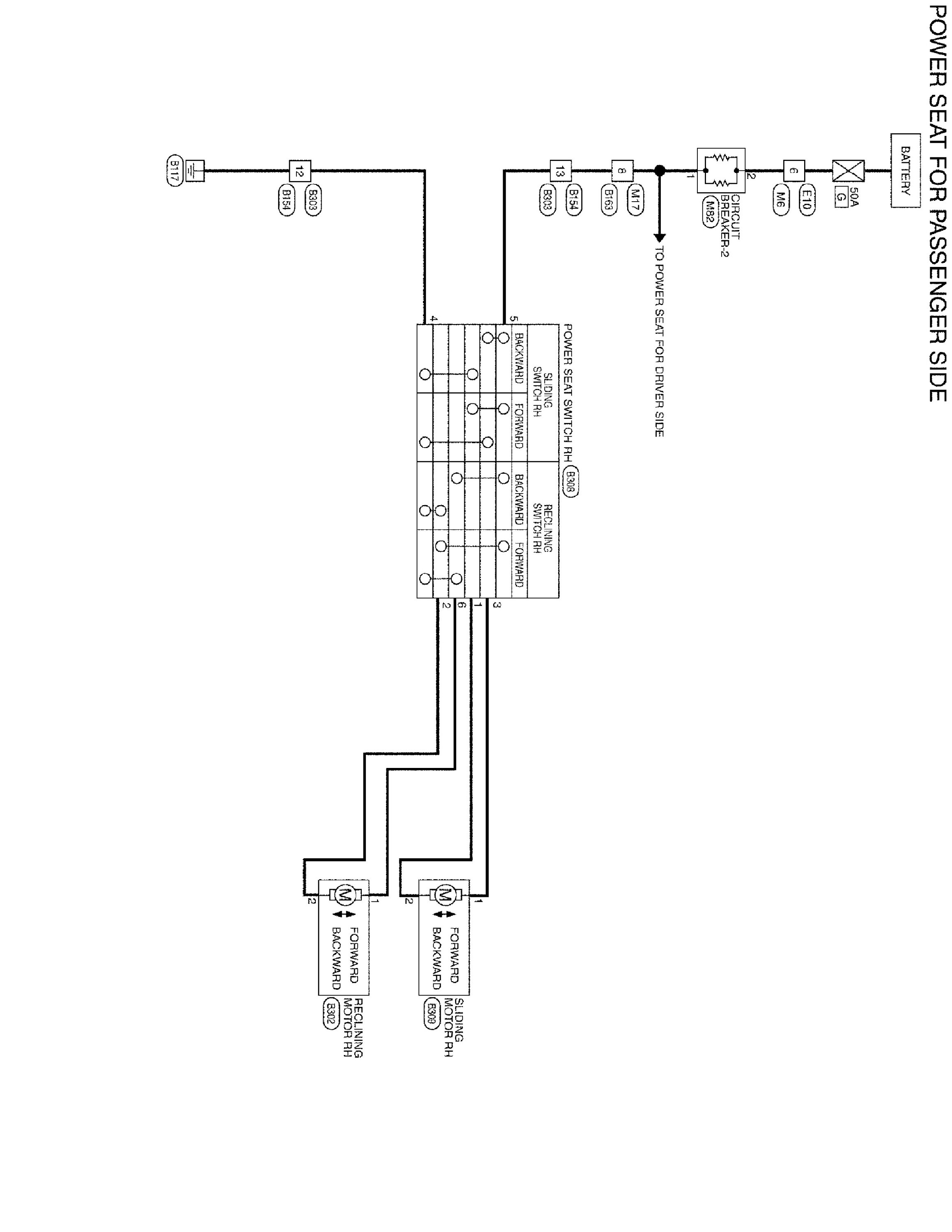

Power Seat: Wiring Diagram [Passenger Side]
Power Seat: Wiring Diagram [Passenger Side]
Power Seat: Wiring Diagram [Passenger Side]
