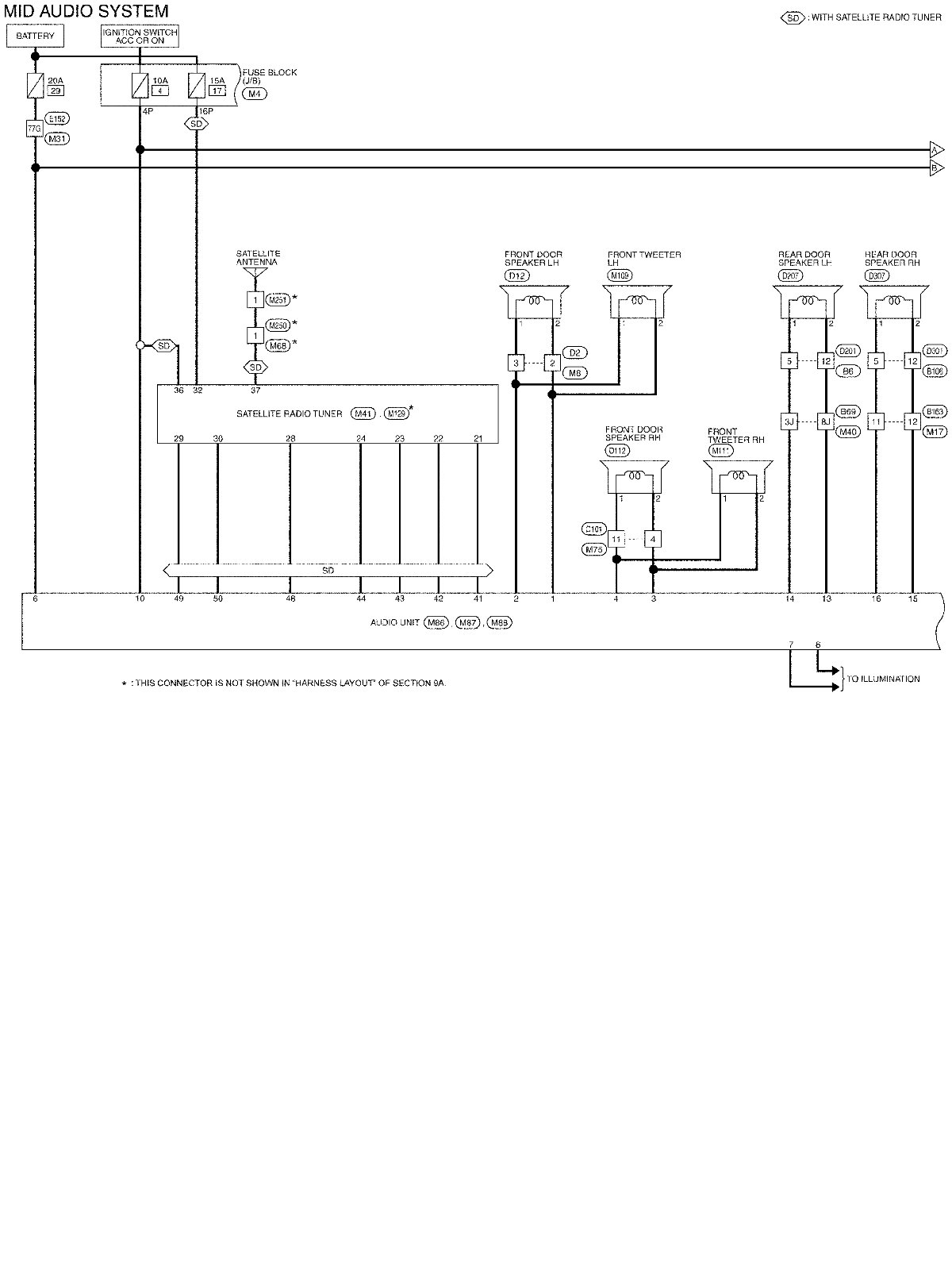

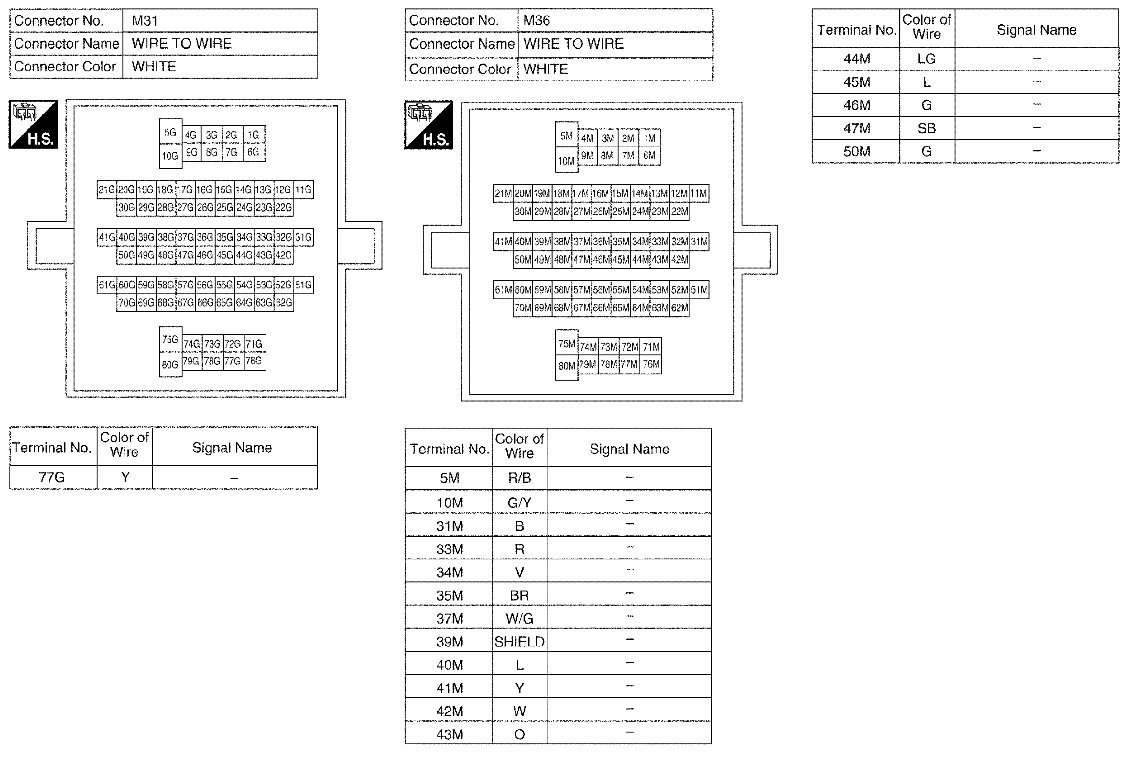

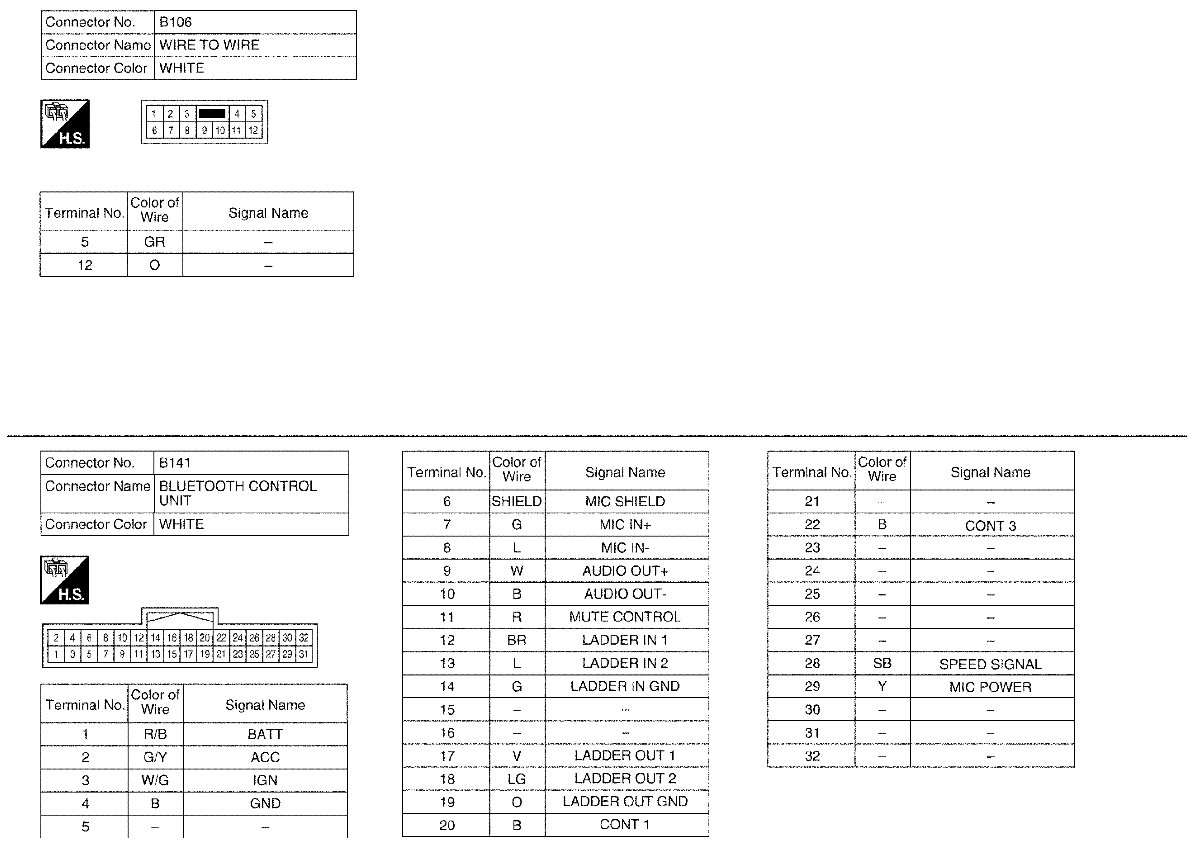

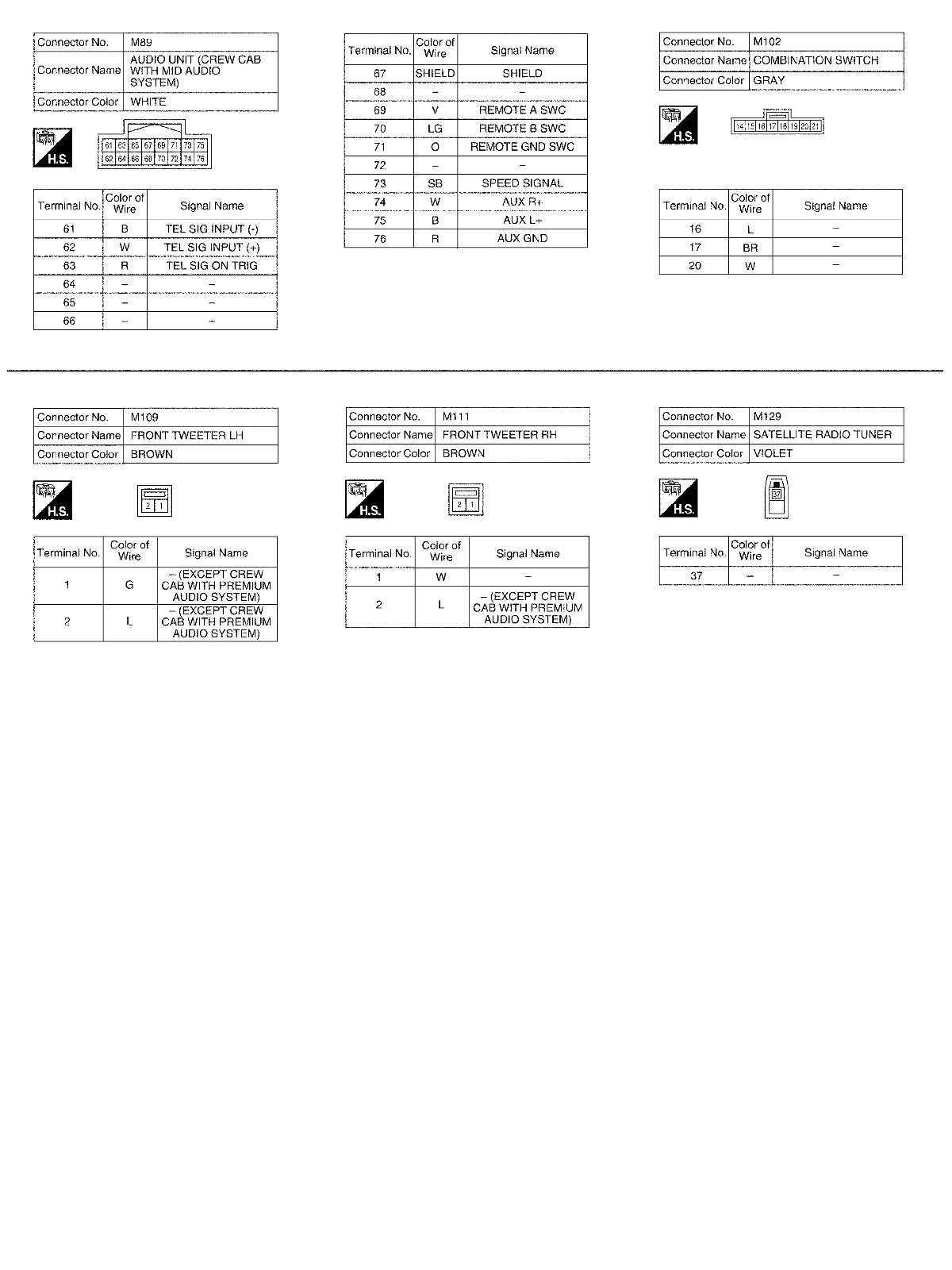

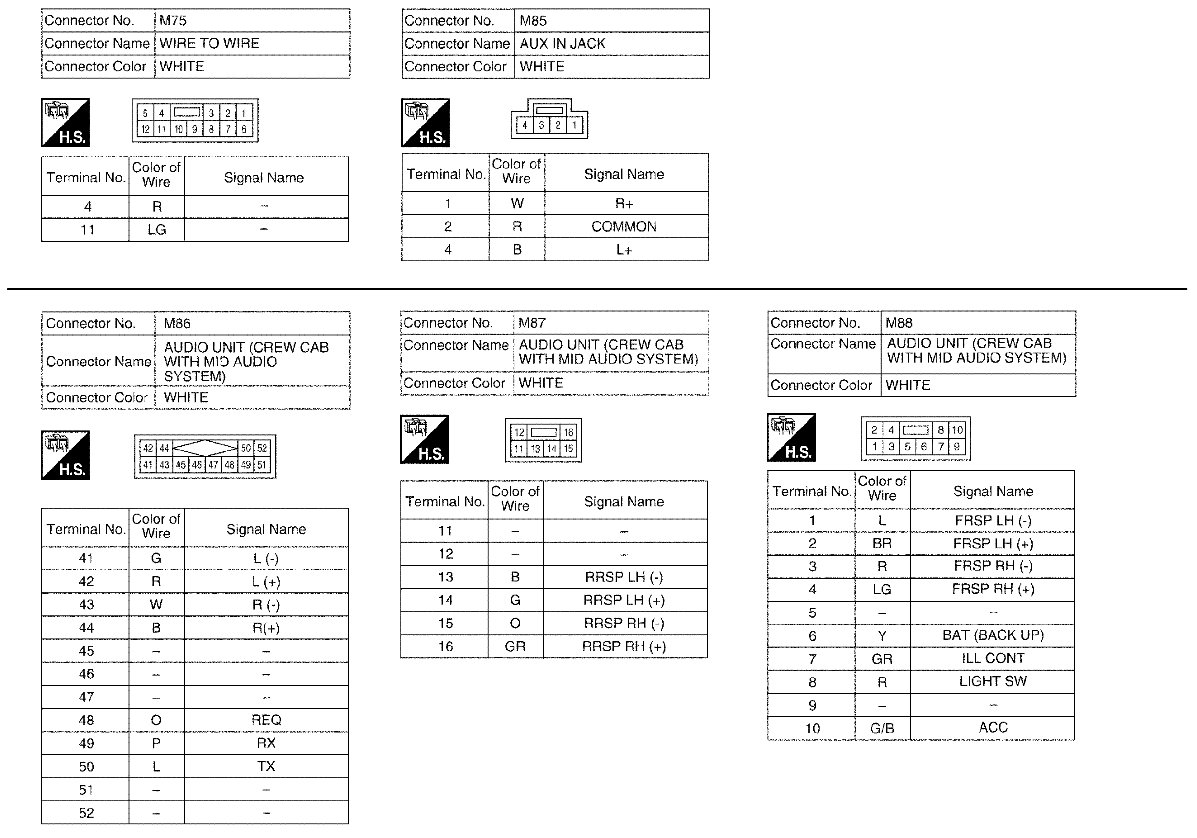

Home >> Suzuki >> 2012 >> Equator 2WD V6-4.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Mid Audio System [Crew Cab]
