Audio Unit




Audio Unit: Removal and Installation

Removal

1) Remove the cluster lid C. Refer to [Cluster Lid C: Removal and Installation] Cluster Lid C.

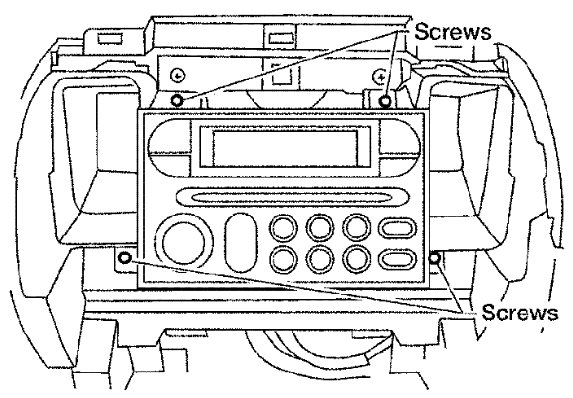

2) Remove the audio control unit screws, using power tool.





3) Pull out the audio control unit from the instrument panel and disconnect the audio control unit connectors.

Installation

Installation is in the reverse order of removal.
