Door Inside Mirror: Wiring Diagram [With Homelink Universal Transceiver]: Wiring Diagram [Without Heated Mirrors]
Door Inside Mirror: Wiring Diagram [With Homelink Universal Transceiver]: Wiring Diagram [Without Heated Mirrors]

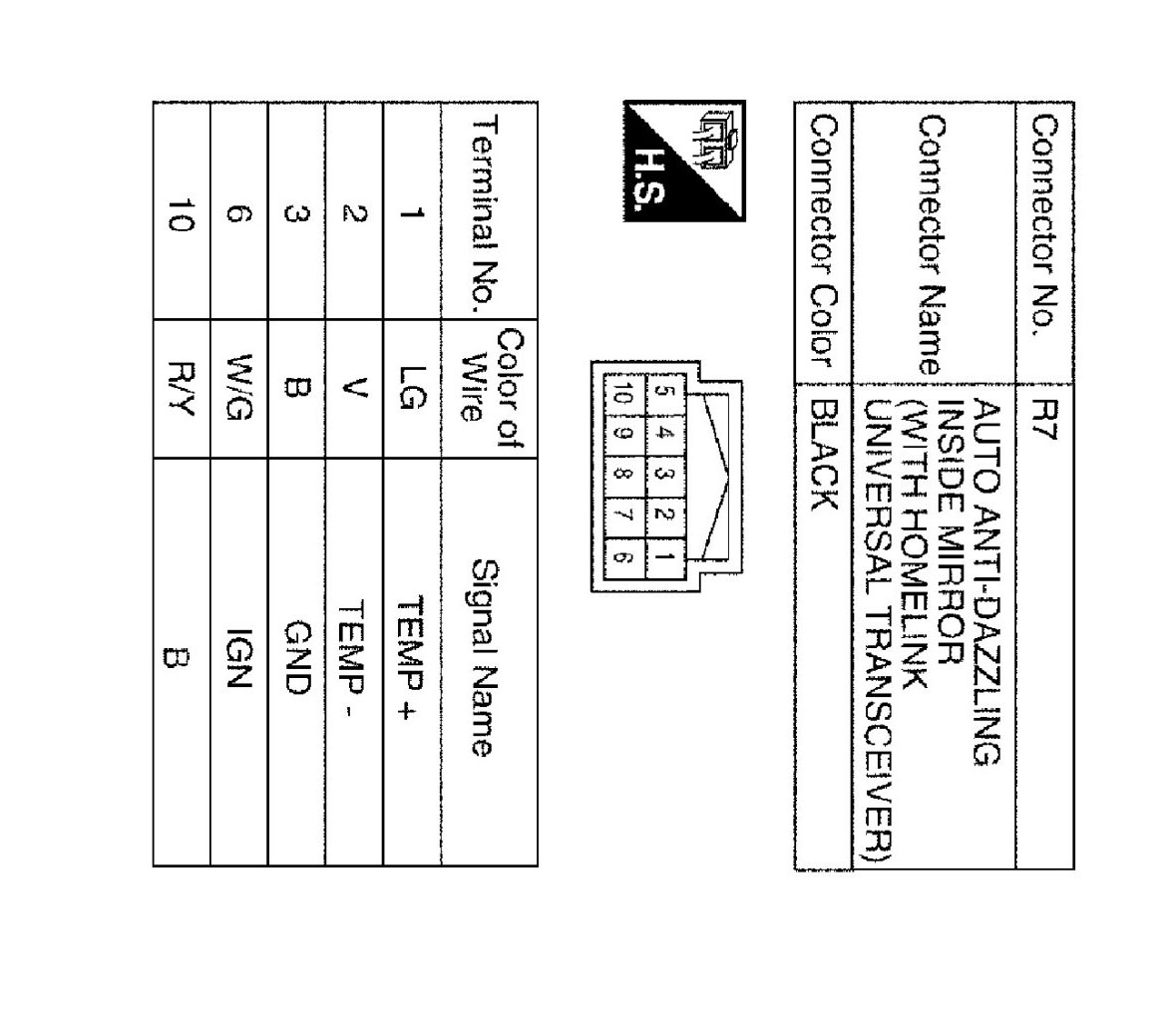

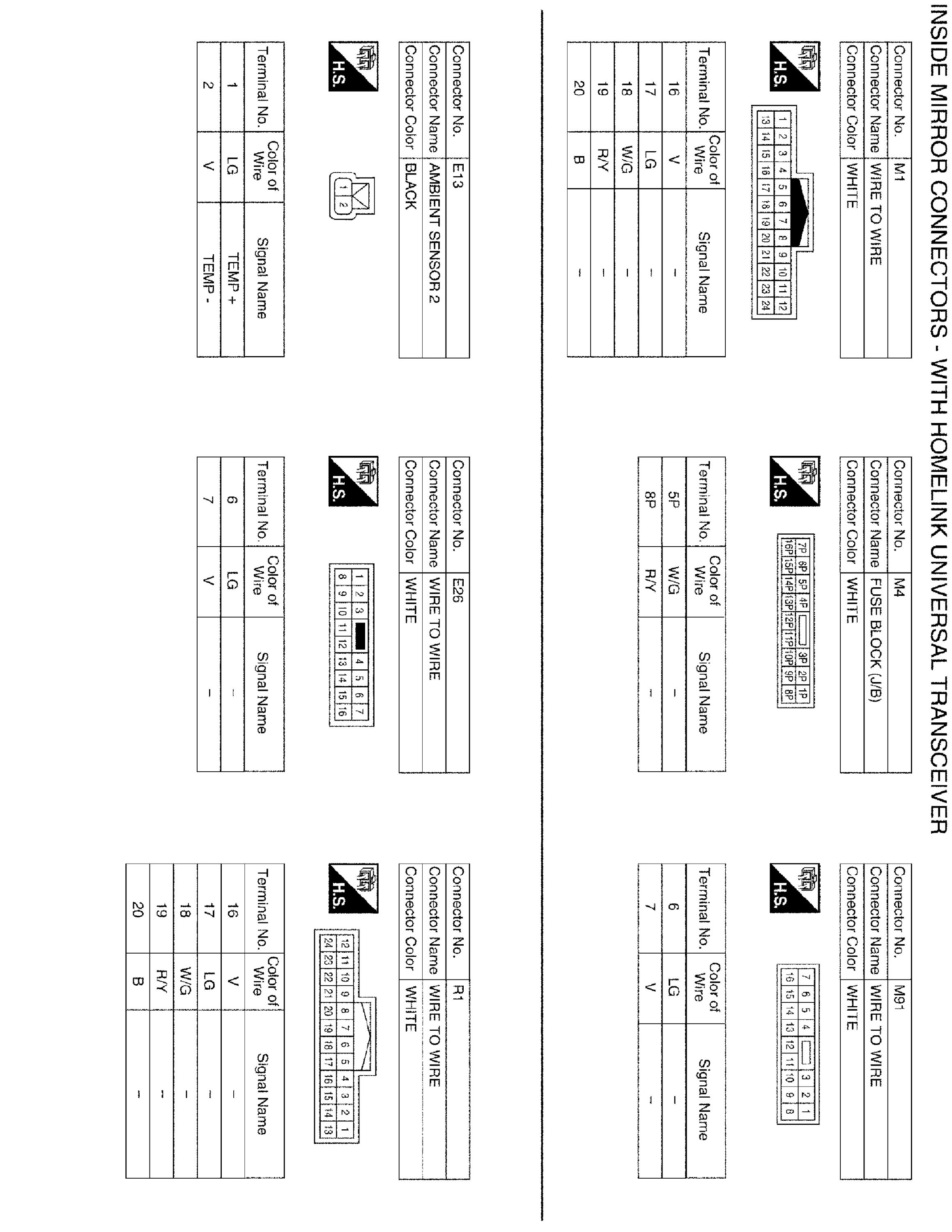

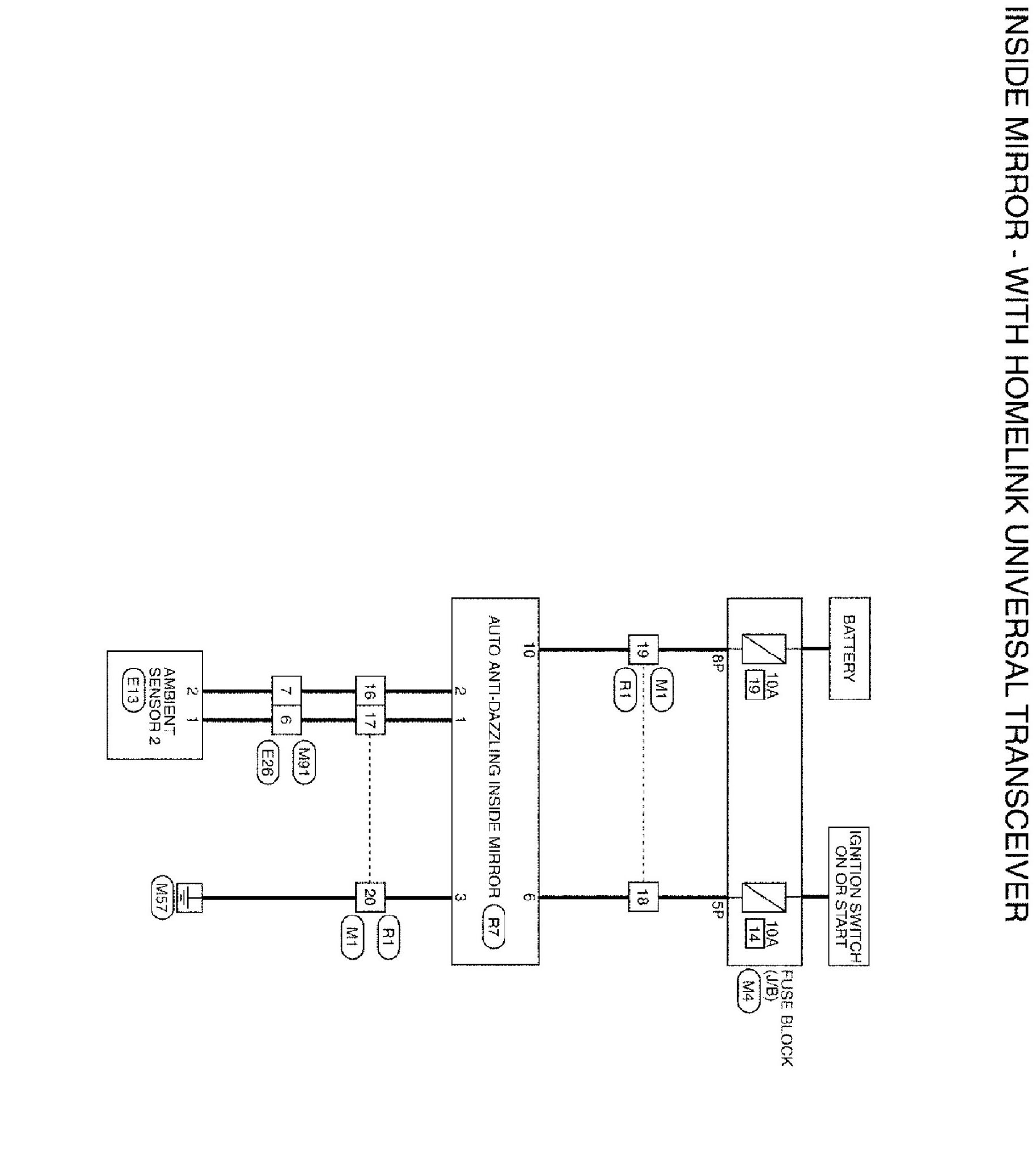

Inside Mirror: Wiring Diagram [with Homelink Universal Transceiver]
