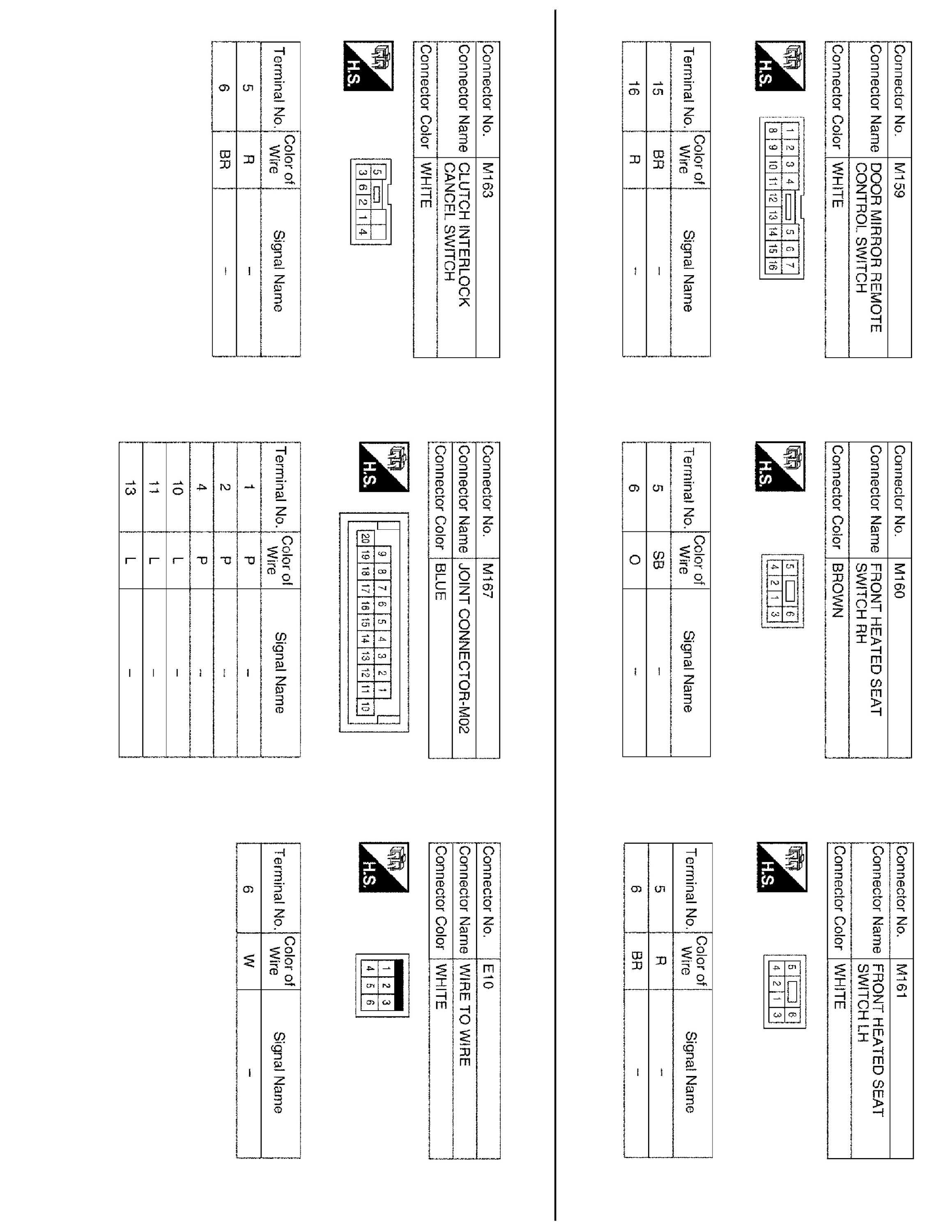

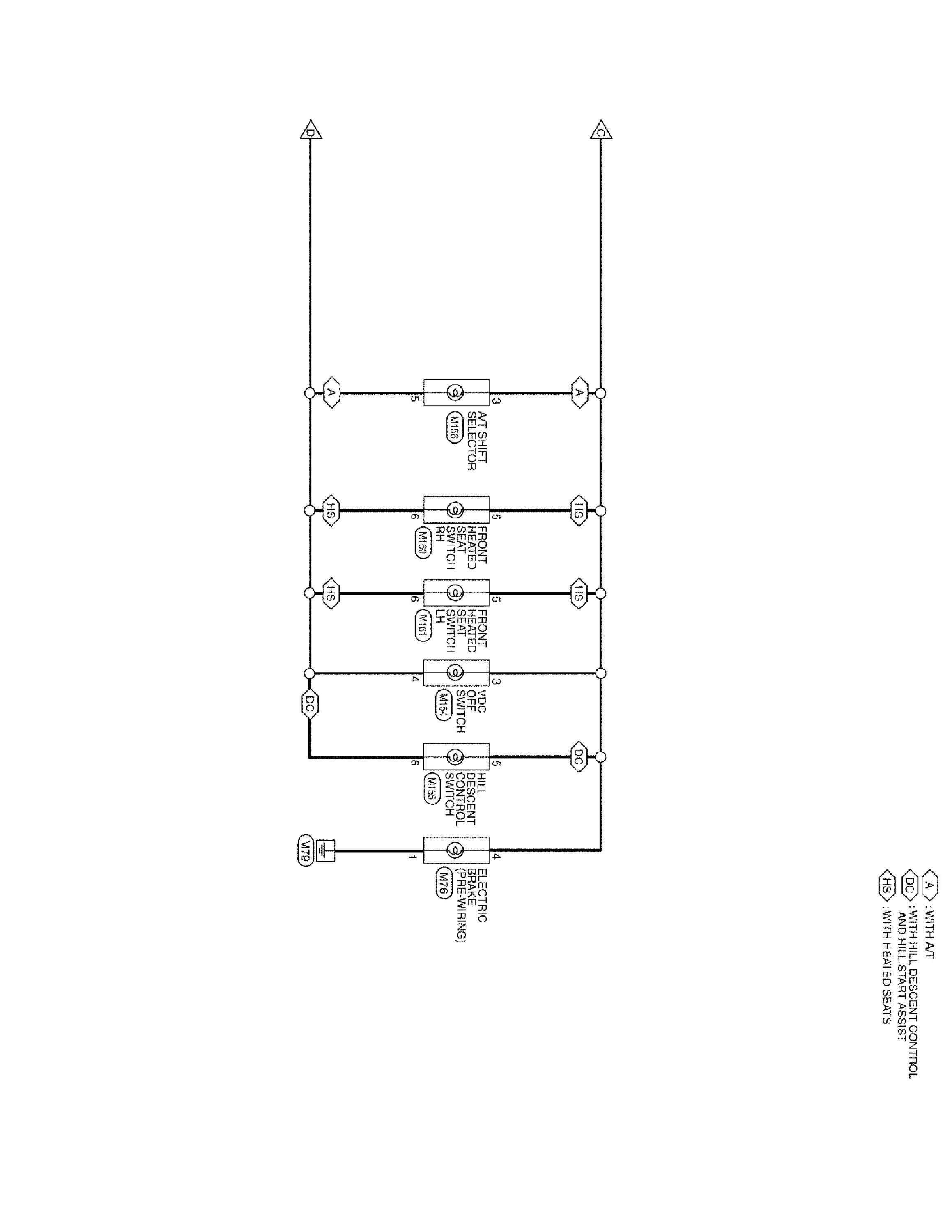

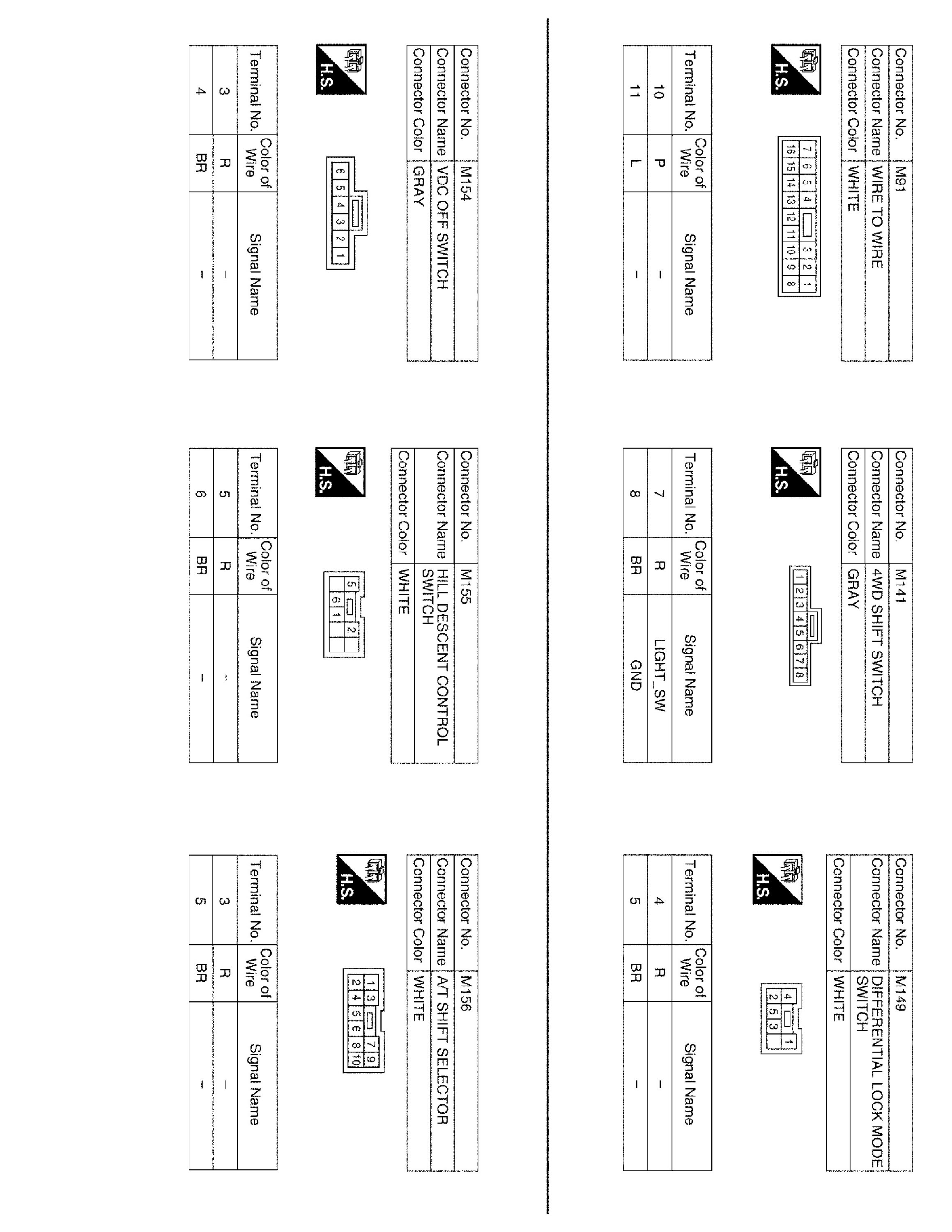

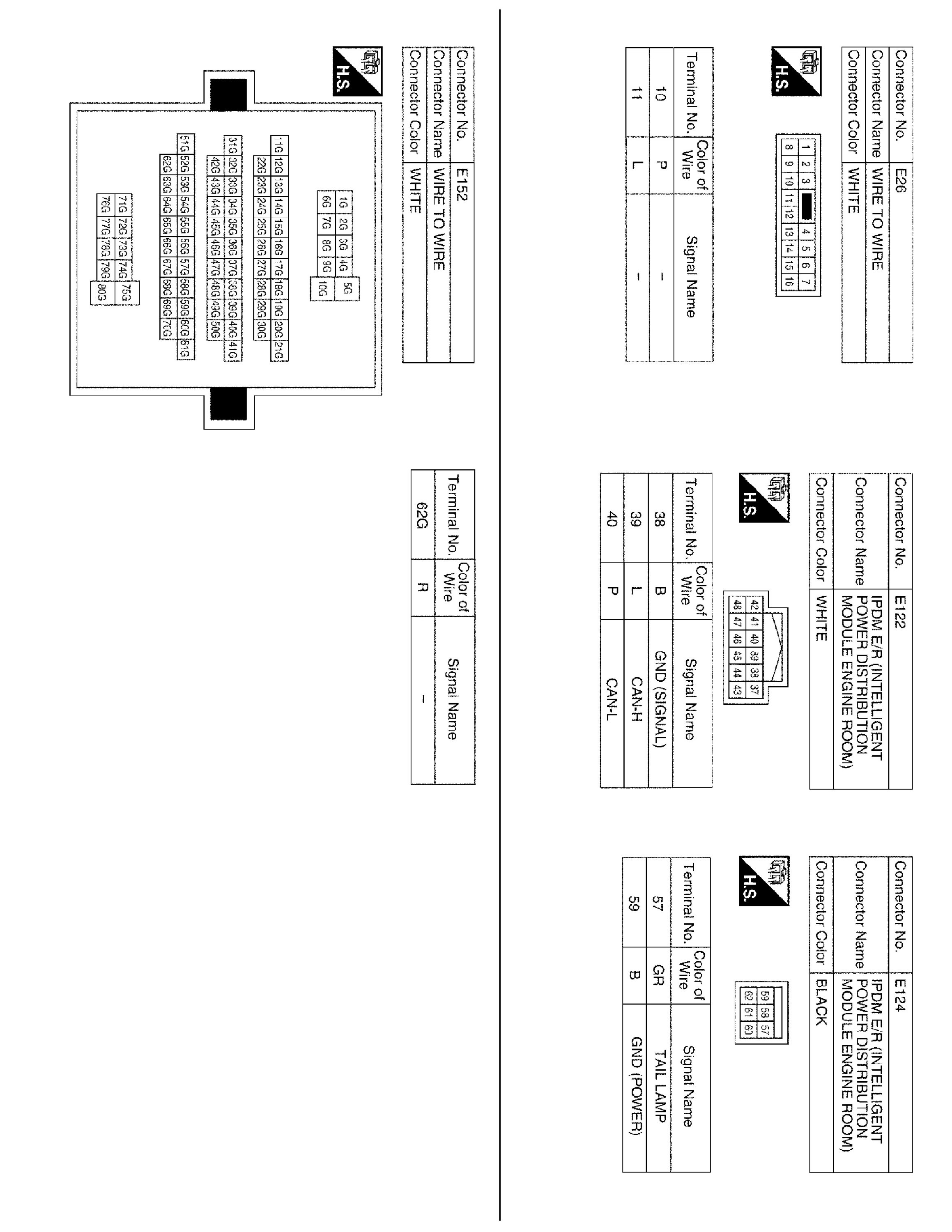

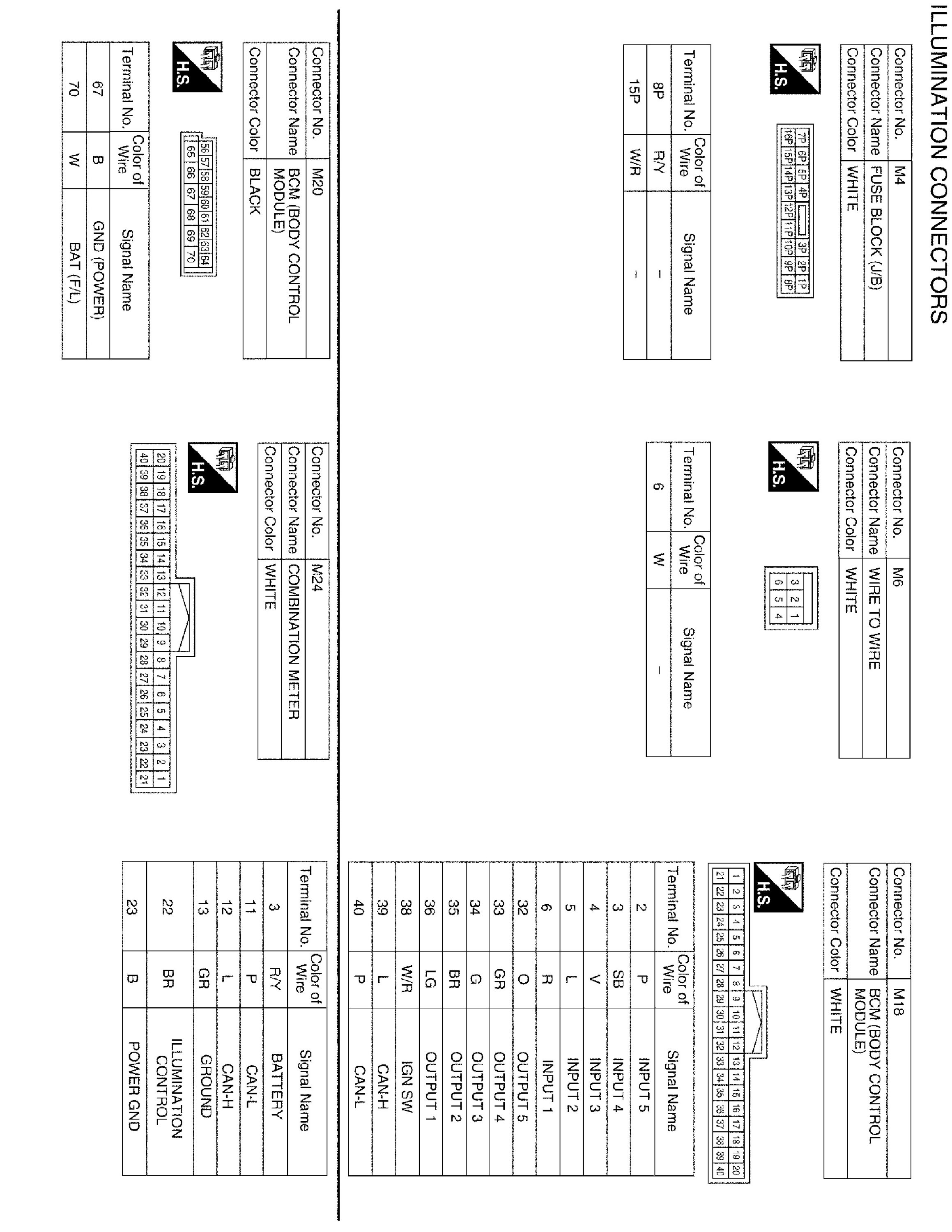

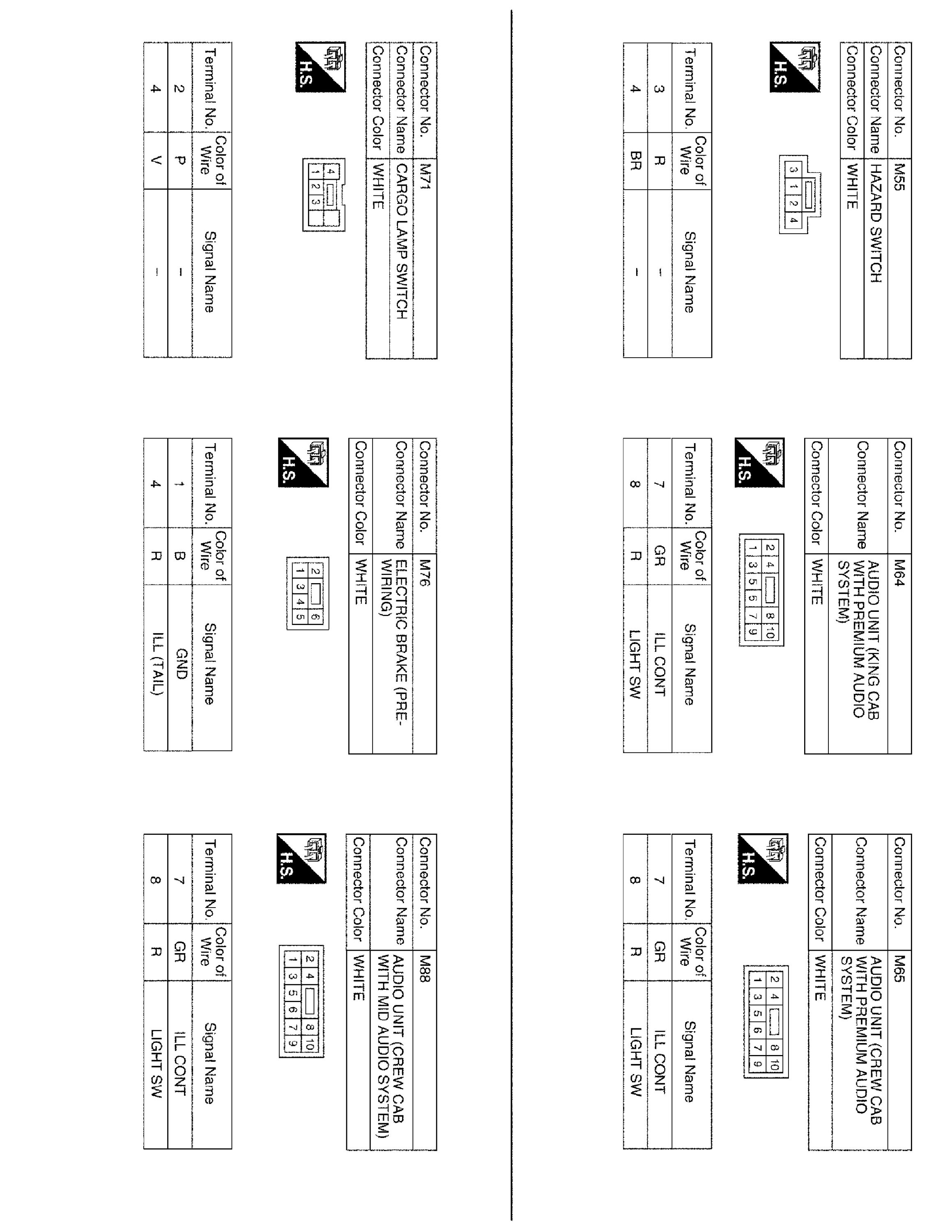

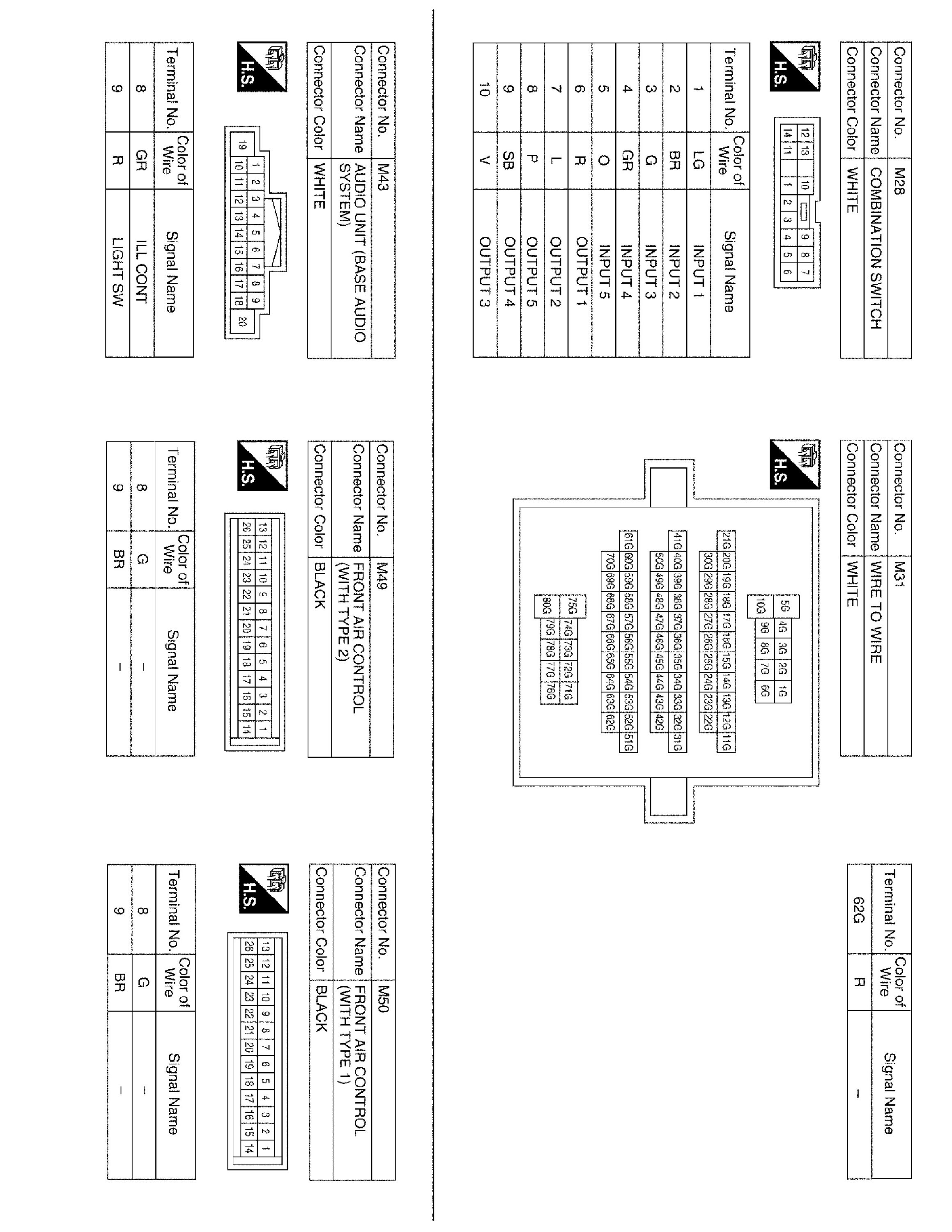

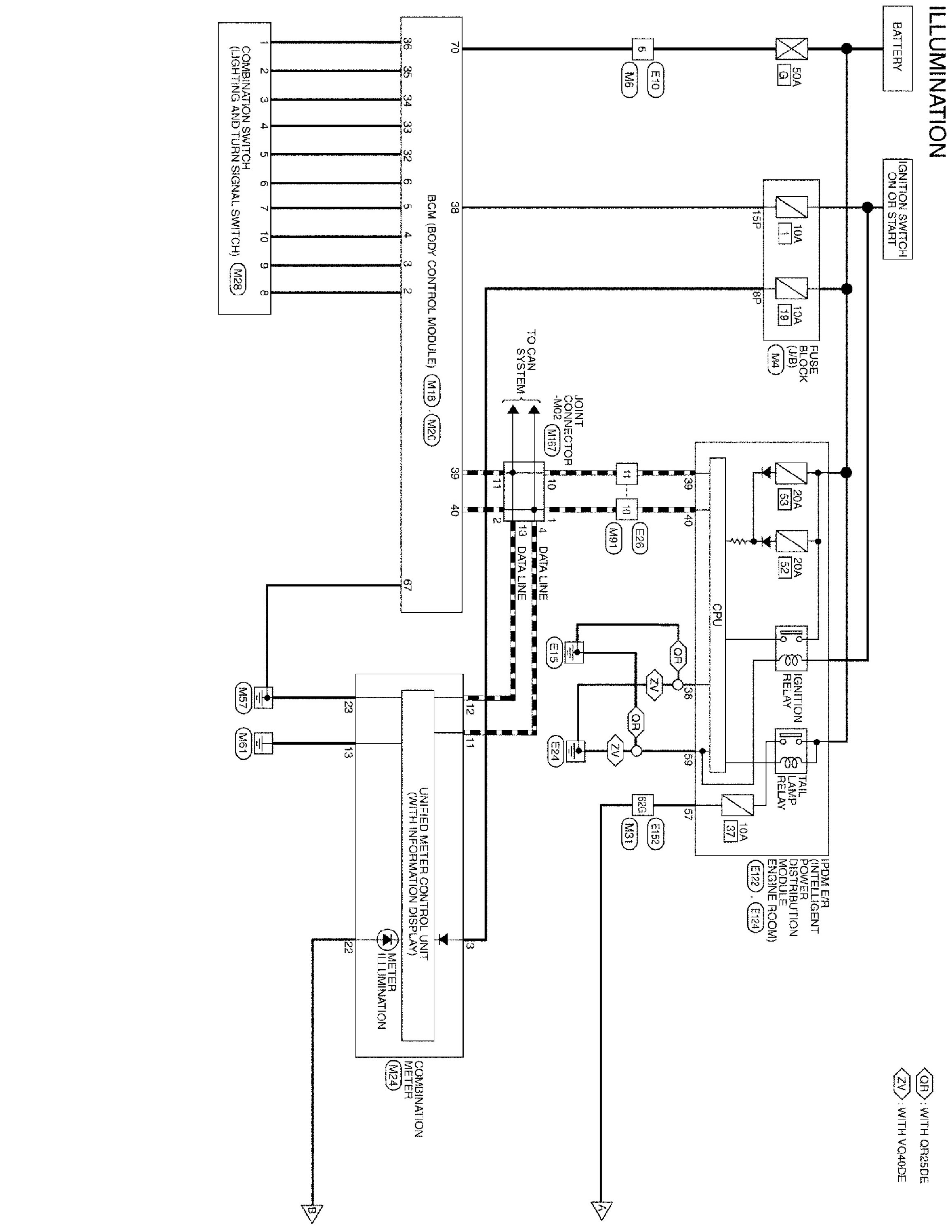

Illumination: Wiring Diagram [With Power Door Locks]
Illumination: Wiring Diagram [With Power Door Locks]
Illumination: Wiring Diagram [with Power Door Locks]
