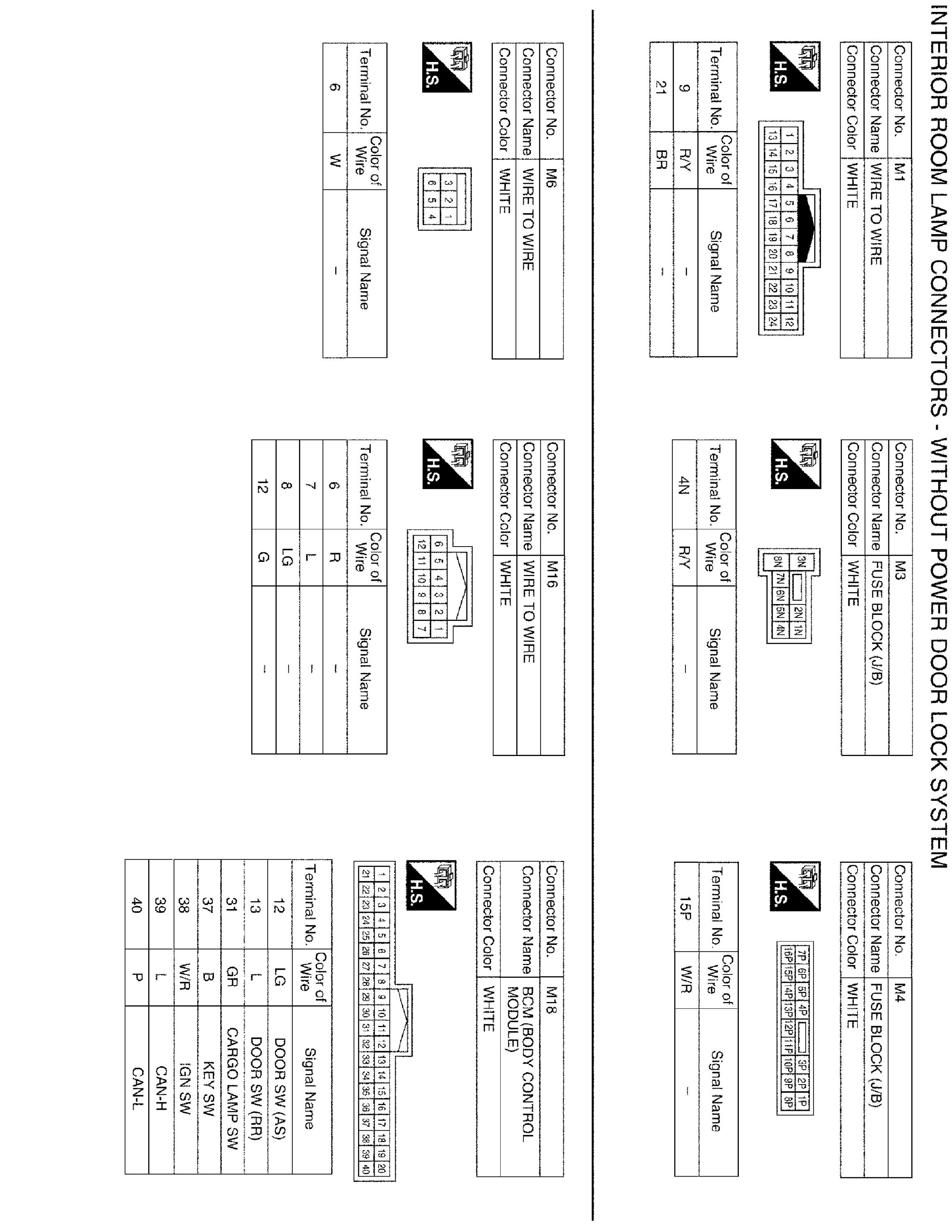

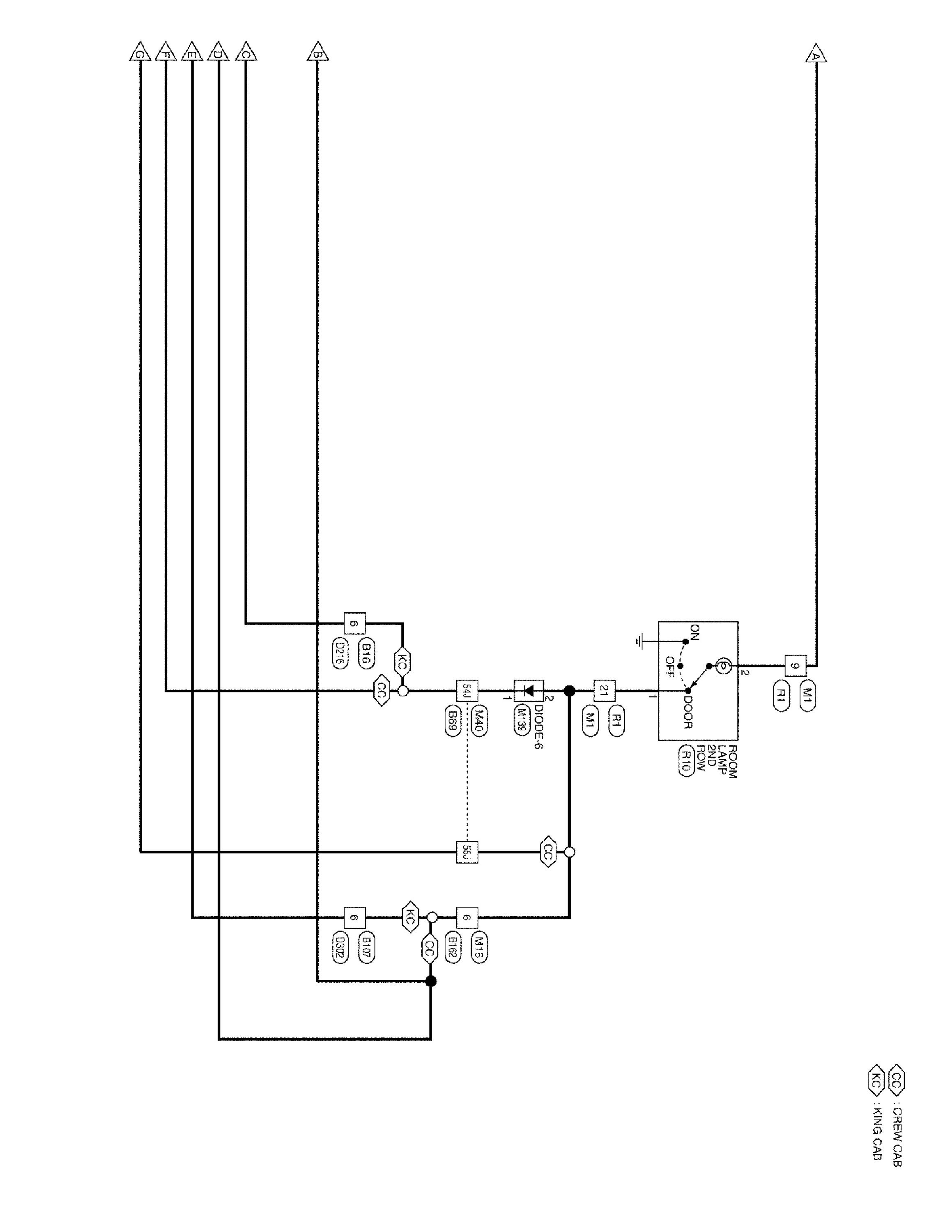

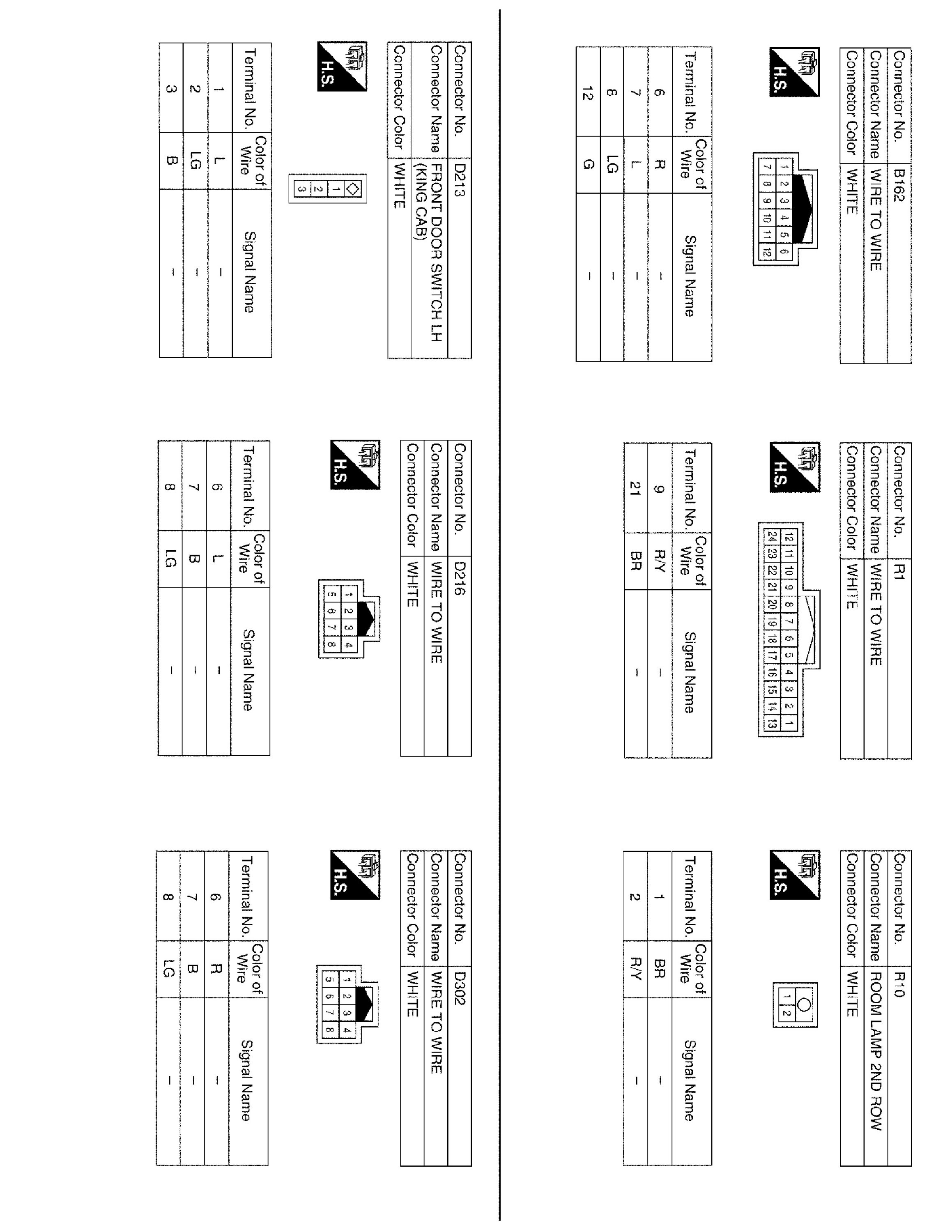

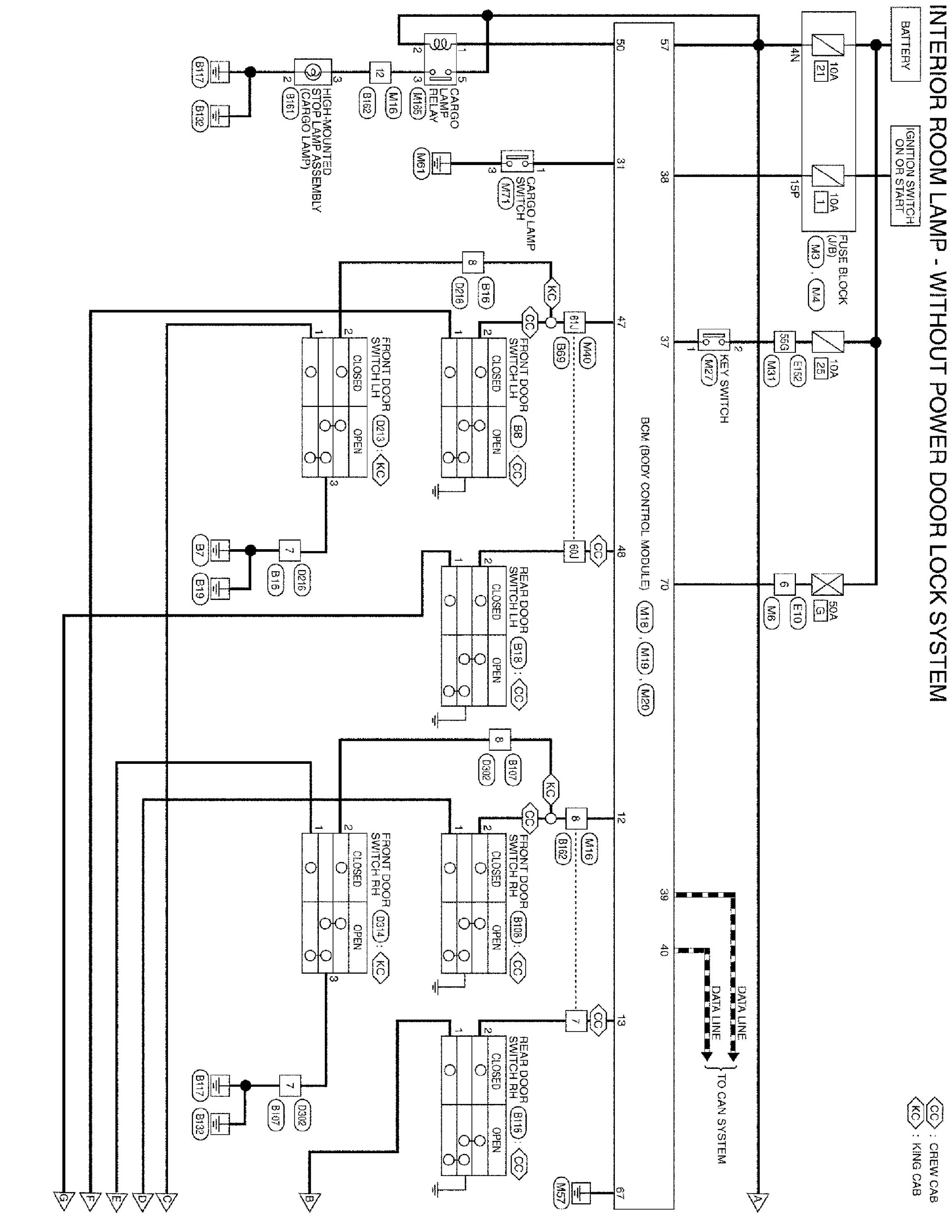

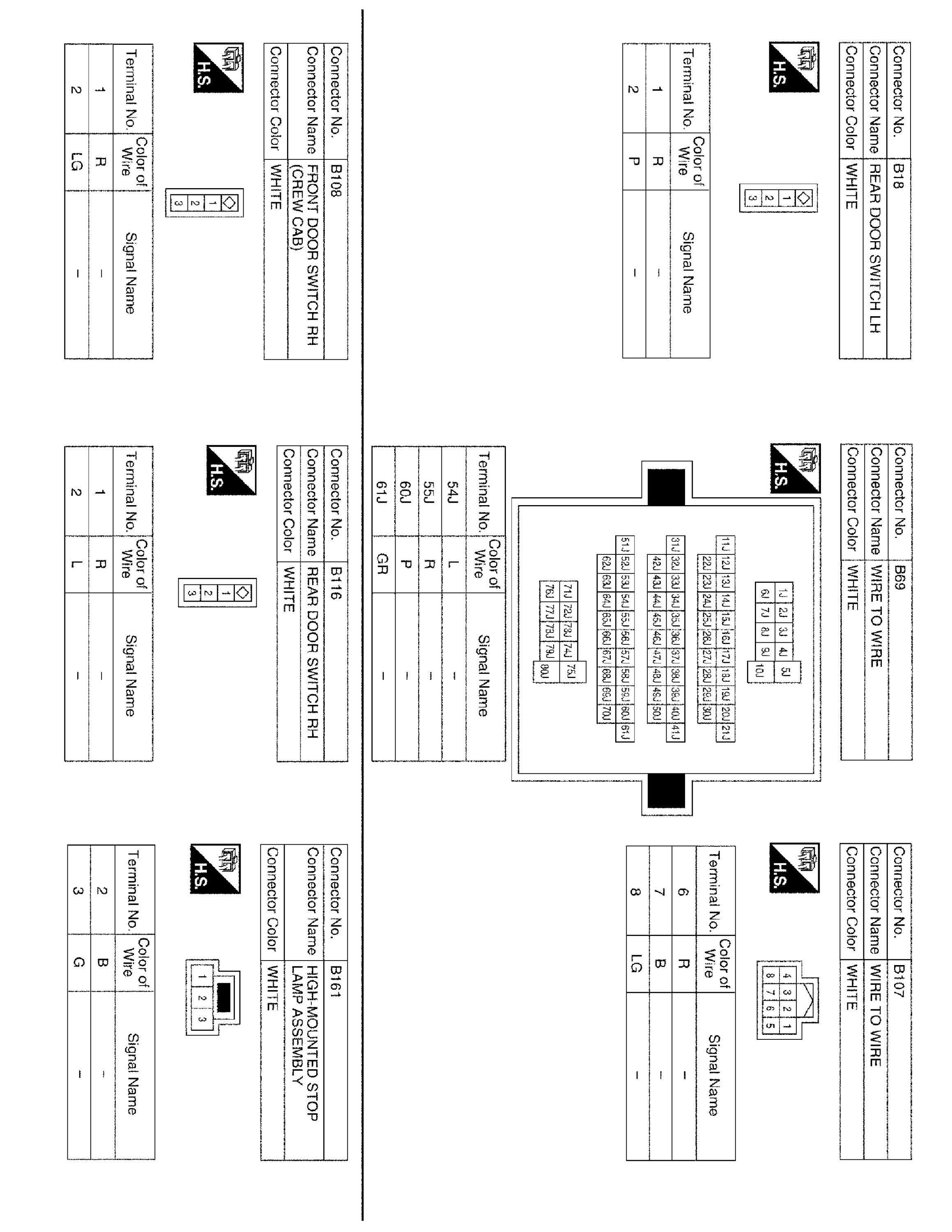

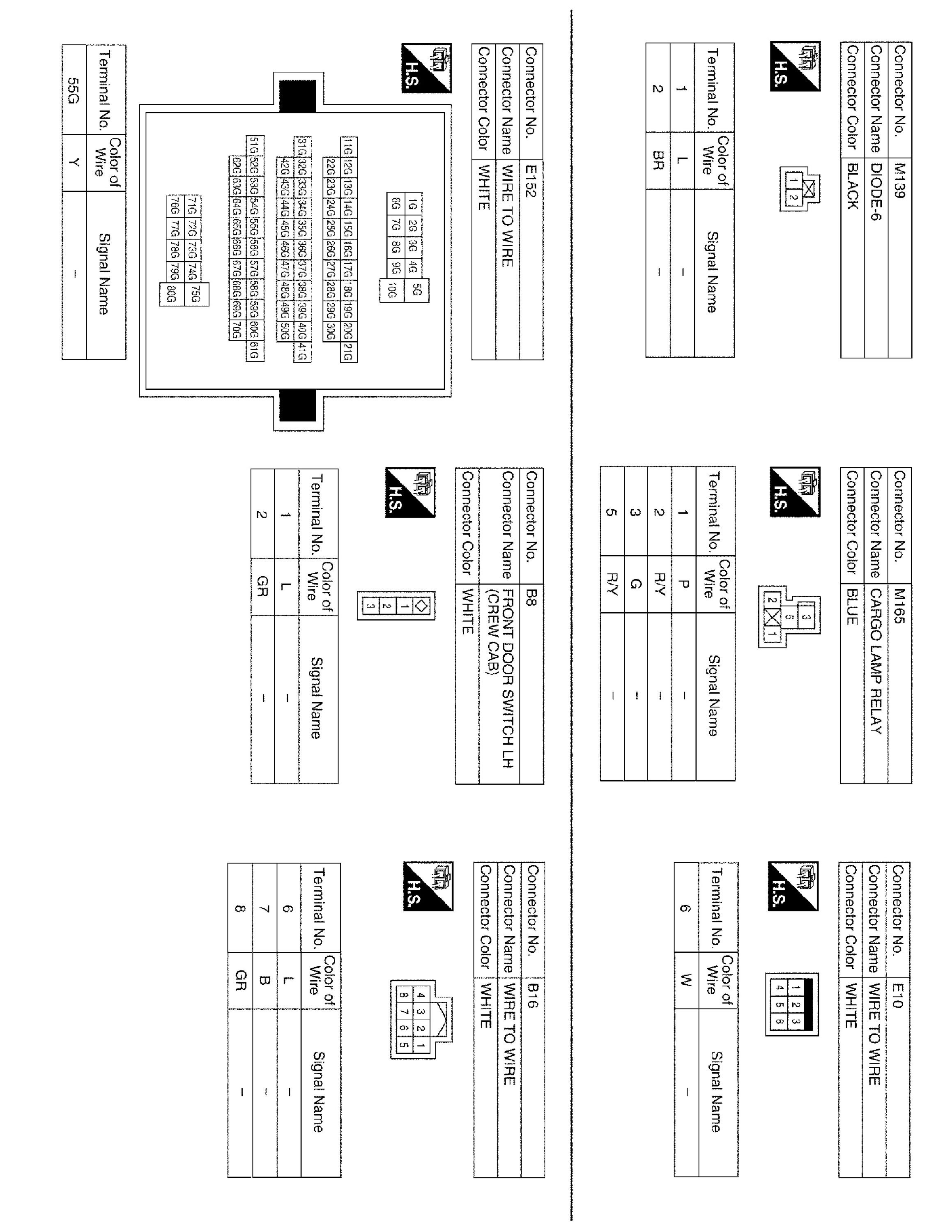

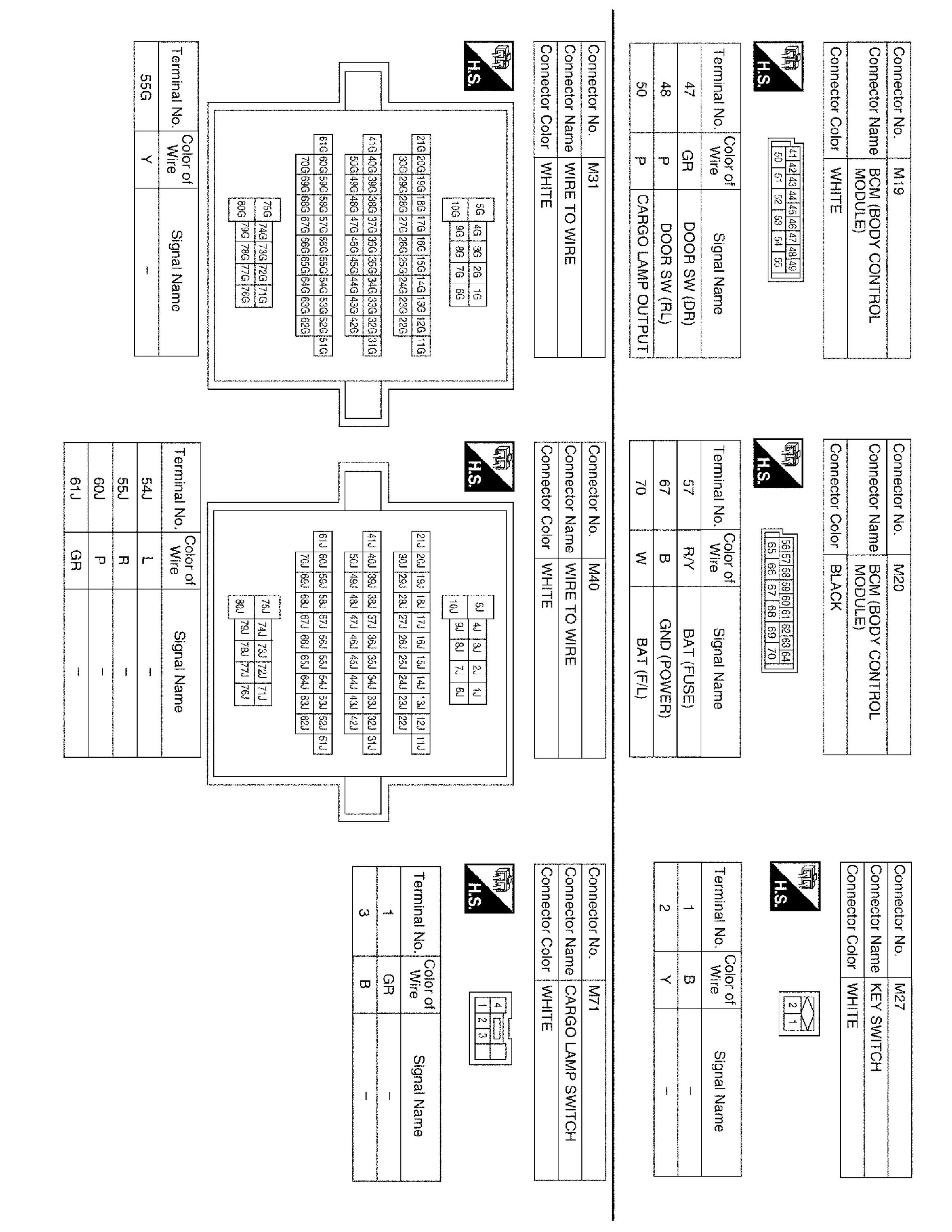

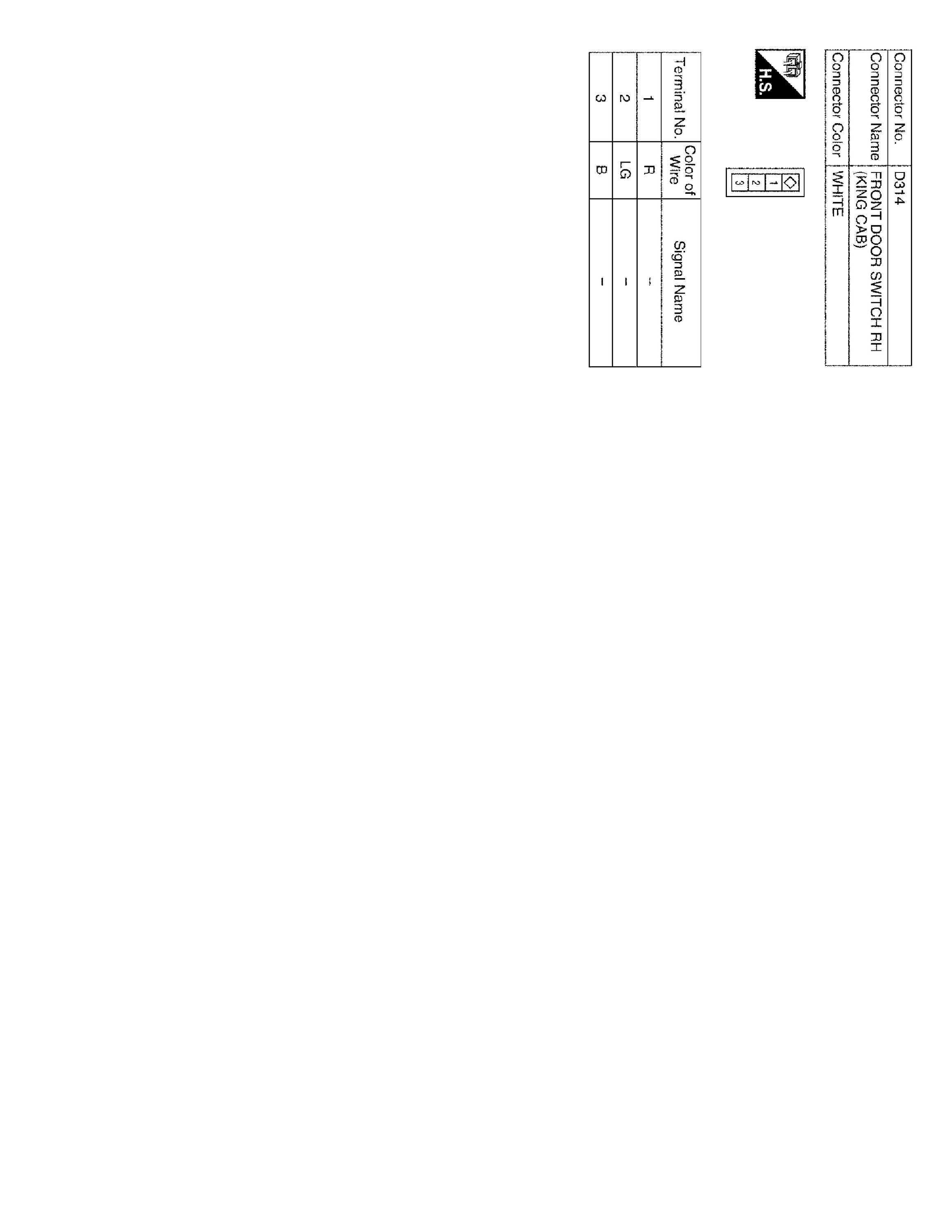

Interior Room Lamp: Wiring Diagram [Without Power Door Locks]

Interior Room Lamp: Wiring Diagram [without Power Door Locks]
