ECU Diagnosis Information Satellite Radio Tuner

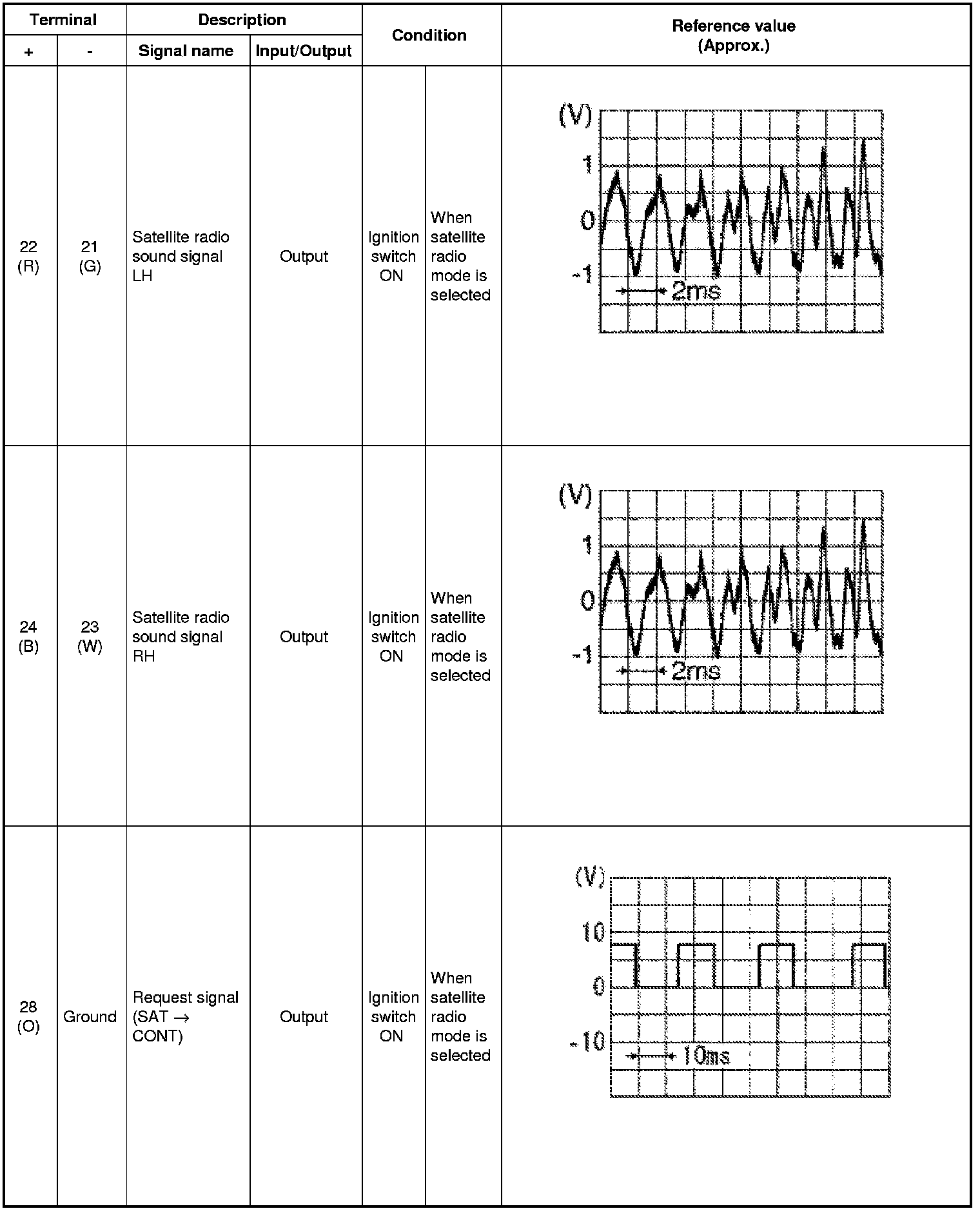

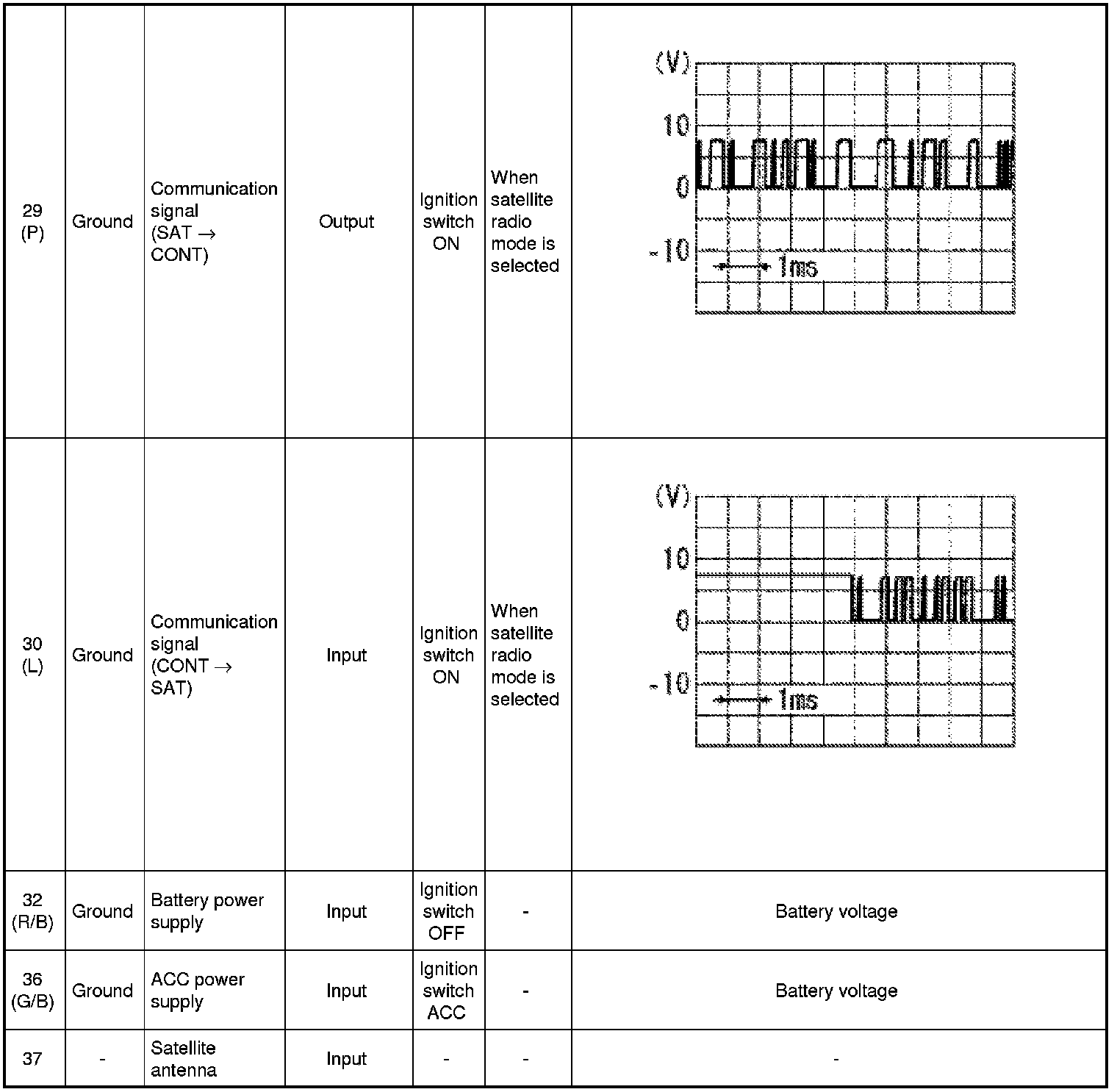

ECU Diagnosis Information: Satellite Radio Tuner





Physical Values
