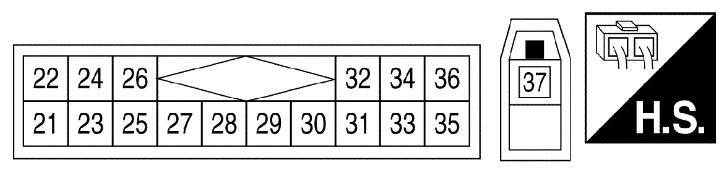

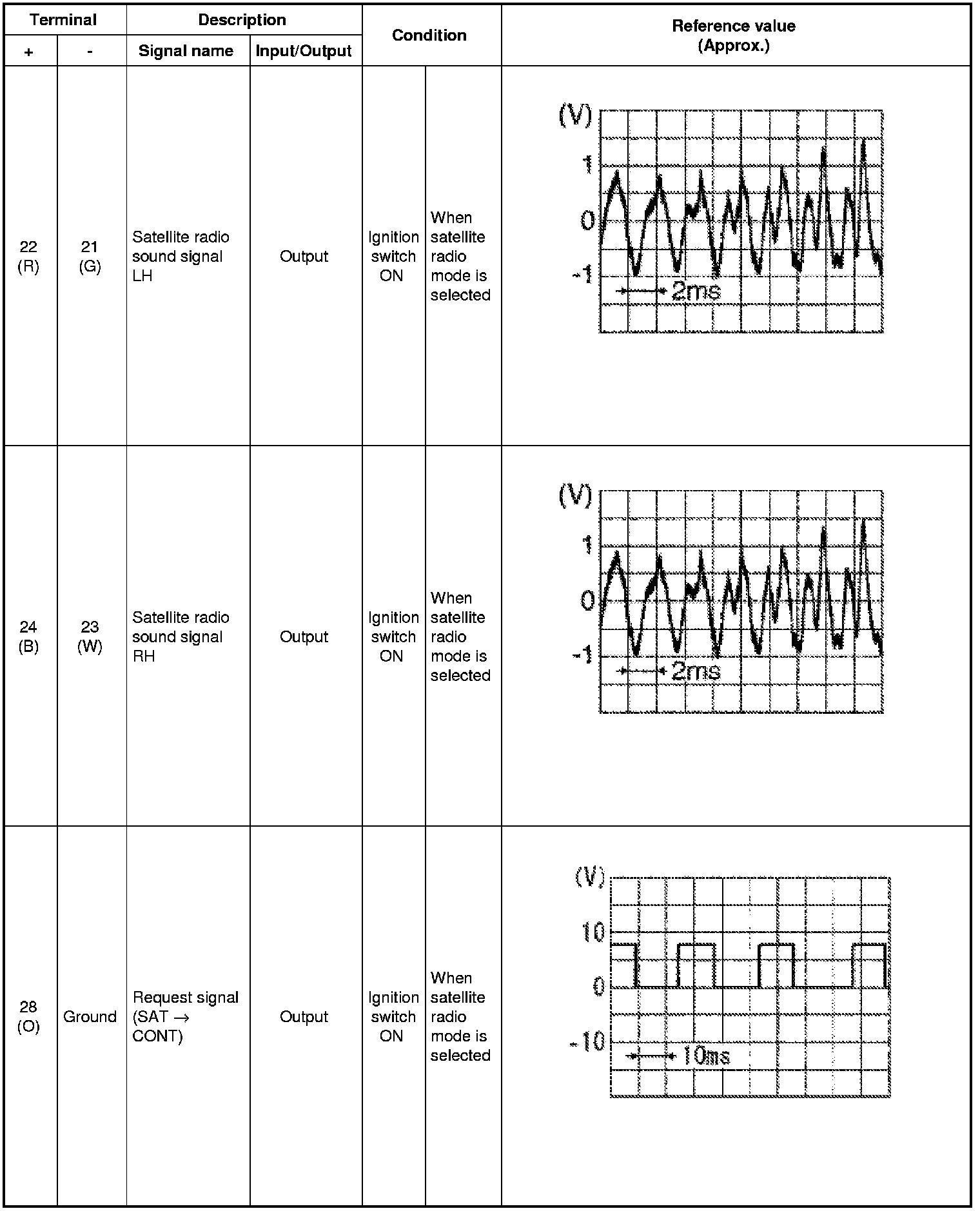

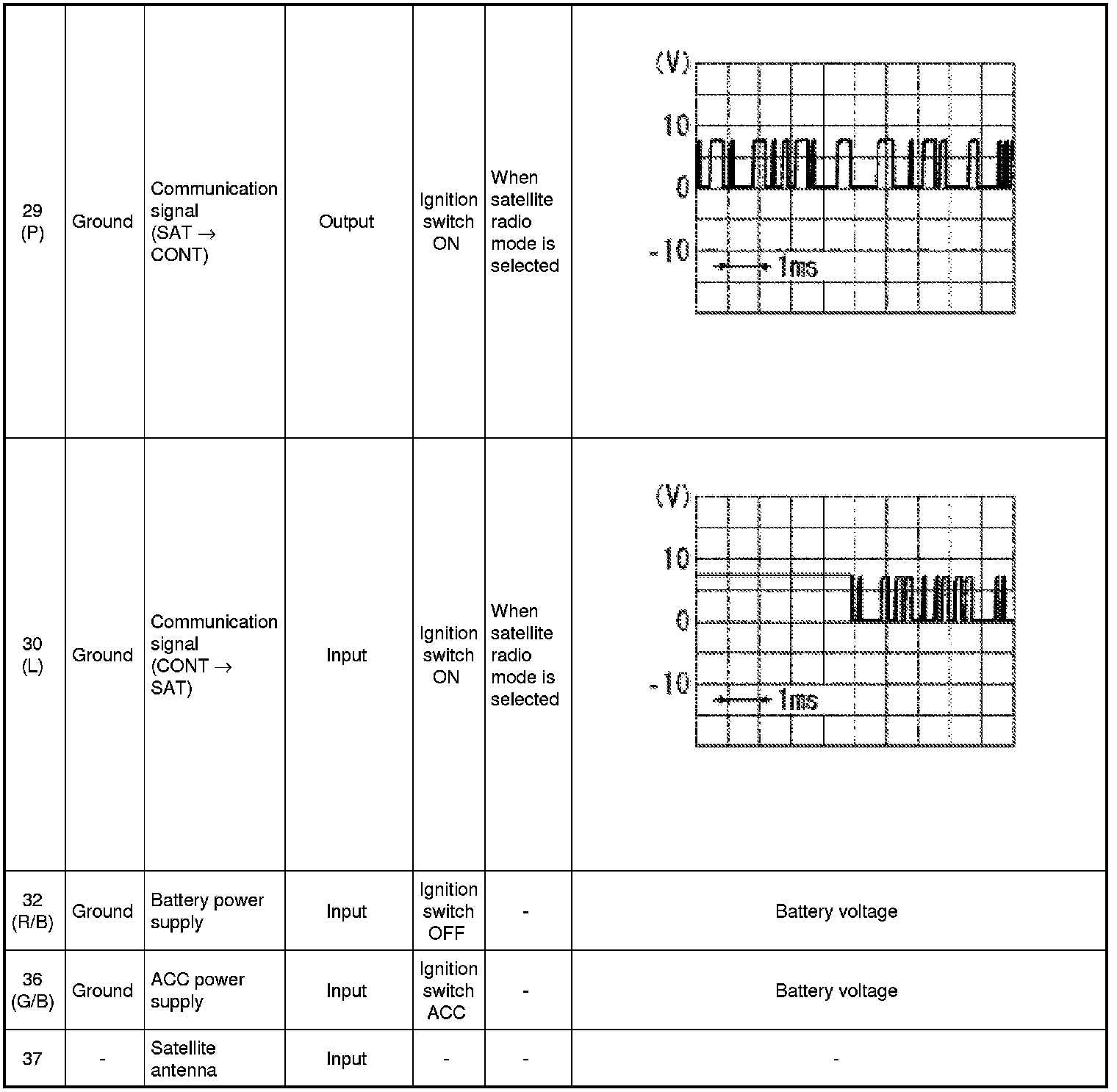

Home >> Suzuki >> 2012 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Mid (Crew Cab), Premium (King Cab) >> Satellite Radio Tuner Reference Value
