Rear Door Speaker

Rear Door Speaker: Removal and Installation

Removal

1) Remove the rear door finisher. Refer to [Door Finisher: Removal and Installation] Service and Repair.

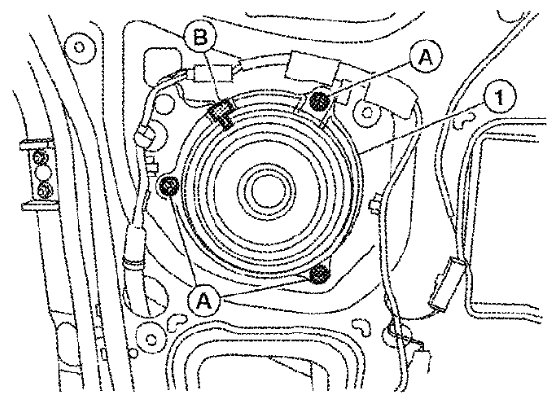

2) Remove the rear door speaker screws (A).





3) Remove the rear door speaker (1) and disconnect rear door speaker connector (B).

NOTE:
King cab shown, crew cab similar.

Installation

Installation is in the reverse order of removal.
