Premium Audio (Crew Cab)




Satellite Radio Tuner: Removal and Installation

Removal

1) Disconnect the battery negative terminal.
2) Disconnect the satellite radio tuner connectors.

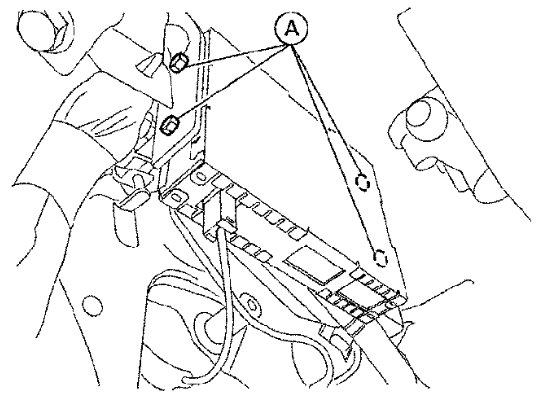

3) Remove satellite radio tuner screws (A), and remove satellite radio tuner.






Installation

Installation is in the reverse order of removal.
