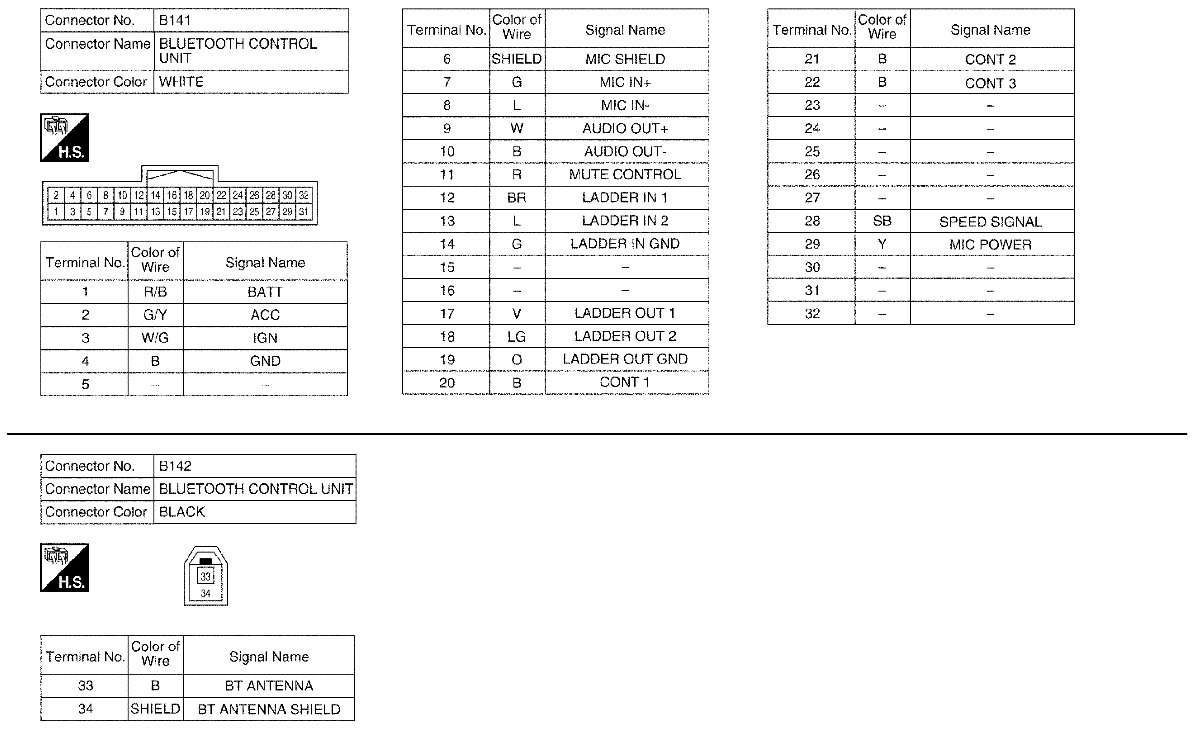

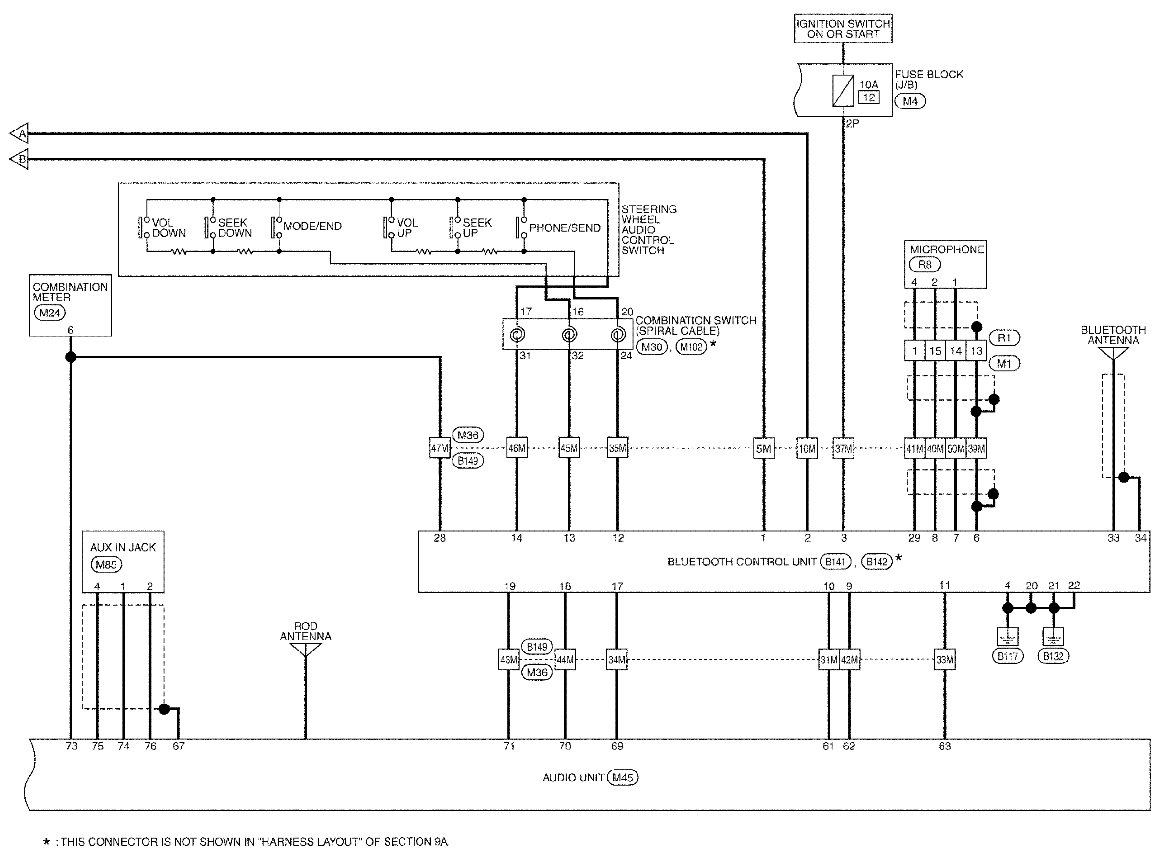

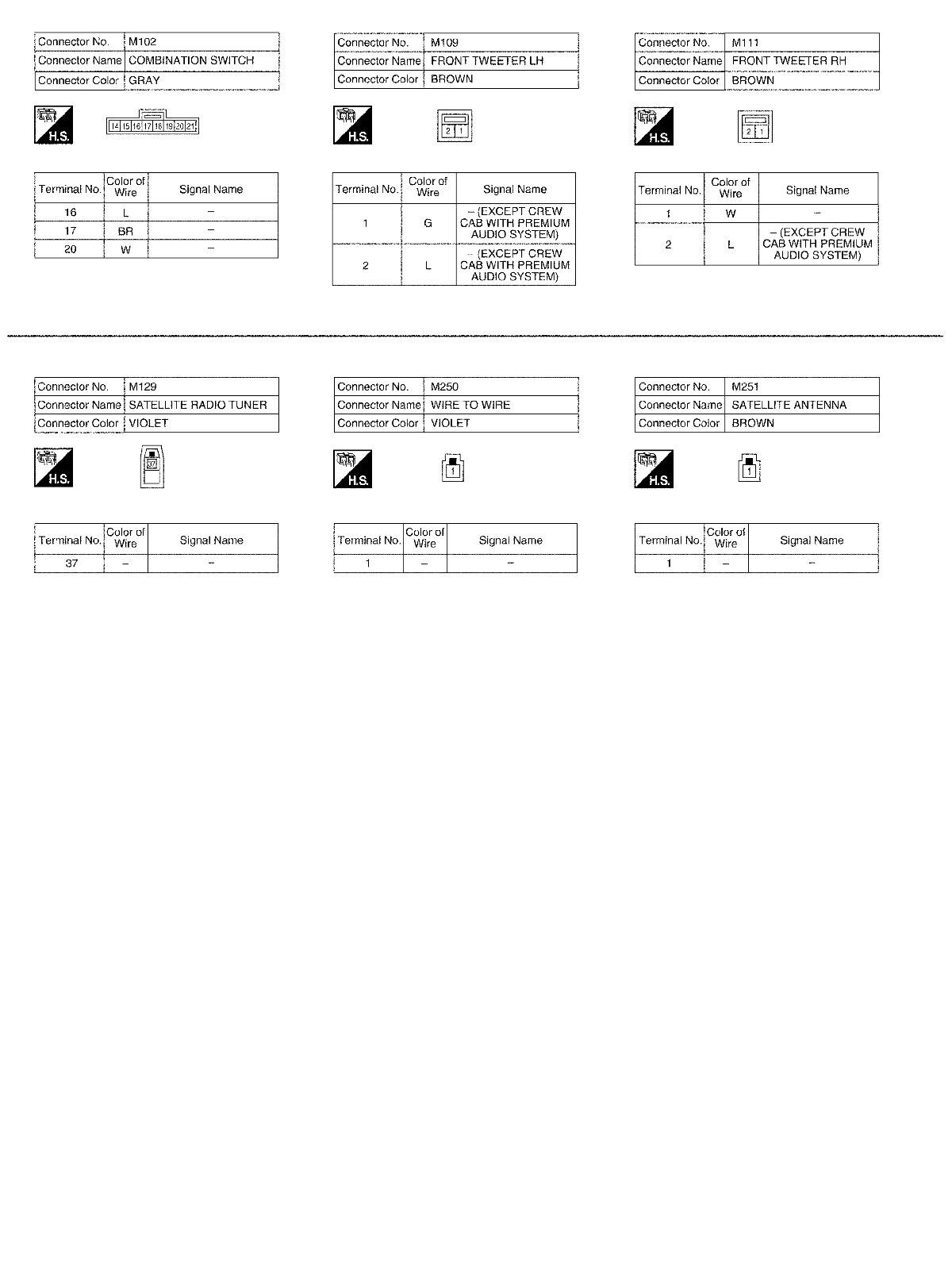

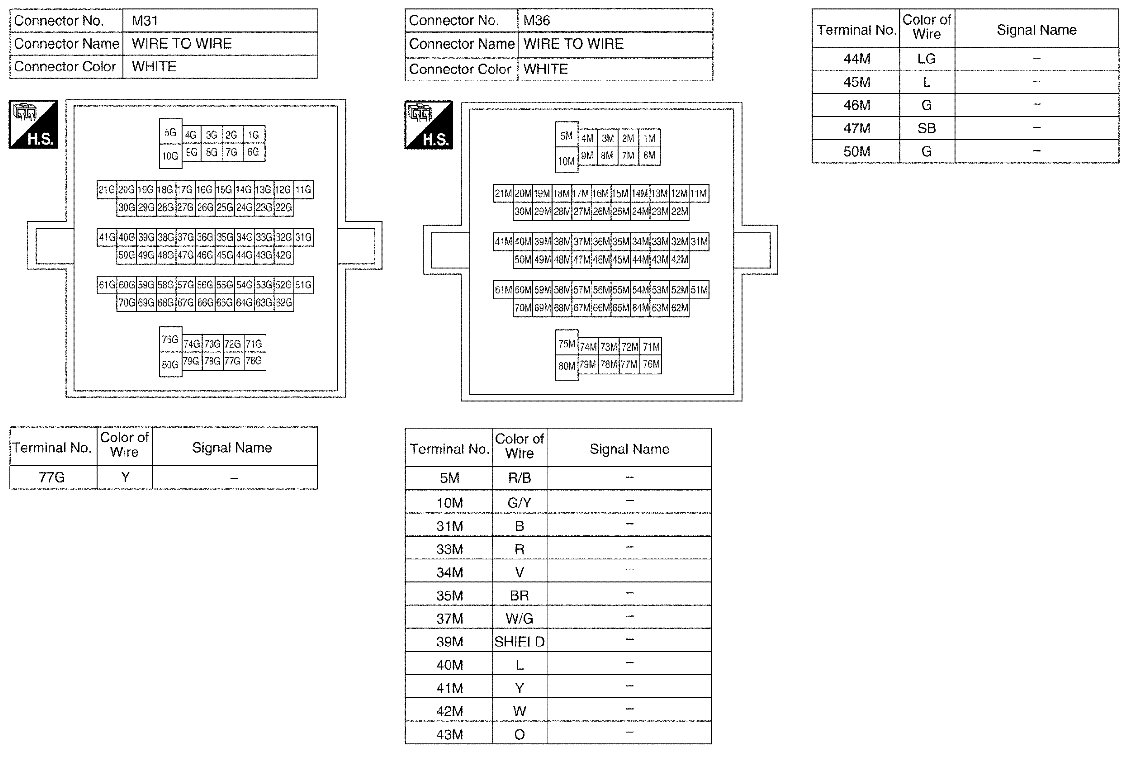

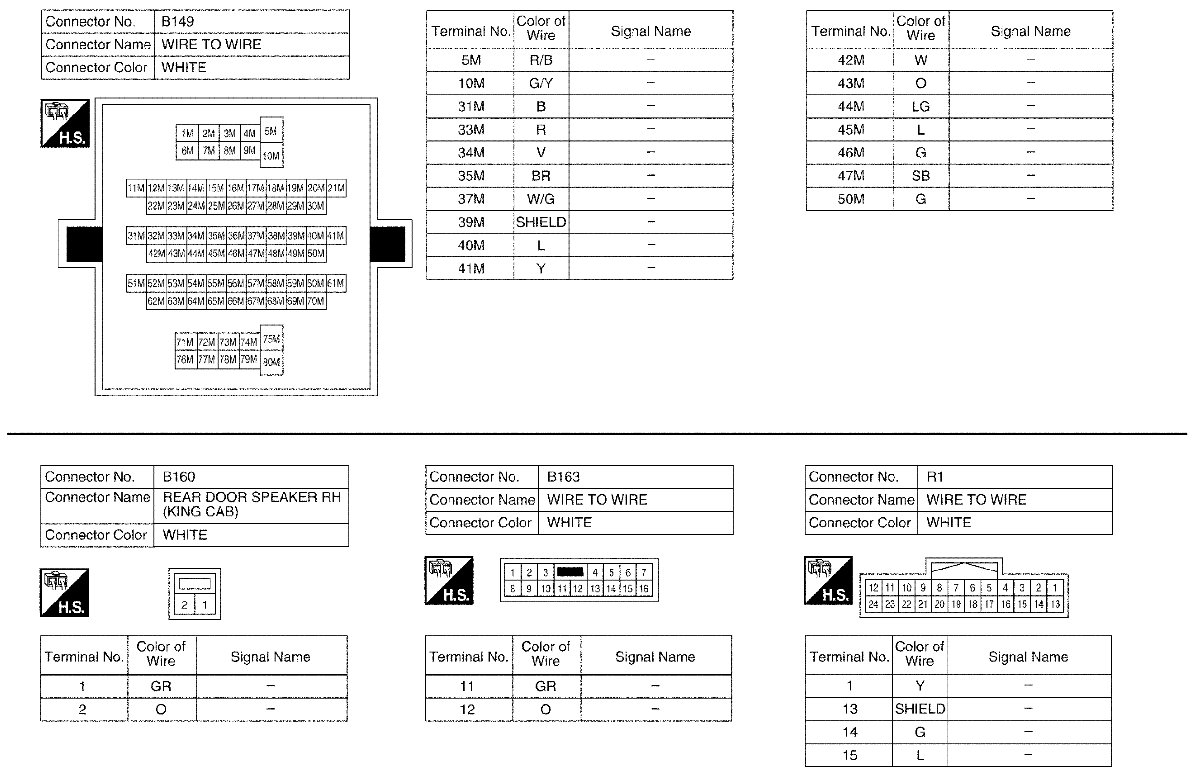

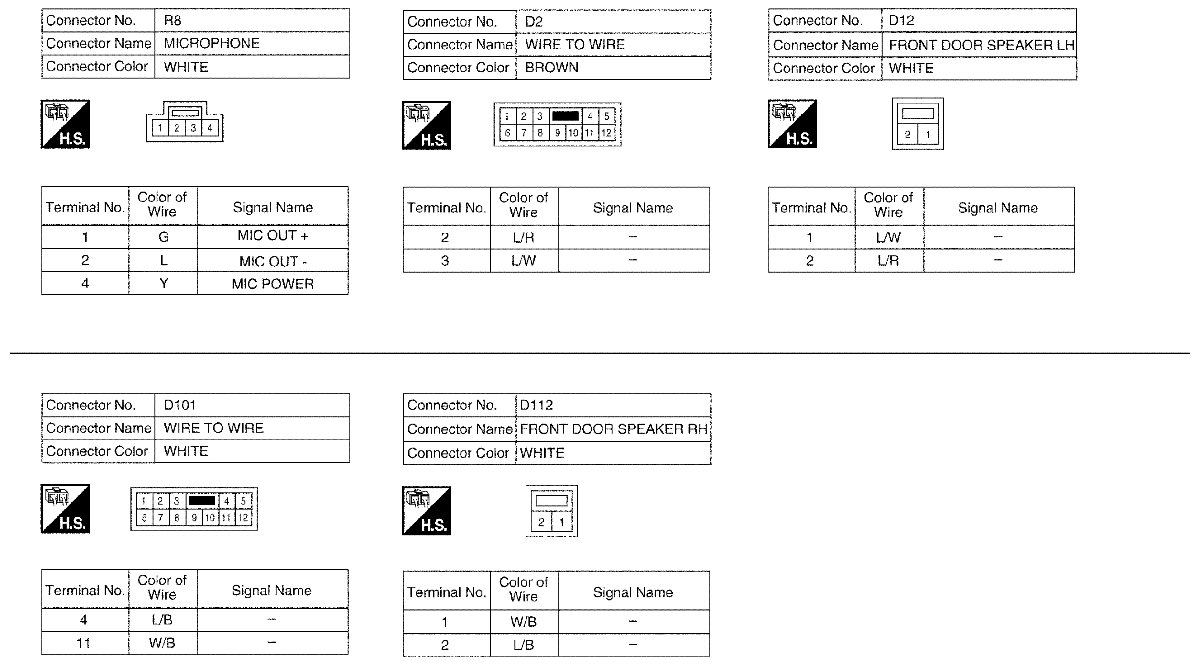

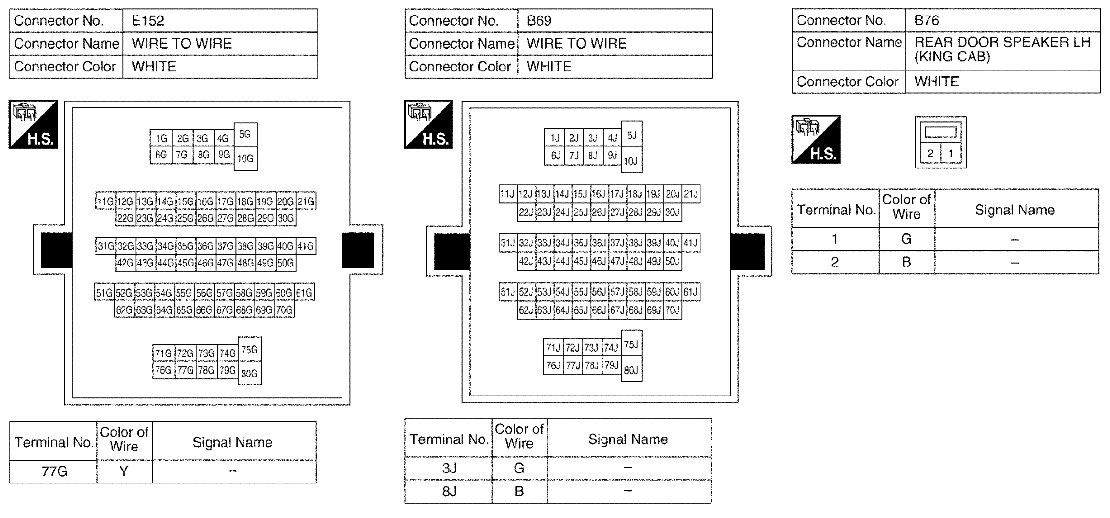

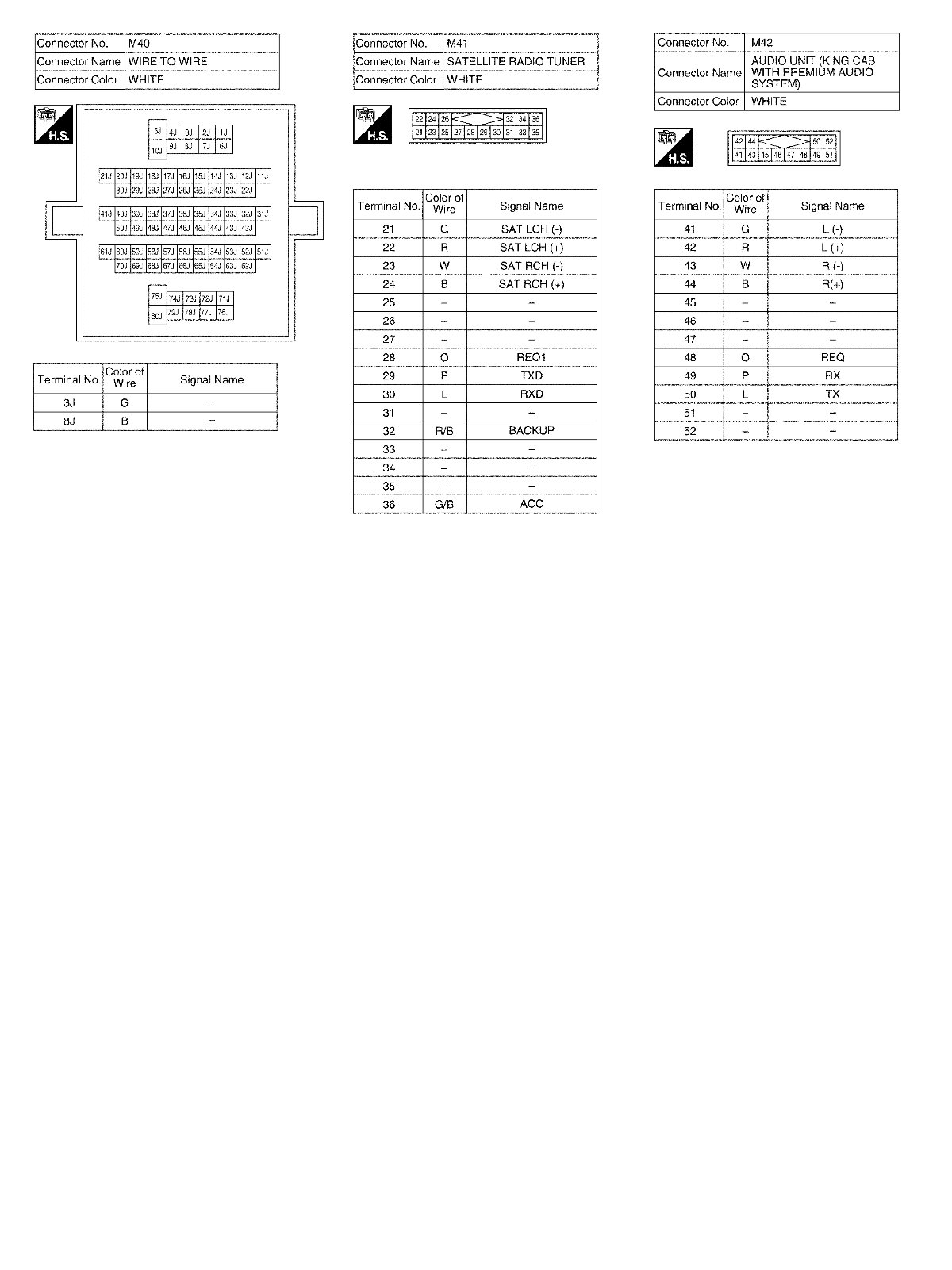

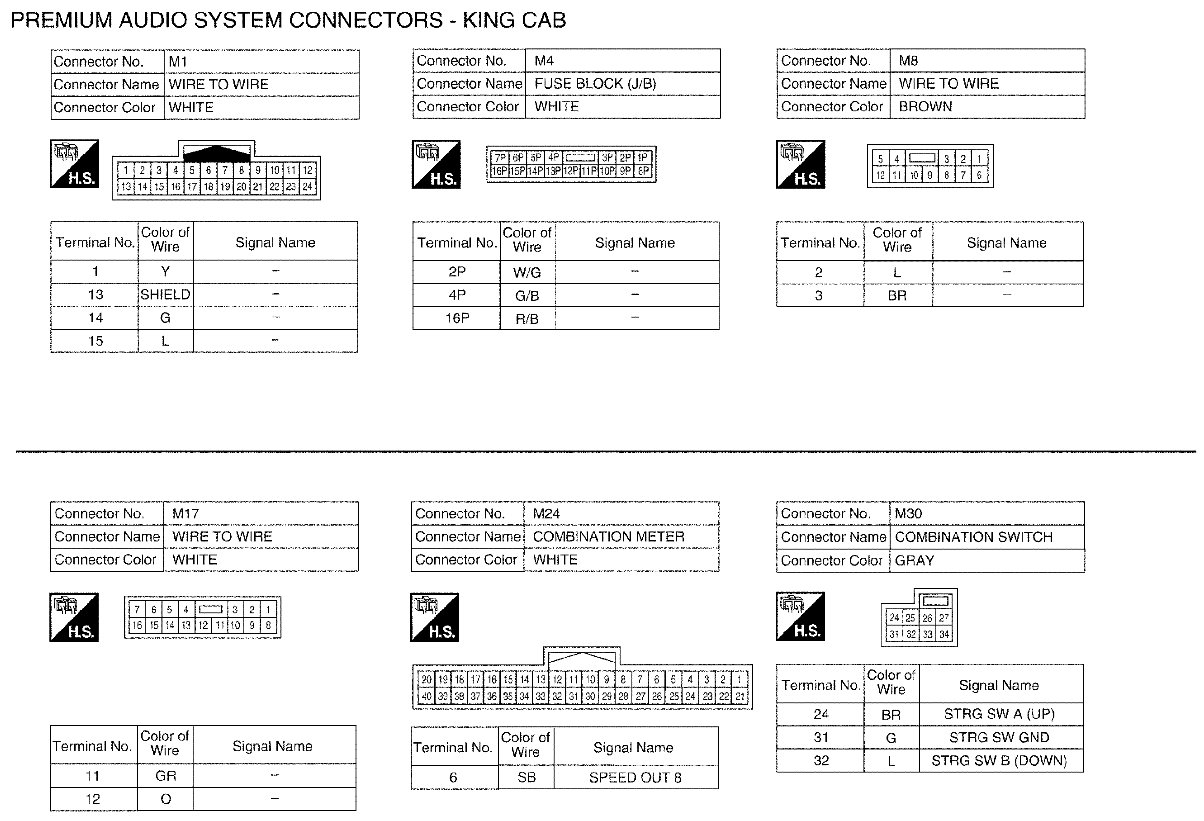

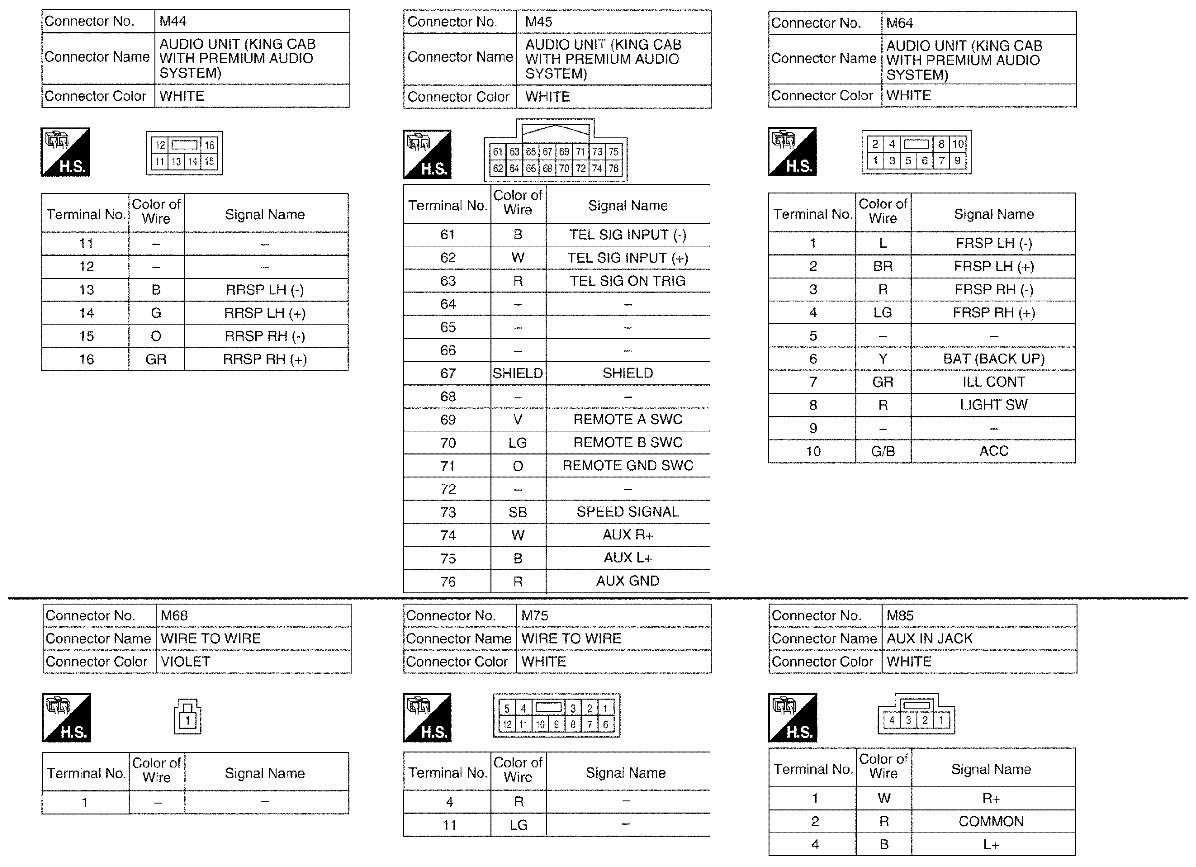

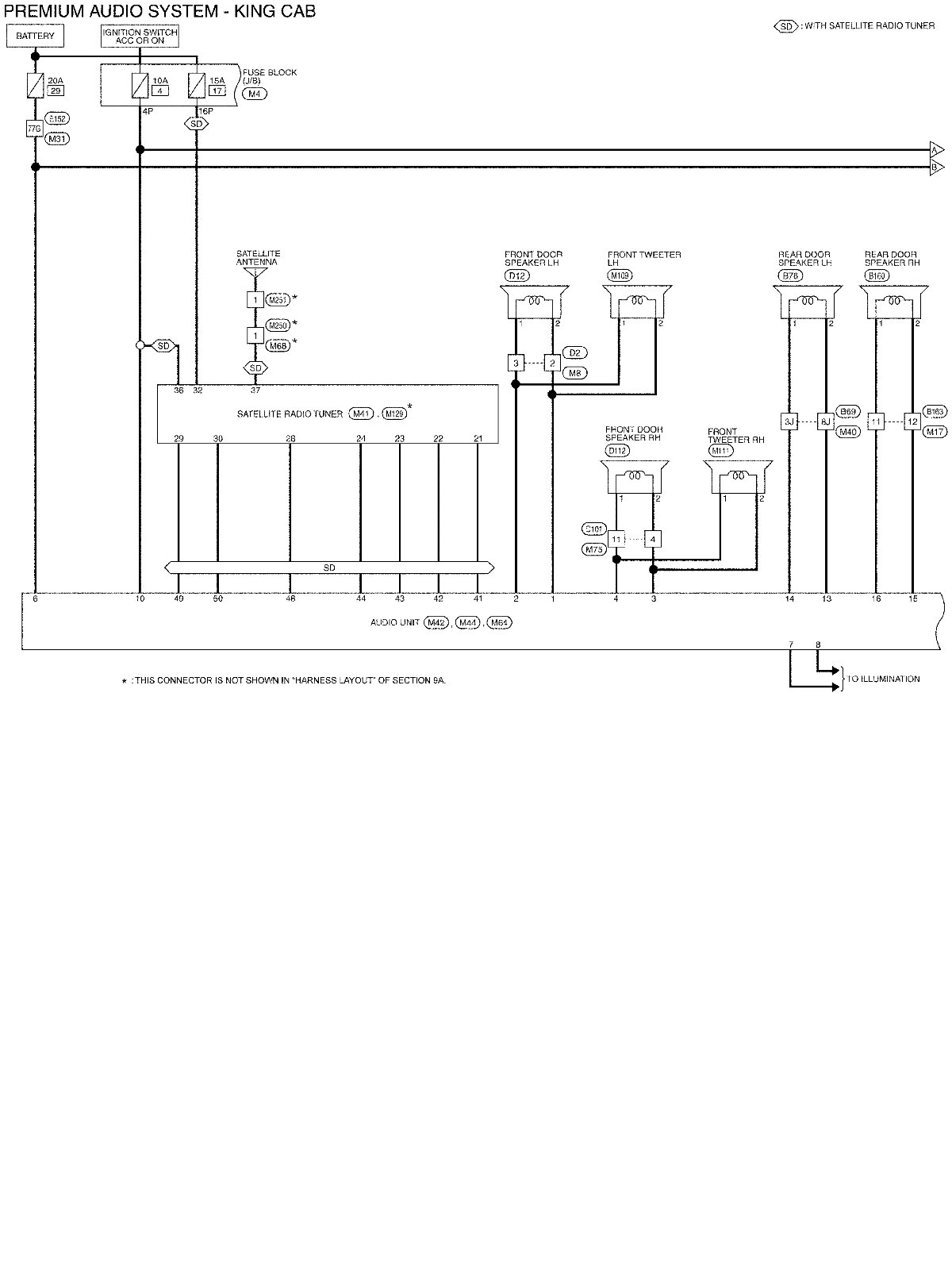

Home >> Suzuki >> 2012 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Premium Audio System [King Cab]
