Instrument Panel Cluster Trim Plate Cover Replacement

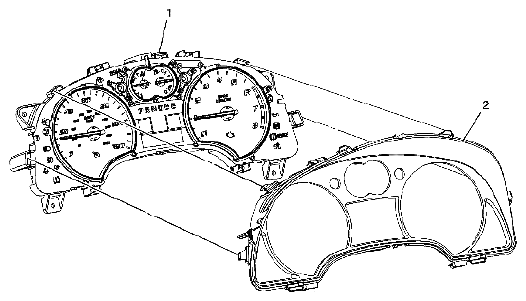

Fig 1: Identifying Instrument Panel Cluster Trim Plate Cover

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Cluster Assembly Refer to INSTRUMENT CLUSTER REPLACEMENT .
2	Instrument Panel Cluster Trim Plate Tip:  Unsnap the cluster trim plate from the cluster assembly.
