Liftgate Trim Panel Replacement (Lower)

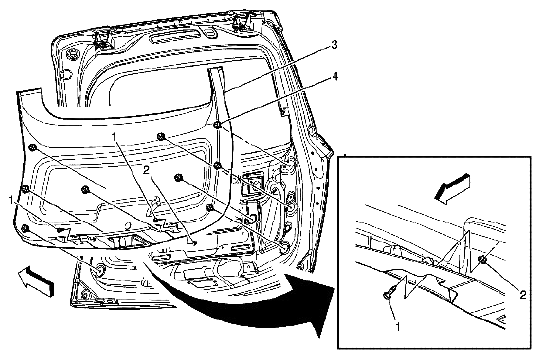

Fig 1: Identifying Liftgate Trim Panel Screw, Liftgate Trim Panel Nut And Liftgate Trim Panel Assembly
LIFTGATE TRIM PANEL COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Liftgate Trim Panel Screw (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 2 N.m (18 lb in) |
| 2 | Liftgate Trim Panel Nut (Qty: 2) Tightening torque 2 N.m (18 lb in) |
| 3 | Liftgate Trim Panel Assembly Tip: Pull away from liftgate to release retainers. |
| 4 | Liftgate Trim Panel Retainer (Qty: 9) |
