Liftgate Outside Handle Replacement

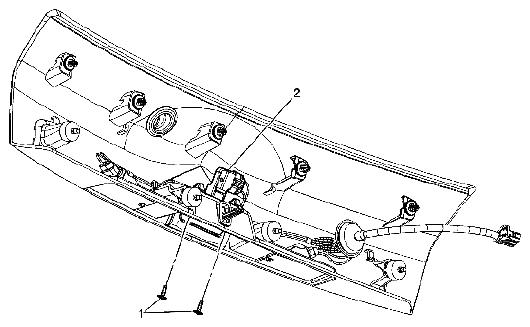

Fig 1: Identifying Liftgate Handle Screws And Liftgate Handle

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE OUTSIDE HANDLE COMPONENT REFERENCE

Callout	Component Name
Preliminary Procedure Remove the liftgate center applique. Refer to LIFTGATE CENTER APPLIQUE REPLACEMENT .
1	Liftgate Handle Screws (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 3 N.m (27 lb in)
2	Liftgate Handle Tip: Disconnect the electrical connector.
