Hood Primary Latch Replacement

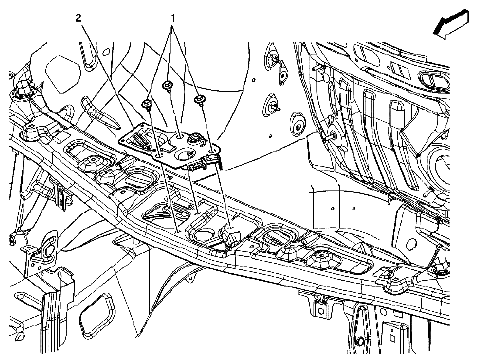

Fig 1: Identifying Primary Hood Latch Bolts And Primary Hood Latch

Courtesy of SUZUKI OF AMERICA CORP.

HOOD PRIMARY LATCH COMPONENT REFERENCE

Callout	Component Name
1	Primary Hood Latch Bolts (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tip: Mark the hood latch location to the support bracket with a grease pencil before removing the bolts. Tightening torque 10 N.m (89 lb in)
2	Primary Hood Latch Disconnect the hood latch release cable. Disconnect any electrical connectors if equipped.
