Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

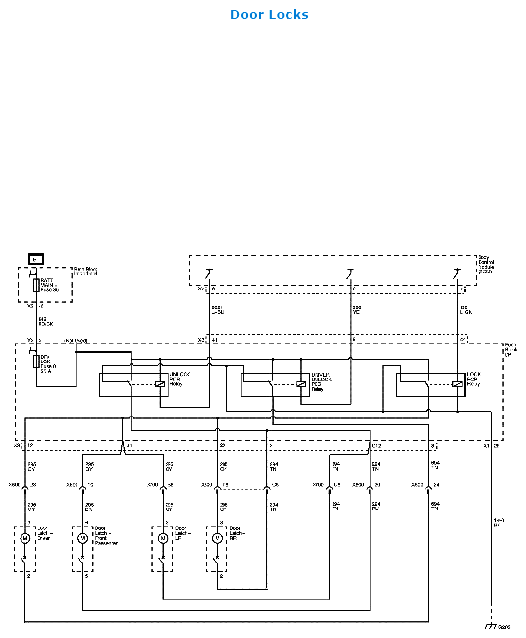

Fig 1: Door Lock/Indicator Schematic
Courtesy of SUZUKI OF AMERICA CORP.

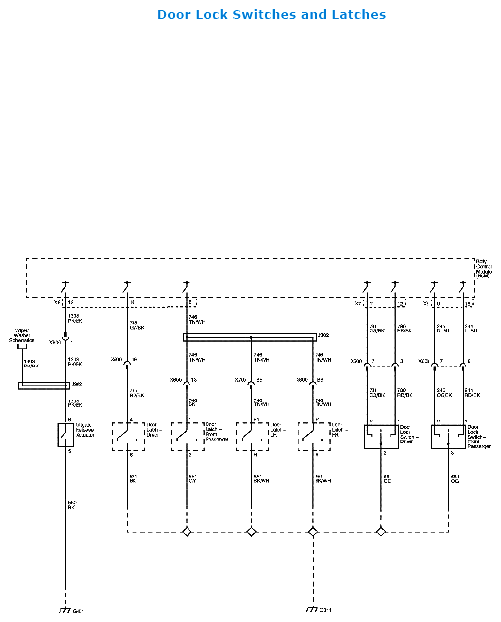

Fig 2: Door Lock Switches And Latches Schematic
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
