Windshield Wiper and Washer Switch Replacement

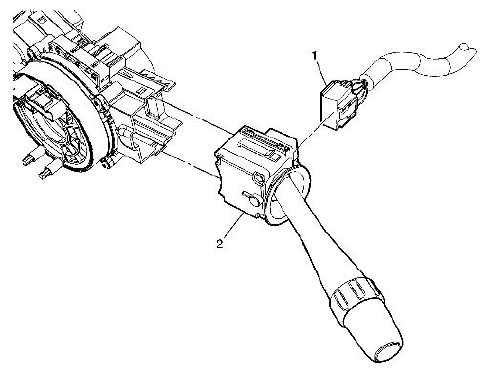

Fig 1: Identifying Windshield Wiper And Washer Switch Connector

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
1	Wipers/Washer Switch Electrical Connector
2	Wipers/Washer Switch Procedure  Depress the locking tabs to remove the wipers/washer switch.
