Instrument Panel Compartment Door Dampener Replacement

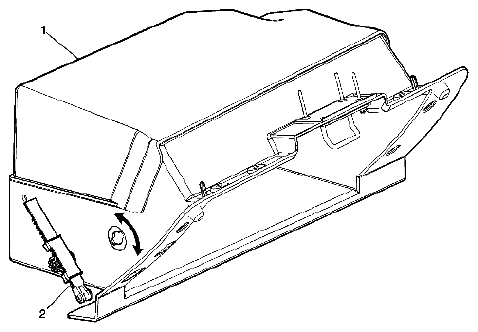

Fig 1: Identifying Instrument Panel Compartment Door Dampener

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Instrument Panel Compartment Assembly Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
2	Instrument Compartment Dampener Assembly Tip:  Rotate the Dampener assembly in order to remove from the Compartment assembly.
