Driver Knee Bolster Reinforcement Replacement

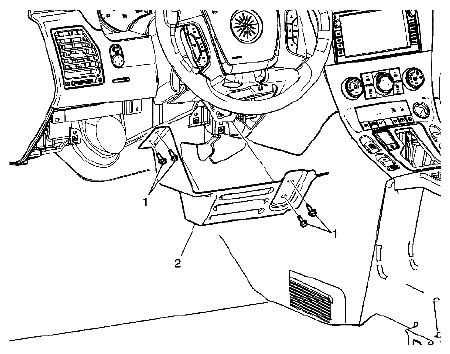

Fig 1: Identifying Driver Knee Bolster Reinforcement And Bolt

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedure  Remove the instrument panel knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
1	Drivers Knee Bolster Reinforcement Bolt (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque  9 N.m (80 lb in)
2	Drivers Knee Bolster Reinforcement
